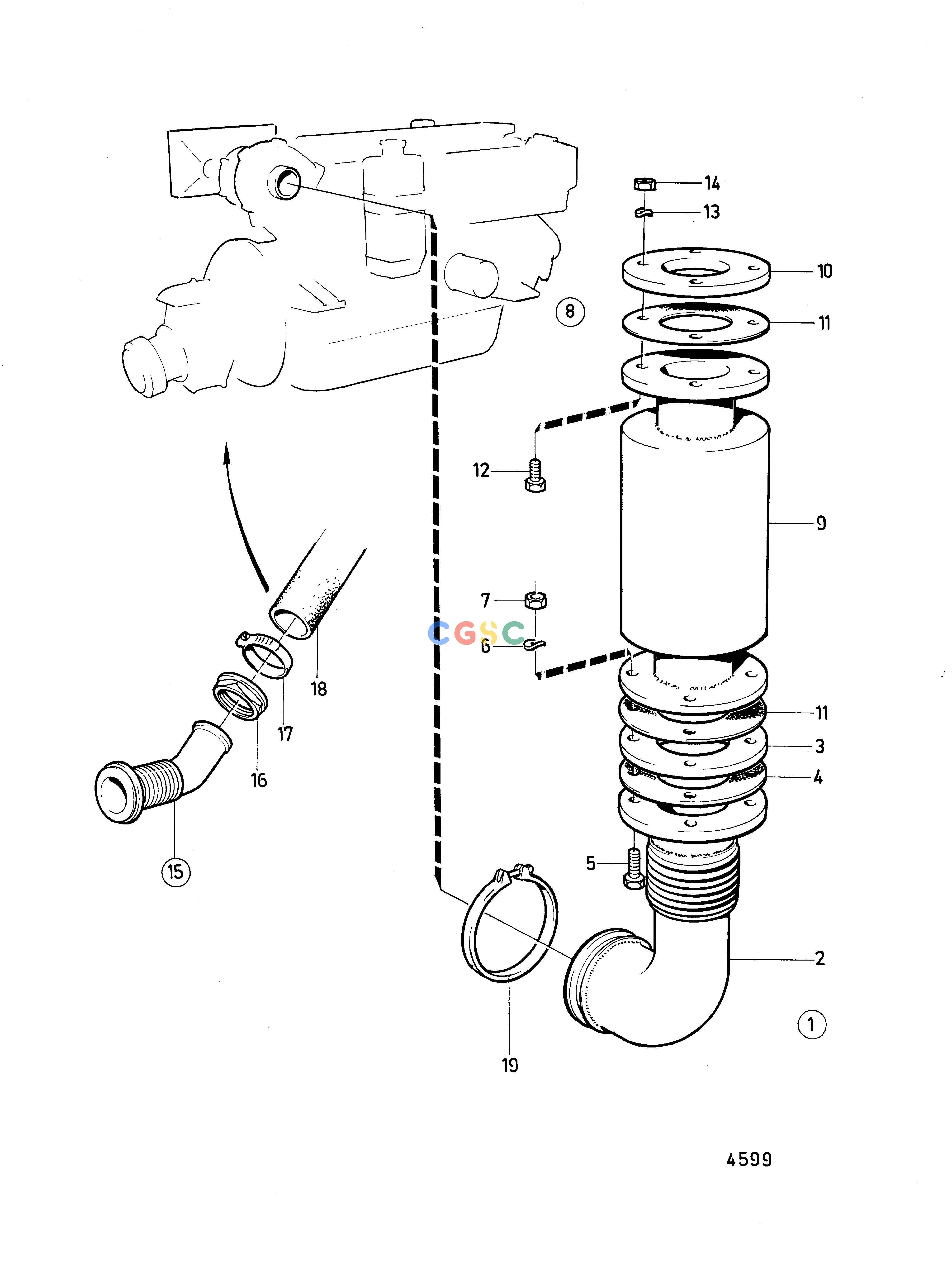

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentDry Exhaust LineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843305
|
[1] |
Exhaust pipe
|
|
| 2. |
842665
|
[1] |
Exhaust pipe elbow
|
|
| 3. |
843304
|
[1] |
Flange
|
|
| 4. |
843303
|
[1] |
Gasket
|
|
| 5. |
955366
|
[4] |
Hexagon screw
|
|
| 6. |
941912
|
[4] |
Spring washer
|
|
| 7. |
955785
|
[4] |
Hexagon nut
|
|
| 8. |
843313
|
[1] |
Silencer
|
|
| 9. |
807704
|
[1] |
Silencer
|
|
| 10. |
843304
|
[2] |
Flange
|
|
| 11. |
843303
|
[2] |
Gasket
|
|
| 12. |
955591
|
[8] |
Hexagon screw
|
|
| 13. |
941912
|
[8] |
Spring washer
|
|
| 14. |
955829
|
[8] |
Hexagon nut
|
|
| 15. |
828304
|
[1] |
Hull fitting
|
|
| 16. |
836879
|
[1] |
Nut
|
|
| 17. |
853548
|
[2] |
Hose clamp
|
(961668)
|
| 18. |
944386
|
[1] |
Rubber hose
|
|
| 19. |
842993
|
[1] |
V-clamp
|
See group 2B
|
