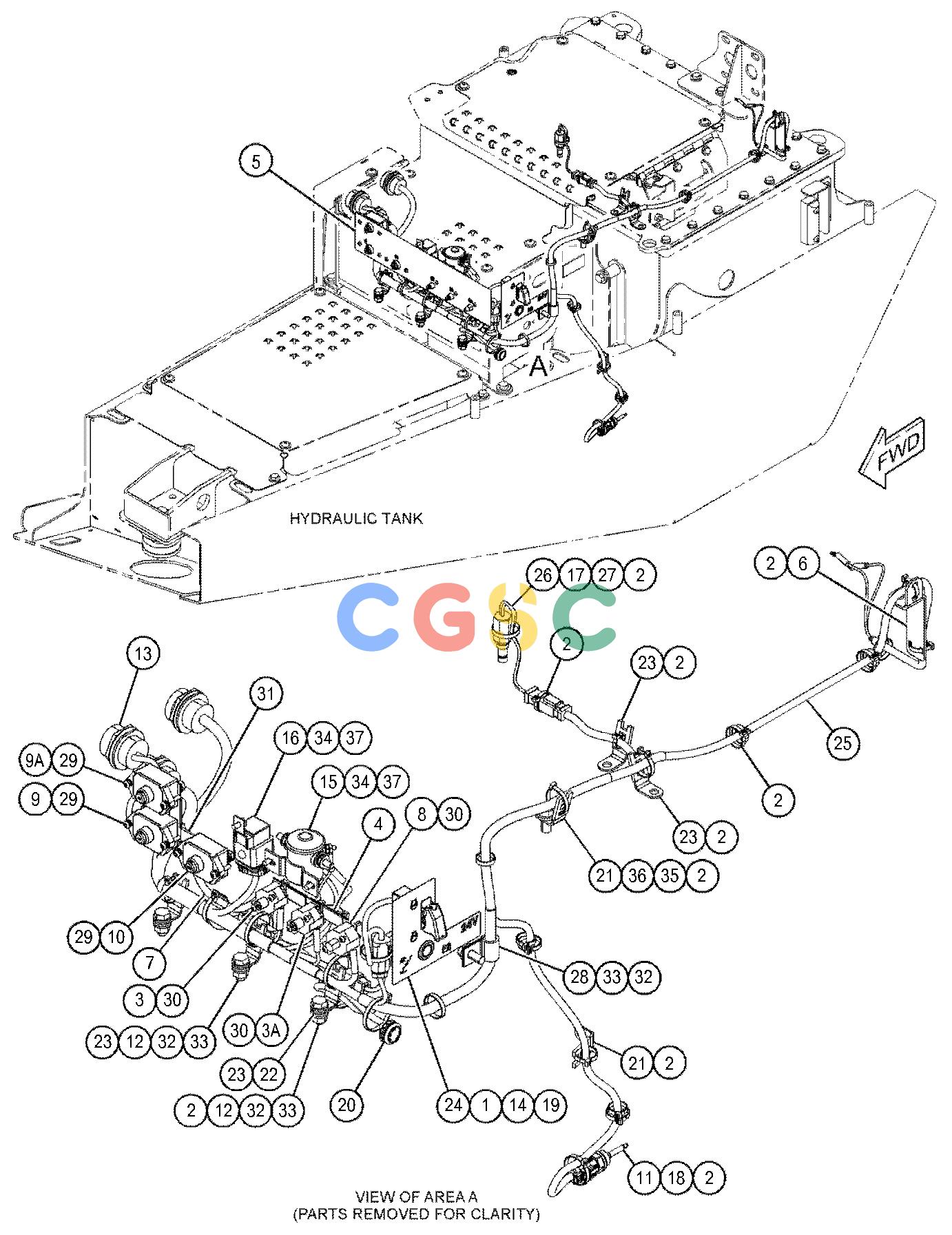

| 1. | 3E-5169 | [1] | GUARD-SWITCH | |
| 2. | 3S-2093 | [29] | STRAP-CABLE | |
| 3. | 288-3687 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(BLOWER FAN) | |
| 3A. | 288-3687 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(ENGINE ECM) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 6V-8378 | [2] | NUT(10-32-THD) | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 4. | 354-1236 | [2] | CLIP(STRAP) | |
| 5. | 388-8644 | [1] | PLATE-IDENTIFICATION(CIRCUIT BREAKER) | |
| 6. | 415-5602 | [1] | PLATE | |
| 7. | 450-3181 | [1] | WIRE AS(BREAKER) | |
| 8. | 139-4724 | [1] | CIRCUIT BREAKER AS(30-AMPERE)(DIESEL EXHAUST FLUID) | |
| | 6V-8378 | [2] | NUT(10-32-THD) | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 9. | 171-2205 | [1] | CIRCUIT BREAKER AS(40-AMPERE)(ACCESSORY POWER 1) | |
| 9A. | 171-2205 | [1] | CIRCUIT BREAKER AS(40-AMPERE)(ACCESSORY POWER 2) | |
| 10. | 216-4970 | [1] | CIRCUIT BREAKER AS(120-AMPERE)(BATTERY) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 1H-3244 | [2] | LOCKWASHER | |
| | 4E-5724 | [2] | WASHER(7X12X1-MM THK) | |
| | 8T-0122 | [2] | NUT-FULL(1/4-28-THD) | |
| 11. | 256-6453 | [1] | SENSOR-TEMPERATURE(2-PIN)(HYDRAULIC OIL) | |
| 12. | 344-5675M | [3] | NUT(M10X1.5-THD)(HEX) | |
| 13. | 353-2234 | [1] | WIRE AS(10-GA, RED)(BREAKER) | |
| 14. | 353-4515 | [1] | SWITCH GP-TOGGLE(ENGINE SHUTOFF) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 3E-3371 | [1] | WEDGE-RECEPTACLE LOCK(3-PIN) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 15. | 398-0940Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(START RELAY) | |
| 16. | 3E-5239 | [1] | RELAY AS(24-VOLT)(CLEAN EMISSIONS MODULE FAN) | |
| 17. | 3J-1907 | [1] | SEAL-O-RING | |
| 18. | 3K-0360 | [1] | SEAL-O-RING | |
| 19. | 441-5066 | [1] | SWITCH AS-PUSH BUTTON(ILLUMINATED) | |
| | 283-8106 | [4] | SOCKET-CONNECTOR(20-GA) | |
| | | | -OR- |
| | 374-8372 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| 20. | 456-0644 | [1] | LAMP GP-INDICATOR(24-VOLT, AMBER)(LED) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 21. | 4P-7429 | [2] | CLIP(LADDER) | |
| 22. | 4P-7581 | [1] | CLIP(LADDER) | |
| 23. | 4P-8134 | [5] | CLIP(LADDER) | |
| 24. | 501-1506 | [1] | PLATE(DISCONNECT) | |
| 25. | 502-9657Y | [1] | HARNESS AS-PANEL | |
| 26. | 524-4439 | [1] | SWITCH AS-PRESSURE(DIFFERENTIAL) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(14-CM) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5F-9144 | [1] | SEAL-O-RING | |
| 27. | 5F-9144 | [1] | SEAL-O-RING | |
| 28. | 3E-6909 | [1] | CLIP(LOOP)(LOOP) | |
| 29. | 7U-4891 | [6] | SCREW(10-32X1-IN)(BUTTON HEAD) | |
| 30. | 7U-4892 | [6] | SCREW(8-32X0.75-IN)(BUTTON HEAD) | |
| 31. | 7V-9275 | [2] | STRAP | |
| 32. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM)(HEX HEAD) | |
| 34. | 8T-4171M | [3] | BOLT(M6X1X12-MM)(HEX HEAD) | |
| 35. | 8T-4192M | [1] | BOLT(M12X1.75X25-MM)(HEX HEAD) | |
| 36. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 37. | 9X-8256 | [3] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
