神钢零件查询(BOOM) - ATTACHMENT, (2 PIECE) - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/12) (01-002) - VALVE INSTAL, SEPARATE, SIDE DIGGING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
654 次

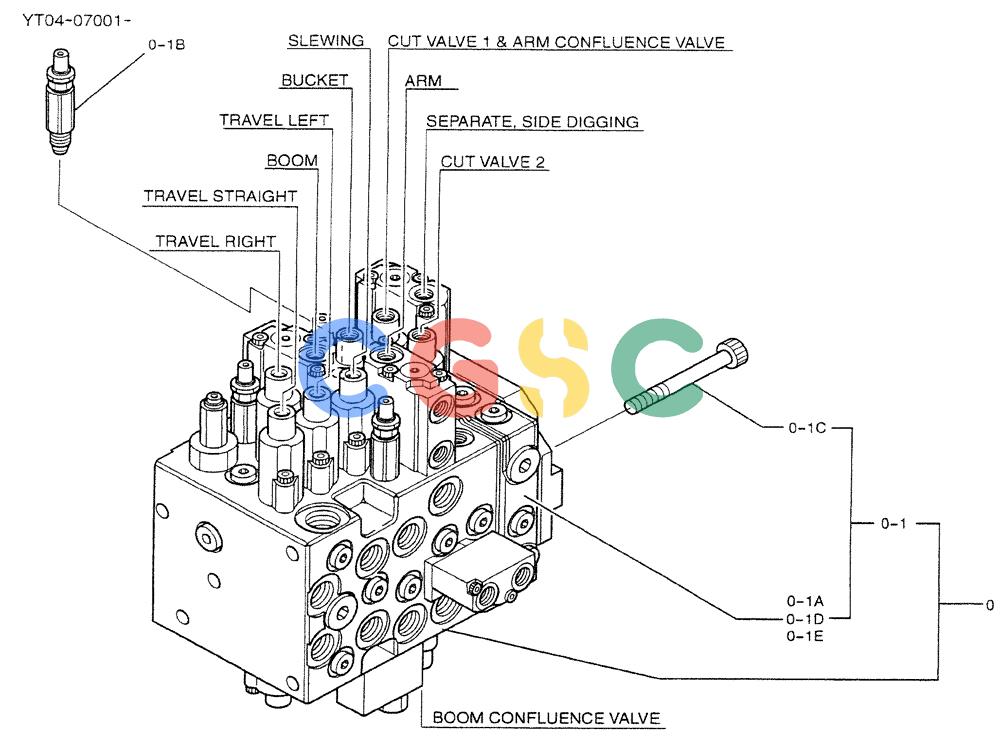

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YT30V00014F4 | [1] | CONTROL VALVE | KOBASSY. |
| 0-1. | YT30V00011F1 | [1] | CONTROL VALVE | KOBASSY. |
| 0-1A. | YT30V00018F1 | [1] | CONTROL VALVE | KOBASSY., (ADD-ON) |
| 0-1B. | YT22V00004F1 | [1] | VALVE | KOBRELIEF |
| 0-1C. | ZS23C12065 | [4] | SCREW,Hex Socket Head, M12 x 65mm | KOBM12x1.75x60mm |
| 0-1D. | YN01V00004S006 | [1] | O-RING | KOB |
| 0-1E. | ZD12P02200 | [4] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
