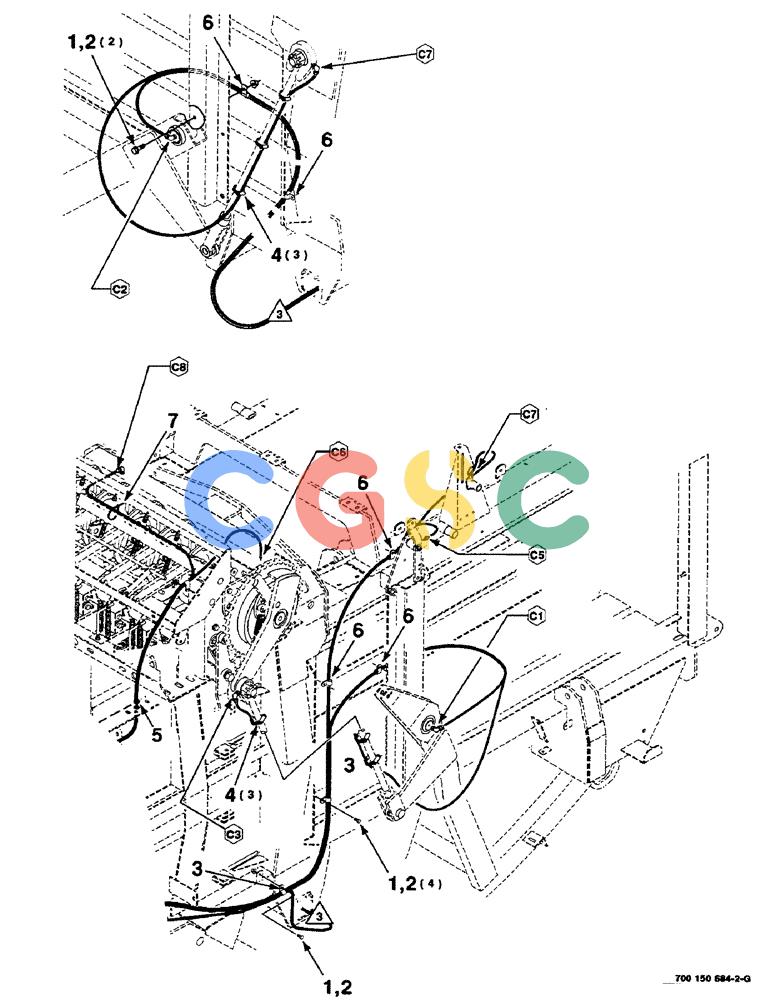

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (06-56) - AUTO LUBE ASSEMBLY, (CON'T) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-612
|
[7] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187204, 86500692
|
| 2. |
232-5316
|
[7] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 3. |
515-23190
|
[2] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Line 3/4", Insul, 3/8" Bolt Superseded by part number: 86624005
|
| 4. |
214-1412
|
[6] |
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
|
CAS
CLAMP, HOSE, #12, 0.69/1.25 Type F Worm Superseded by part number: 87779385, 86625021
|
| 5. |
248-13101
|
[1] |
GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut
|
CAS
|
| 6. |
515-25127
|
[5] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 7. |
L18337
|
[1] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
