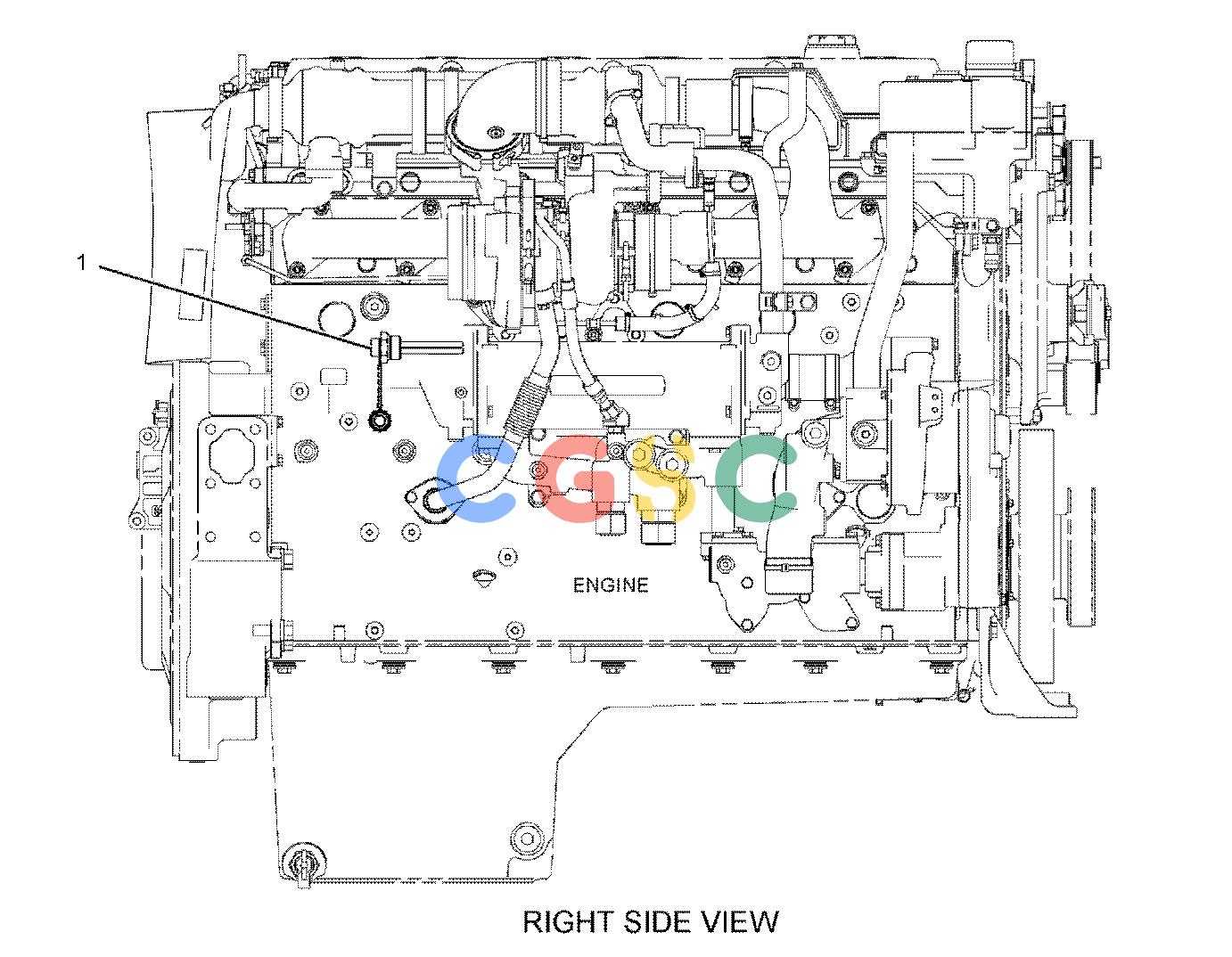

卡特零件查询（730） 511-2016: HARNESS AS-SENSOR
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-3401 | [10] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [10] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 238-8245 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 281-8801 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 455-0704 | [1] | SEAL-CONNECTOR | |
| | 281-8804 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 455-0705 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3402 | [9] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [9] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 194-5226 | [4] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [4] | WIRE AS(14-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| | E | | ORDER BY THE CENTIMETER |
