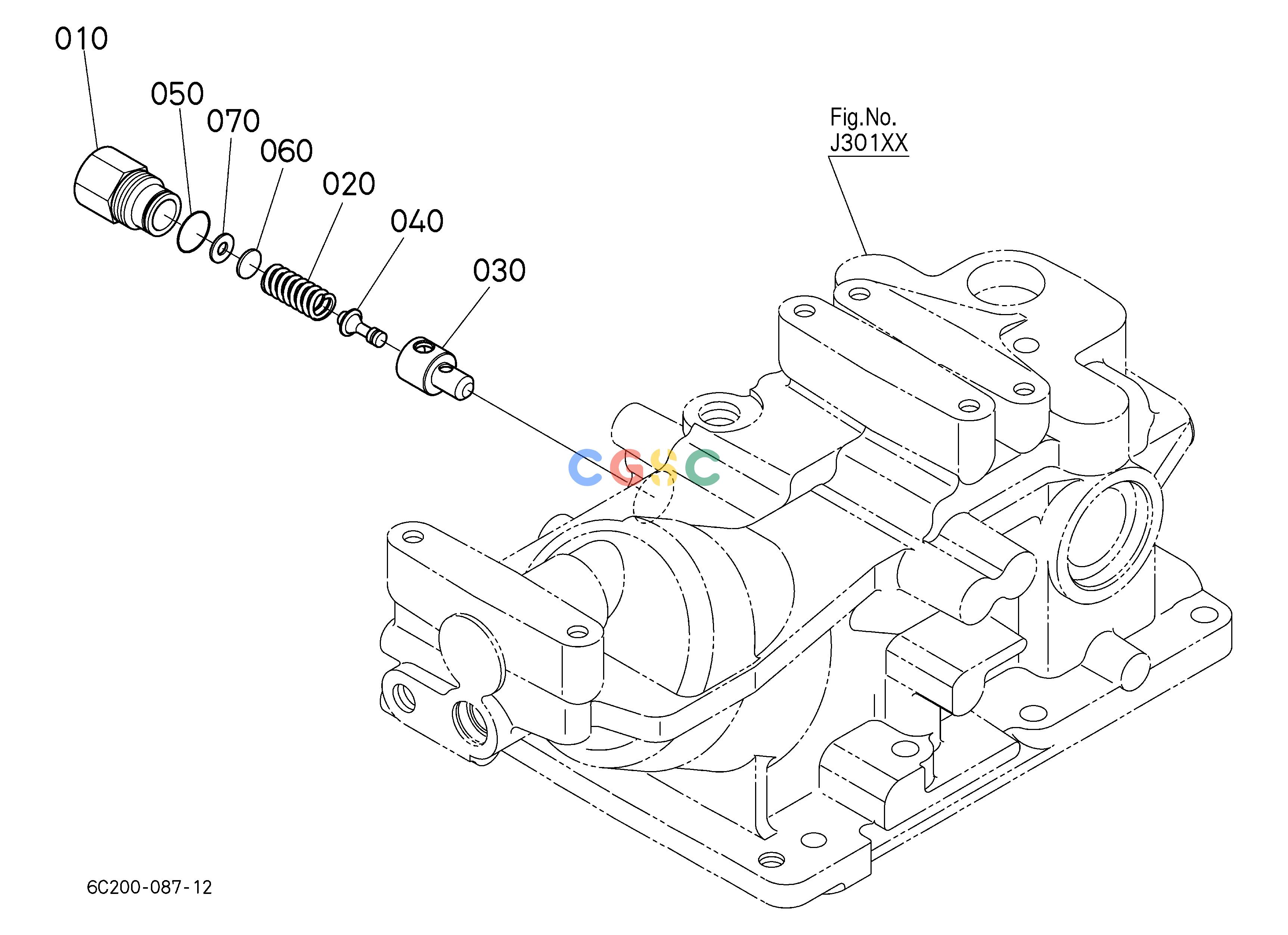

久保田零件查询J43000 RELIEF VALVE PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
194 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A60036340
|
[1] |
PLUG
|
0.1540(lbs); 0.070
|
| 010. |
YR99840110
|
[1] |
PLUG
|
0.1364(lbs); 0.062
|
| 020. |
3135137920
|
[1] |
SPRING,RELIEF
|
0.0440(lbs); 0.020
|
| 030. |
3135137930
|
[1] |
SEAT(RELIEF VALVE)
|
0.0352(lbs); 0.016
|
| 040. |
3135137942
|
[1] |
POPPET
|
0.0000(lbs); 0.000
|
| 040. |
YT45000220
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 050. |
0481110160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
3135137950
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 060. |
3135137960
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 060. |
3135137970
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 070. |
0401350050
|
[1] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
