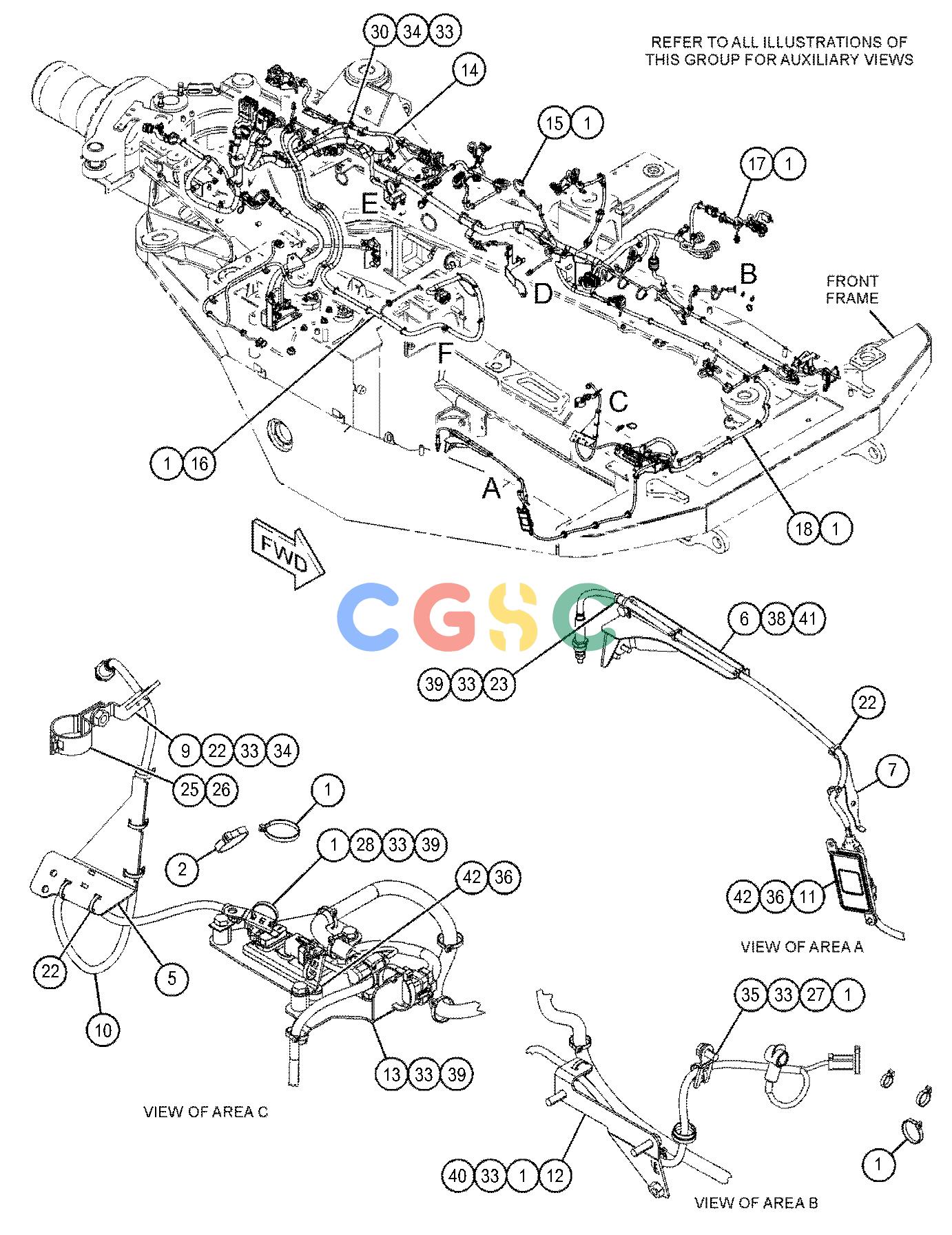

卡特零件查询（730） 502-2009: WIRING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
285 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [36] | STRAP-CABLE | |
| 2. | 7K-1181 | [10] | STRAP-CABLE | |
| 3. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 4. | 384-9767 | [1] | PLATE | |
| 5. | 392-3520 | [1] | BRACKET AS | |
| 6. | 420-3138 | [1] | BRACKET AS | |
| 7. | 421-2269 | [1] | PLATE | |
| 8. | 424-0039 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 9. | 437-8510 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 10. | 441-5127 | [1] | SENSOR AS-NITROGEN OXIDE(ENGINE OUTPUT) | |
| 11. | 441-5128 | [1] | SENSOR AS-NITROGEN OXIDE(EXHAUST PIPE OUT) | |
| 12. | 450-5418 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 13. | 487-4218 | [1] | PLATE AS | |
| | 7T-1099 | [1] | LINK | |
| 14. | 502-2008Y | [1] | WIRING GP-FRONT(CHASSIS) | |
| 15. | 502-2013Y | [1] | HARNESS AS-FRONT CHASSIS(CAB) | |
| 16. | 502-2014Y | [1] | HARNESS AS-FRONT CHASSIS(CEM) | |
| 17. | 511-2016Y | [1] | HARNESS AS-SENSOR(FUEL FILTER) | |
| 18. | 518-3426Y | [1] | HARNESS AS-CONTROL(DIESEL EXHAUST FLUID) | |
| 19. | 519-4290 | [1] | PLATE | |
| 20. | 523-2159 | [1] | PLATE AS | |
| 21. | 149-7738 | [1] | CLIP(LOOP) | |
| 22. | 326-4516 | [12] | TIE-CABLE | |
| 23. | 342-2135 | [2] | CLIP(LOOP)(LOOP) | |
| 24. | 344-5675M | [2] | NUT(M10X1.5-THD)(HEX) | |
| 25. | 3G-6883 | [1] | CLIP(SLOT) | |
| 26. | 3G-6884 | [1] | CLIP(TAB) | |
| 27. | 4P-7581 | [2] | CLIP(LADDER) | |
| 28. | 4P-8134 | [2] | CLIP(LADDER) | |
| 29. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 30. | 6D-4246 | [3] | CLIP(LOOP) | |
| 32. | 8M-2773 | [4] | CLIP(LOOP) | |
| 33. | 8T-4121 | [21] | WASHER-HARD(11X21X2.5-MM THK) | |
| 34. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 35. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 36. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 37. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 38. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 39. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 40. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 41. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 42. | 9X-2038 | [4] | WASHER(7X19X2-MM THK) | |
| 43. | 9M-8406 | [2] | CLIP(LOOP) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
