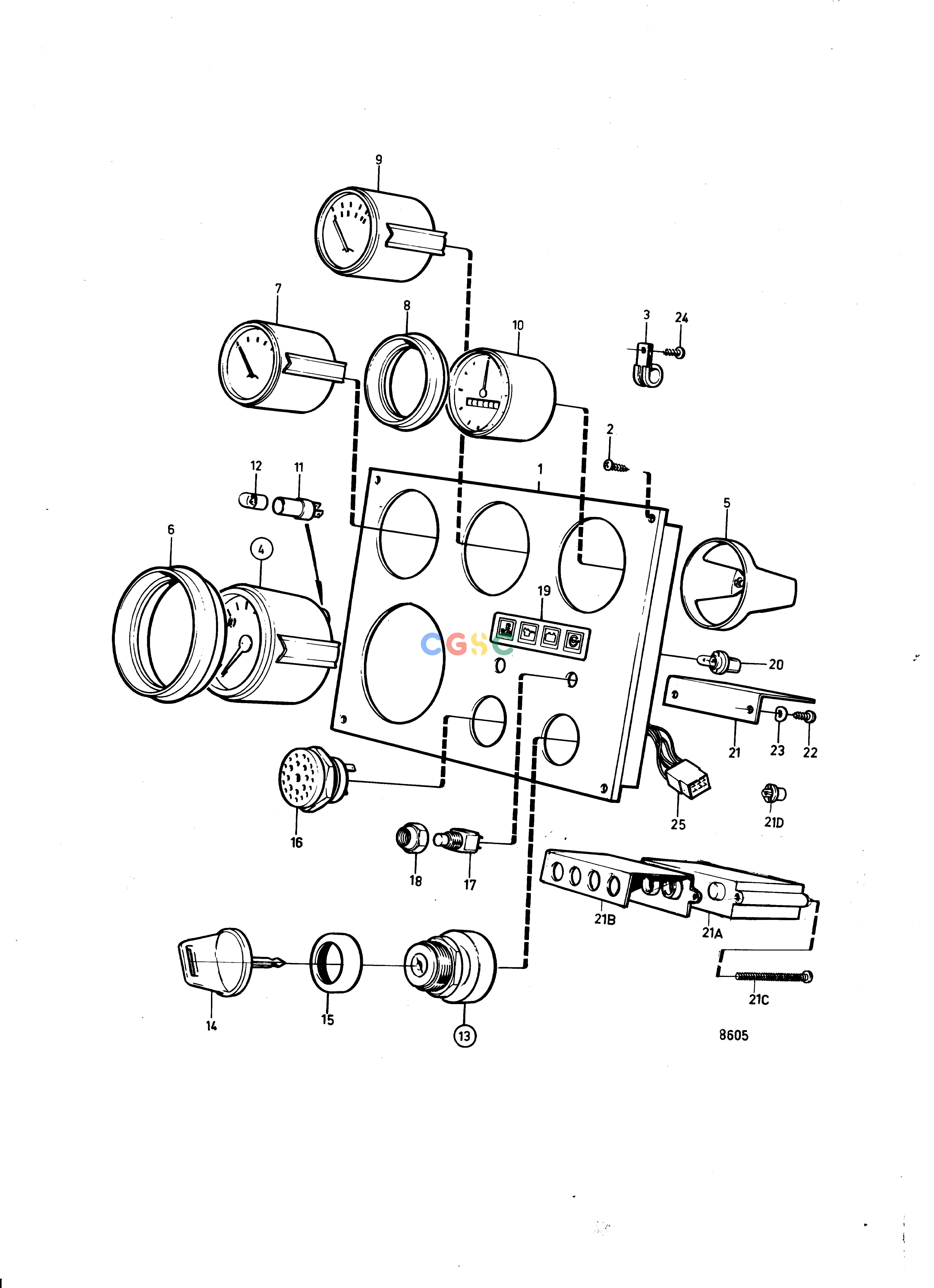

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentInstrument Panel and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828588
|
[1] |
Instrument panel
|
|
| 2. |
828647
|
[4] |
Screw
|
|
| 3. |
952629
|
[1] |
Clamp
|
|
| 4. |
828601
|
[1] |
Tachometer
|
Repl by 858558
|
| 4. |
858558
|
[1] |
Tachometer kit
|
|
| 5. |
828558
|
[1] |
Attaching ring
|
|
| 6. |
828559
|
[1] |
Front ring
|
|
| 7. |
828612
|
[1] |
Thermometer
|
|
| 8. |
828542
|
[3] |
Front ring
|
|
| 9. |
828618
|
[1] |
Instrument
|
|
| 10. |
828628
|
[1] |
Voltmeter
|
|
| 11. |
808175
|
[4] |
Bulb socket
|
|
| 12. |
19923
|
[4] |
Bulb
|
|
| 13. |
828778
|
[1] |
Starter switch
|
|
| 14. |
828676
|
[2] |
Key
|
State key code when ordering
|
| 15. |
1581184
|
[1] |
Round nut
|
|
| 16. |
828587
|
[1] |
Buzzer
|
|
| 17. |
828584
|
[1] |
Toggle switch
|
Alarm
|
| 17. |
828585
|
[1] |
Toggle switch
|
|
| 18. |
828586
|
[2] |
Nut
|
|
| 19. |
828560
|
[1] |
Symbol strip
|
|
| 20. |
966326
|
[4] |
Bulb
|
|
| 21. |
828605
|
[1] |
Circuit board
|
Replaced by 1pc electronic unit-828783,1pc reflector -828784,2pcs screw-941615 and 4PCS bulb-19923.
|
| 21A. |
828783
|
[1] |
Electronic unit
|
|
| 21B. |
828784
|
[1] |
Reflector
|
|
| 21C. |
941615
|
[2] |
Cross recessed screw
|
|
| 21D. |
19923
|
[4] |
Bulb
|
|
| 22. |
941610
|
[2] |
Cross recessed screw
|
|
| 23. |
941904
|
[2] |
Spring washer
|
|
| 24. |
949947
|
[1] |
Cross recessed screw
|
(966832)
|
| 25. |
828646
|
[1] |
Cable block
|
|
| 25. |
|
|
|
See group 3
|
