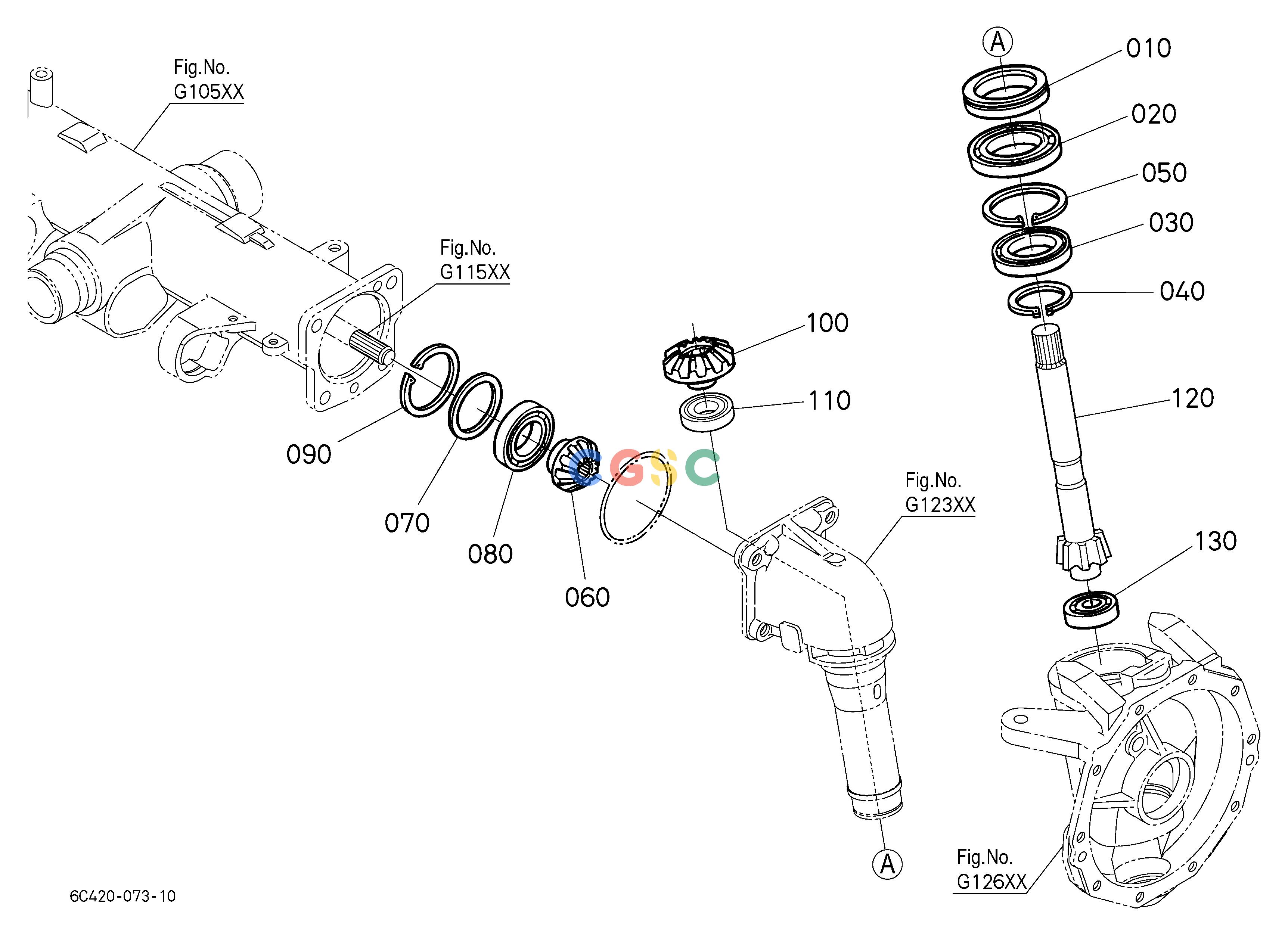

久保田零件查询G12100 BEVEL GEAR LH ## NOTE:ORDER BY REF.No.120 NEW PART and Fig.No.G13000 REF.No.020 NEW PART. FRONT AXLEEPC Kubota online_久保田Kubota_工程机械

久保田零件查询G12100 BEVEL GEAR LH ## NOTE:ORDER BY REF.No.120 NEW PART and Fig.No.G13000 REF.No.020 NEW PART. FRONT AXLEEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 436 次

Pos.	Part No	Qty	Parts name	Comments
010.	3272156223	[1]	SEAL,OIL	0.1518(lbs); 0.069
020.	0810106911	[1]	BEARING,BALL	0.4400(lbs); 0.200
030.	0810106009	[1]	BEARING,BALL	0.4840(lbs); 0.220
040.	0461200450	[1]	CIR-CLIP,EXTERNAL	0.0154(lbs); 0.007
050.	0461100750	[1]	CIR-CLIP,INTERNAL	0.0418(lbs); 0.019
060.	3741057130	[1]	GEAR,BEVEL	11T 0.5500(lbs); 0.250
070.	6C04057140	[1]	SHIM	0.8mm 0.0132(lbs); 0.006
070.	6C04057130	[1]	SHIM	1.0mm 0.0176(lbs); 0.008
070.	6C04057150	[1]	SHIM	1.2mm 0.0198(lbs); 0.009
070.	6C04057160	[1]	SHIM	1.4mm 0.0242(lbs); 0.011
080.	0810106007	[1]	BEARING,BALL	0.3520(lbs); 0.160
090.	0461100620	[1]	CIR-CLIP,INTERNAL	0.0242(lbs); 0.011
100.	3741057180	[1]	GEAR,BEVEL	16T 0.7040(lbs); 0.320
110.	6C20057190	[1]	BEARING,BALL	0.1672(lbs); 0.076
120.	6C20057211	[1]	SHAFT,GEAR	7T; <=50030 0.0000(lbs); 0.000
120.	6C20057212	[1]	SHAFT,GEAR	7T, SEE NOTE; >=50031 1.7600(lbs); 0.800
120.	6C20057213	[1]	SHAFT,GEAR	7T; >=52104 1.7600(lbs); 0.800
130.	0810106304	[1]	BEARING,BALL	0.3212(lbs); 0.146
