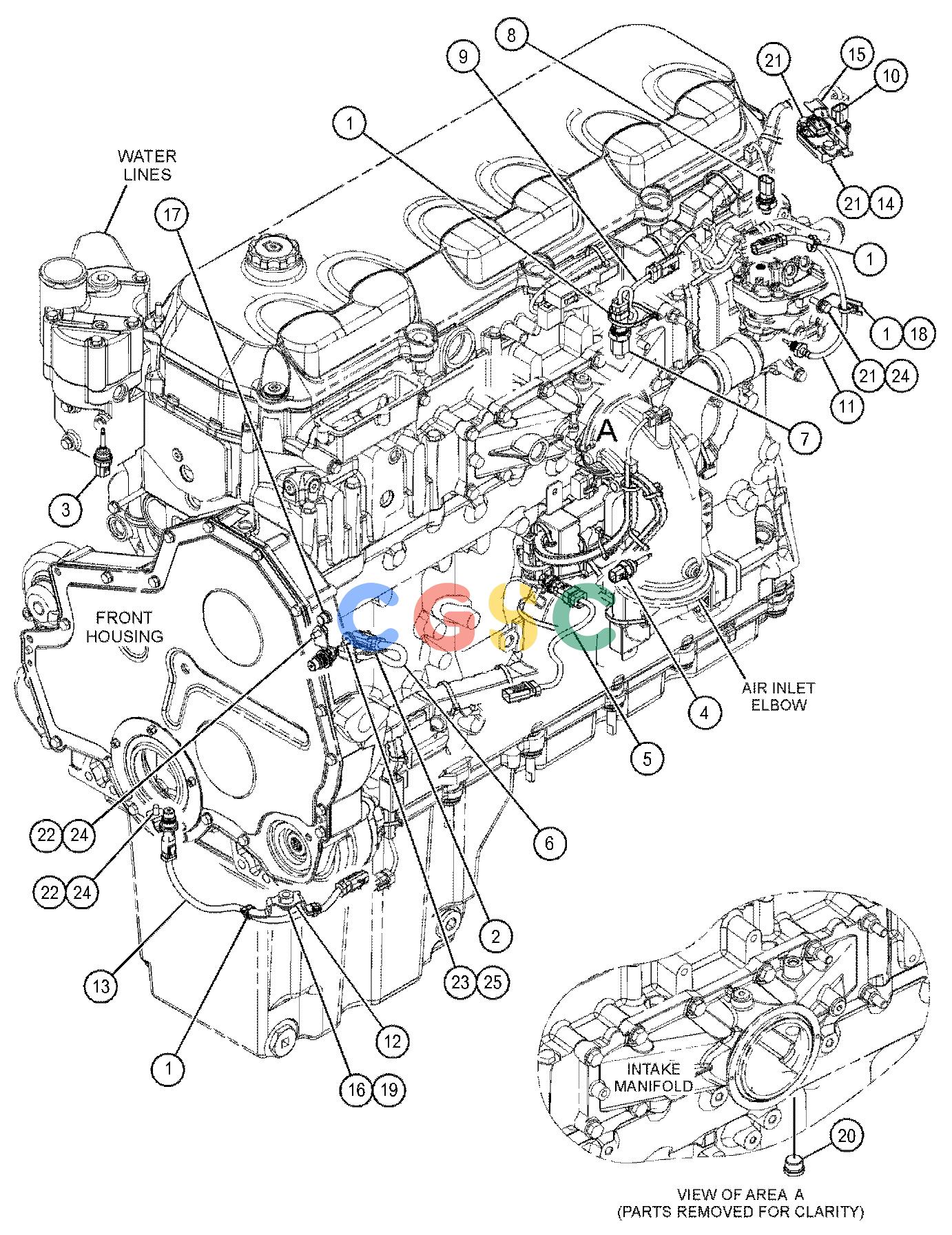

卡特零件查询（730） 418-9617: SENSOR GP-ENGINE
广数供应链运营团队, 15 02月, 2025，浏览：
340 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [5] | STRAP-CABLE | |
| 2. | 178-1781 | [1] | CLIP | |
| 3. | 234-5012Y | [1] | SENSOR GP-TEMPERATURE(COOLANT) | |
| 4. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(CHARGE AIR) | |
| 5. | 293-5535Y | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 6. | 300-9806Y | [1] | SENSOR GP-SPEED(ENGINE SPEED) | |
| 7. | 330-9740 | [1] | ADAPTER AS | |
| | 214-7566 | [1] | SEAL-O-RING | |
| | 330-9739 | [1] | ADAPTER | |
| 8. | 331-1134Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 9. | 331-1135Y | [1] | SENSOR GP-PRESSURE(INTAKE MANIFOLD) | |
| 10. | 332-0296Y | [1] | SENSOR GP-PRESSURE(INTAKE AIR MANIFOLD)(NRS) | |
| 11. | 474-3231 | [1] | SENSOR AS-TEMPERATURE(NOX REDUCTION SYSTEM) | |
| | 281-8802 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 12. | 443-4151 | [1] | BRACKET | |
| 13. | 384-1836Y | [1] | SENSOR GP-SPEED(CRANKSHAFT) | |
| 14. | 385-1173Y | [1] | SENSOR GP-PRESSURE(NRS DIFFERENTIAL) | |
| 15. | 421-8565 | [1] | BRACKET | |
| 16. | 7W-9094 | [1] | SPACER(11X20X9-MM THK) | |
| 17. | 183-3407 | [1] | PLUG AS | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 18. | 285-6395 | [1] | CLIP(LADDER) | |
| 19. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 20. | 307-2673 | [1] | PLUG AS | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 21. | 6V-3940M | [3] | BOLT(M8X1.25X25-MM) | |
| 22. | 6V-5215M | [2] | BOLT(M8X1.25X16-MM) | |
| 23. | 8T-4970M | [1] | BOLT(M6X1X14-MM) | |
| 24. | 9M-1974 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 9X-6165 | [1] | WASHER(6.5X22X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
