神钢零件查询(BOOM) - ATTACHMENT, (2 PIECE) - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/12) (02-015[02]) - LIGHT INSTAL (BOOM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
998 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX80E00001F2 | [1] | LIGHT INSTAL | |
| A2. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| A3. | YX80E01002P1 | [2] | BRACKET | KOB |
| A4. | 2418R323D13 | [2] | LOCK WASHER | KOBStar -- ID 14 x OD 23 x Th 1.0mm |
| A5. | 2418R323D11 | [2] | WASHER | KOBStar -- ID 10 x OD 18 x Th 0.9mm |
| A6. | YN80S00012F1 | [2] | LIGHT | KOB Superseded by part number: 2456R442F1 |

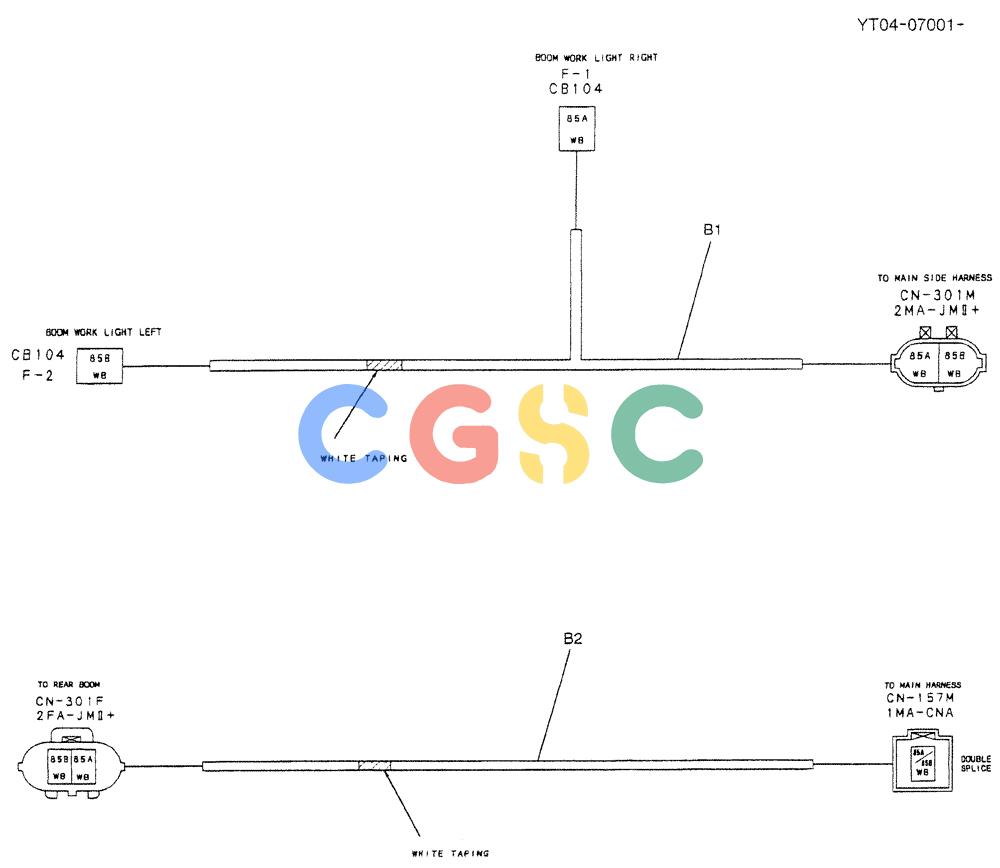

| . . | YT15E00002F1 | [1] | HARNESS ASSY., BOOM | |
| B1. | YT15E01003P1 | [1] | HARNESS | KOB |
| B2. | YT15E01002P1 | [1] | HARNESS | KOB |
| B3. | PY01P01043D3 | [3] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
