神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (08-030[00]) - CYLINDER ASSEMBLY, (YY01V00018F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
972 次

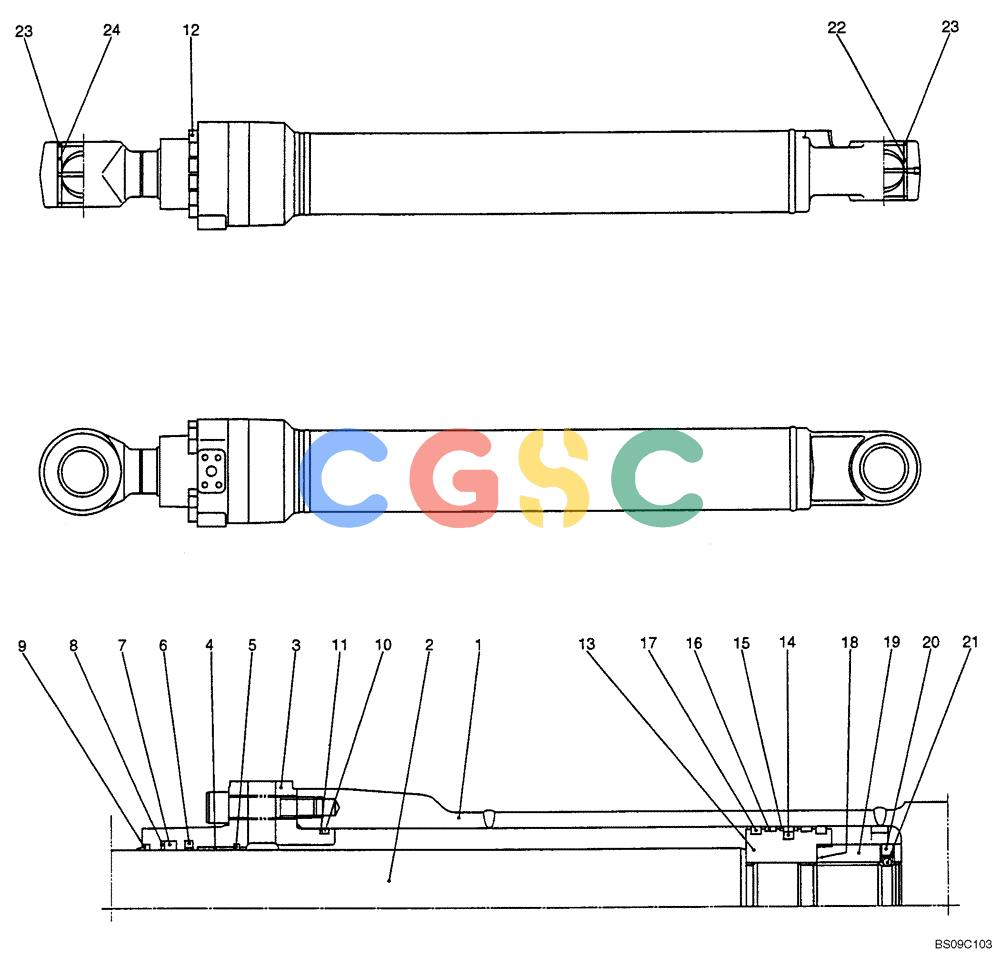

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY01V00018F1 | [1] | CYLINDER | KOBCylinder Assembly, JIB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCylinder Tube |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONCylinder Rod |
| 3. | YY01V00018S003 | [1] | CYLINDER HEAD | KOBCylinder Head |
| 4. | 2438U1106S17 | [1] | BUSHING | KOB |
| 5. | 2438U959S5 | [1] | RING | KOB |
| 6. | LQ01V00004S006 | [1] | RING | KOB |
| 7. | 2438U959S7 | [1] | RING | KOB |
| 8. | 2438U959S8 | [1] | RING | KOB |
| 9. | LP01V00008S009 | [1] | RING | KOB |
| 10. | ZD12G12500 | [1] | O-RING,124.40mm ID x 130.60mm OD x 3.10mm | KOBID 124.40 ± 1.01 x OD 130mm |
| 11. | YN01V00021S011 | [1] | BACK-UP RING | KOB |
| 12. | ZS23C18080 | [12] | CAPSCREW,Hex Socket Head, M18 x 80mm | KOBSCREW M18x2.50x80mm |
| 13. | YN01V00021S013 | [1] | PISTON | KOB |
| 14. | 2438U1382S15 | [1] | SEAL | KOB |
| 15. | YN01V00021S015 | [2] | BACK-UP RING | KOB |
| 16. | 2438U959S16 | [2] | RING | KOB |
| 17. | 2438U1382S17 | [2] | RING | KOB |
| 18. | 2438U999S19 | [1] | SHIM | KOB |
| 19. | YY01V00018S019 | [1] | NUT | KOB |
| 20. | 2438U999S21 | [1] | SET SCREW | KOBSet -- M12x1.75mm |
| 21. | 2436U330S16 | [1] | BALL | KOB |
| 22. | 2438U959S22 | [1] | BUSHING | KOB |
| 23. | 2438U959S23 | [4] | RING | KOB |
| 24. | YY01V00018S024 | [1] | BUSHING | KOBBushing |
| K. | YN01V00021R100 | [1] | REPAIR KIT | KOBRod End, Contains Items 6-11 |
| K. | YN01V00021R200 | [1] | REPAIR KIT | KOBPiston End, Contains Items 14-18 |
| K. | YN01V00021R300 | [1] | REPAIR KIT | KOBAll (Rod & Piston), Contains Items 6-11 & 14-18 |
| K. | YY01V00018R400 | [1] | REPAIR KIT | KOBKit, Repair, Contains Items 1 & 22 |
| K. | YY01V00018R500 | [1] | REPAIR KIT | KOBKit, Repair, Contains Items 2 & 24 |
