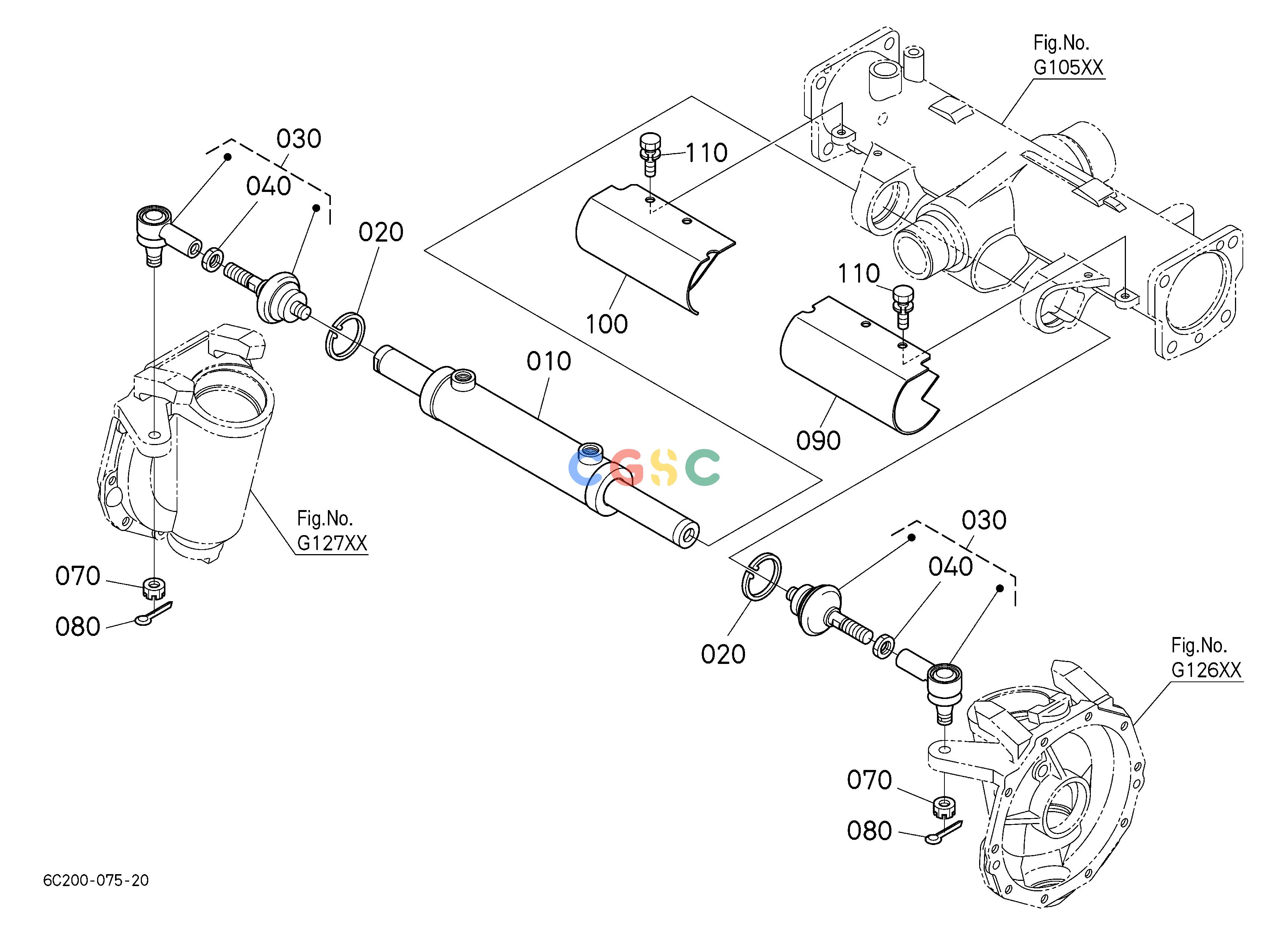

久保田零件查询H12100 STEERING CYLINDER ## NOTE:ORDER BY REF.No.090,100 NEW PARTS and Fig.No.G10502 REF.No.010. STEERINGEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 211 次

Pos.	Part No	Qty	Parts name	Comments
010.	6C20057302	[1]	CYLINDER,ASSY(STRG.)	; <=52793 7.2600(lbs); 3.300
010.	6C22257300	[1]	ASSY CYLINDER,STRG.	; >=52794 7.2996(lbs); 3.318
010.	6C43057302	[1]	CYLINDER,ASSY(STEERING)	; >=53011 7.4140(lbs); 3.370
020.	0461100520	[2]	CIR-CLIP,INTERNAL	0.0198(lbs); 0.009
030.	6C20057410	[2]	ROD,TIE STEERING	; <=52388 1.2320(lbs); 0.560
030.	6C20057412	[2]	ROD,TIE STEERING	; >=52389 1.2320(lbs); 0.560
040.	K256101640	[2]	HEX NUT	0.0396(lbs); 0.018
070.	3824012830	[2]	NUT,SLOTTED	0.0176(lbs); 0.008
080.	0551150330	[2]	PIN SPLIT	0.0110(lbs); 0.005
090.	6C20057482	[1]	COVER LH,STEERING	SEE NOTE; <=50238 0.9900(lbs); 0.450
090.	6C20057483	[1]	COVER LH,STEERING	; >=50239 0.9900(lbs); 0.450
100.	6C20057492	[1]	COVER RH,STEERING	SEE NOTE; <=50238 0.9900(lbs); 0.450
100.	6C20057493	[1]	COVER RH,STEERING	; >=50239 0.9900(lbs); 0.450
110.	0112350812	[4]	BOLT,SEMS	; <=50238 0.2200(lbs); 0.100
110.	0112350816	[4]	BOLT,SEMS	; >=50239 0.0242(lbs); 0.011
