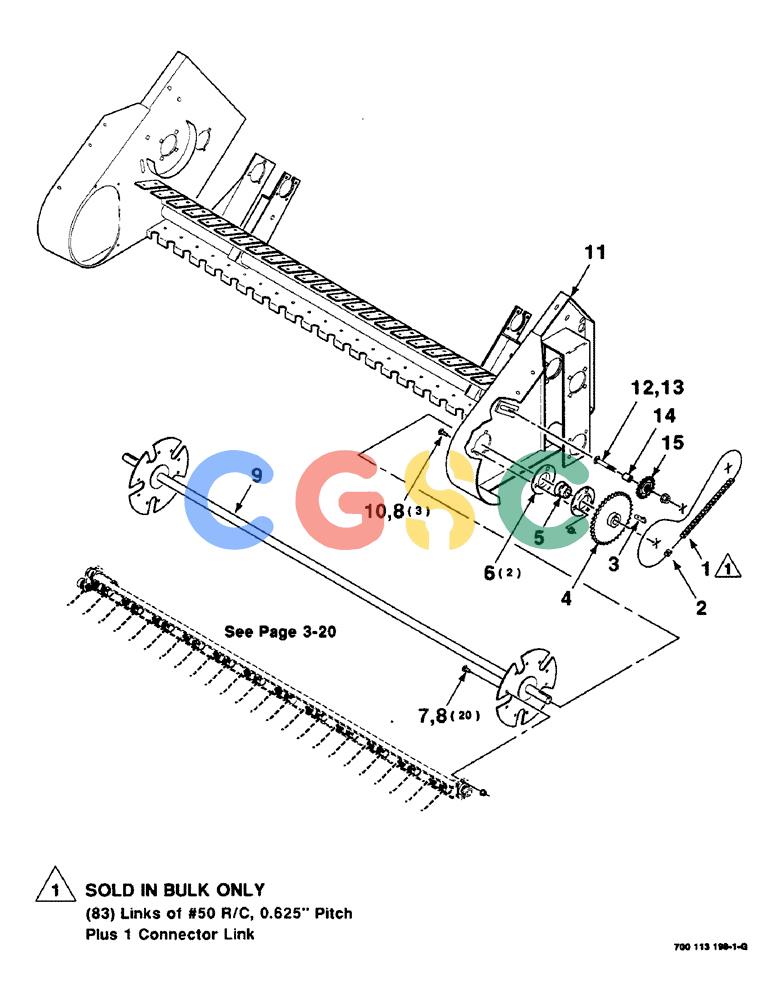

凯斯零件查询(8590) - CASE IH LARGE RECTANGULAR BALER (EUROPE) (1/97-12/98) (3-16) - PICKUP AND PICKUP DRIVE ASSEMBLY, LEFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1791D
|
[1] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
CHAIN - roller #50 (10 foot bulk)
|
| 2. |
47530
|
[1] |
LINK, CONNECTING
|
IH
LINK - connector, #50 R/C
|
| 3. |
61424
|
[1] |
KEY
|
CAS
1/4 X 1-1/4 GIB KEY
|
| 4. |
6141311
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET 50B36 TOOTH
|
| 5. |
51292
|
[1] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
- spherical Superseded by part number: 84330041, 47508357
|
| 6. |
T27207
|
[2] |
FLANGED BEARING
|
CAS
FLANGE - bearing Superseded by part number: 617863R1
|
| 7. |
111-360
|
[20] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5 Superseded by part number: 280430
|
| 8. |
329-286
|
[23] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 9. |
700113229
|
[1] |
REEL
|
CAS
WA
|
| 10. |
434-616
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 11. |
700134970
|
[1] |
PICK-UP
|
HFI
PICKUP WA
|
| 12. |
111-505
|
[1] |
CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5
|
CAS
BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5
|
| 13. |
700714586
|
[1] |
FLANGE NUT
|
CAS
1/2-13 HFN GR/8 Superseded by part number: 329-288
|
| 14. |
6530638
|
[1] |
BUSHING
|
CAS
|
| 15. |
565442R91
|
[1] |
SPROCKET
|
IH
- idler 17 tooth Superseded by part number: 87302107
|
