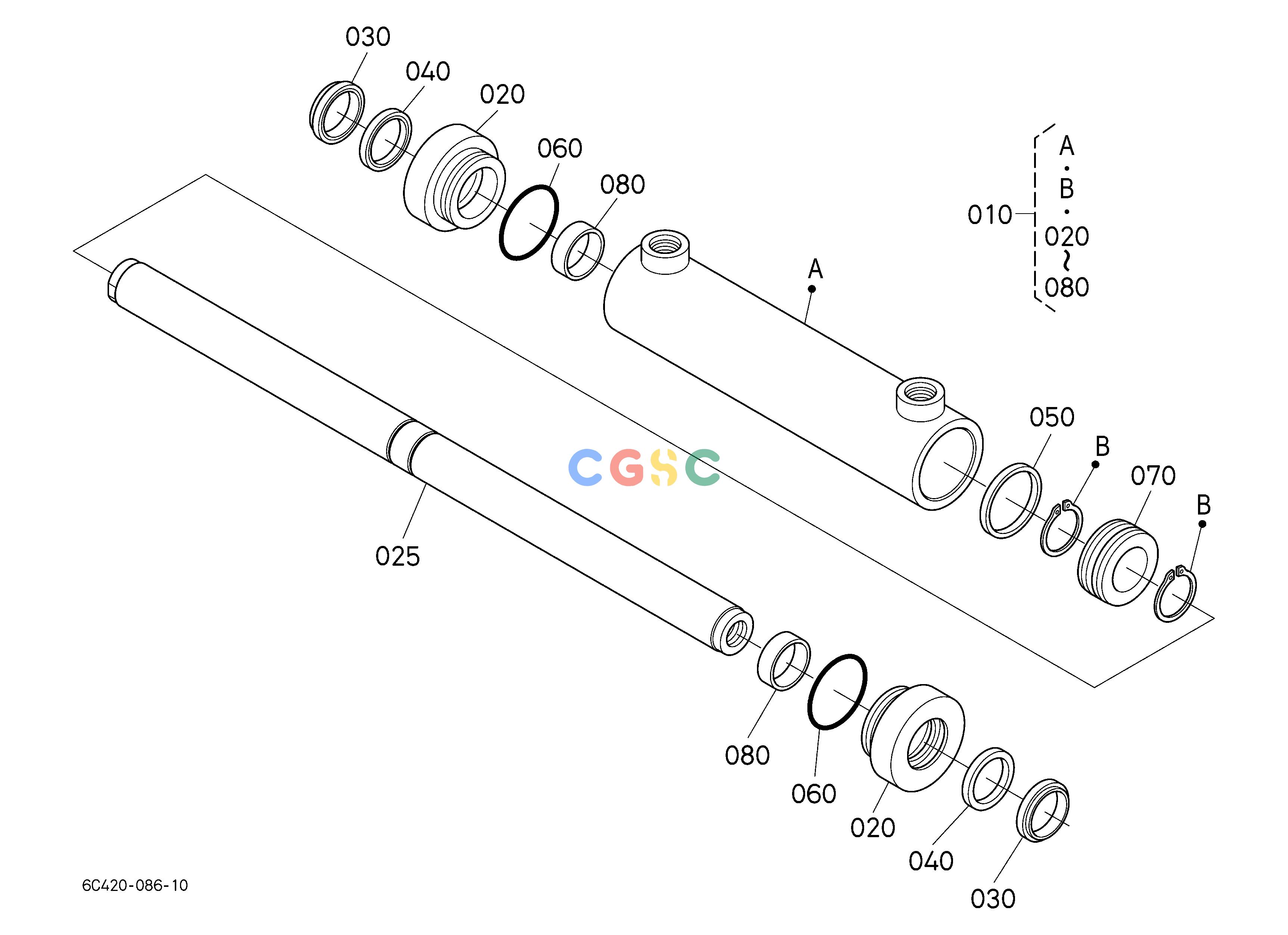

久保田零件查询H12203 STEERING CYLINDER[COMPONENT PARTS] ## S.No.>=53011 S.No.;>=53011 STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
538 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43057302
|
[1] |
CYLINDER,ASSY(STEERING)
|
7.4140(lbs); 3.370
|
| 020. |
6C43057320
|
[2] |
COVER
|
0.4620(lbs); 0.210
|
| 025. |
6C43057330
|
[1] |
ROD
|
3.4870(lbs); 1.585
|
| 030. |
6C43057340
|
[2] |
SEAL,DUST
|
0.0044(lbs); 0.002
|
| 040. |
6C43057350
|
[2] |
SEAL,ROD
|
0.0044(lbs); 0.002
|
| 050. |
6C43057360
|
[1] |
SEAL,PISTON
|
0.0066(lbs); 0.003
|
| 060. |
6C43057370
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
6C43057380
|
[1] |
PISTON
|
0.1320(lbs); 0.060
|
| 080. |
6C43057390
|
[2] |
BUSH
|
0.0242(lbs); 0.011
|
