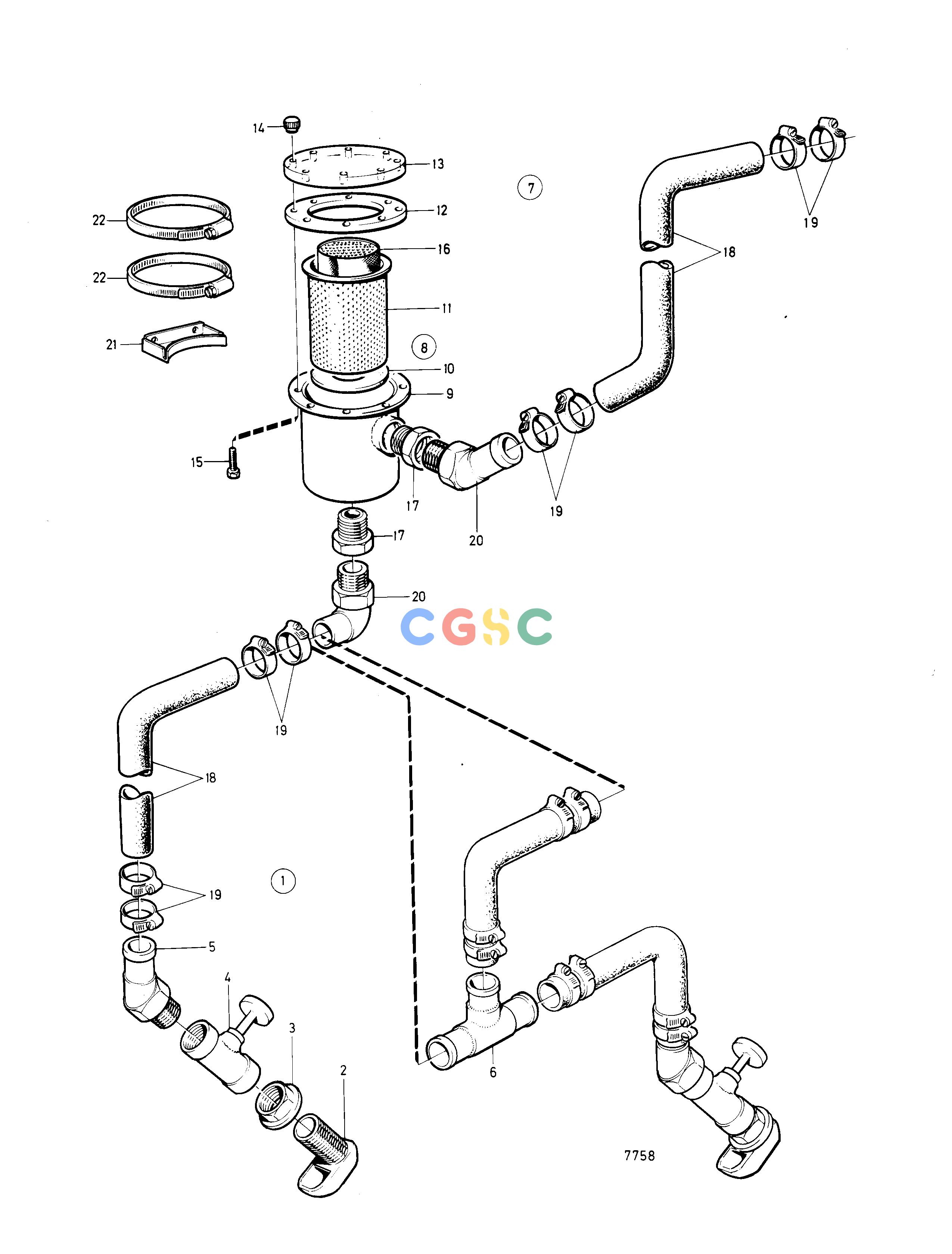

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentSea Water Filter and Sea Water IntakeEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
559 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828244
|
[1] |
Coolant inlet
|
|
| 2. |
836876
|
[1] |
Strainer
|
|
| 3. |
836879
|
[1] |
Nut
|
|
| 4. |
828239
|
[1] |
Sliding valve
|
|
| 5. |
836759
|
[1] |
Hose attachment
|
|
| 6. |
829513
|
[1] |
T-pipe
|
Used when two sea water intake are mounted
|
| 7. |
844904
|
[1] |
Sea water filter
|
|
| 8. |
842466
|
[1] |
Sea water filter
|
|
| 9. |
|
|
|
|
| 10. |
843361
|
[1] |
Gasket
|
|
| 11. |
843358
|
[1] |
Filter
|
|
| 12. |
843360
|
[1] |
Gasket
|
|
| 13. |
843359
|
[1] |
Cap
|
|
| 14. |
843357
|
[8] |
Nut
|
|
| 15. |
843362
|
[8] |
Screw
|
|
| 16. |
844902
|
[1] |
Sea water filter
|
|
| 17. |
844903
|
[2] |
Bushing
|
|
| 18. |
941799
|
[1] |
Hose
|
L=2m
|
| 19. |
961669
|
[8] |
Hose clamp
|
|
| 20. |
836759
|
[2] |
Hose attachment
|
|
| 21. |
828061
|
[2] |
Retainer
|
|
| 22. |
961678
|
[2] |
Hose clamp
|
|
