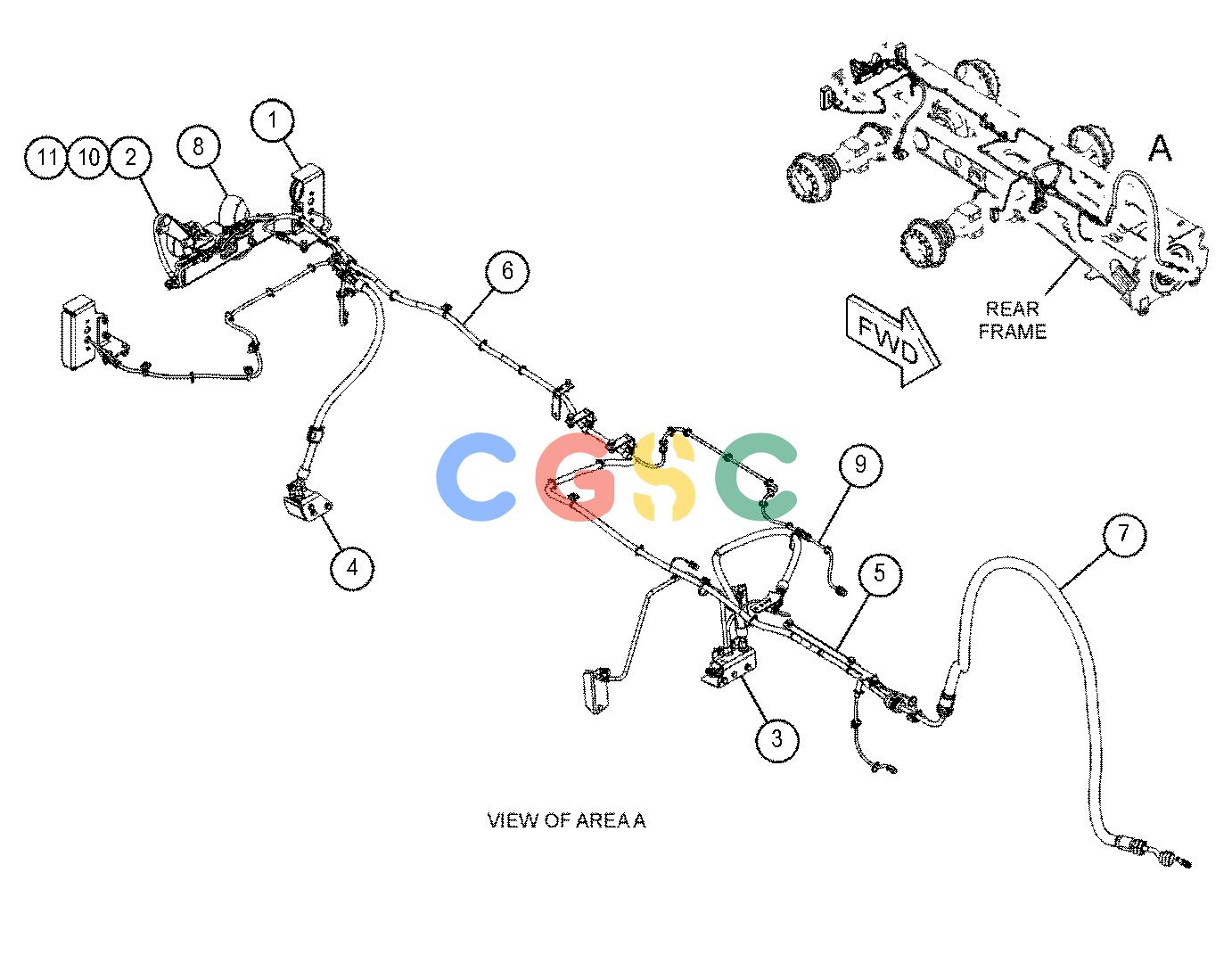

卡特零件查询（730） 498-9053: WIRING GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 454-6963Y | [1] | WIRING GP-LIGHTING | |
| 2. | 463-4019Y | [1] | SENSOR & MTG GP-PAYLOAD(REAR) | |
| 3. | 465-1297Y | [1] | WIRING GP-REAR(CENTER) | |
| 4. | 467-6116Y | [1] | WIRING GP-REAR(AXLE) | |
| 5. | 498-9056Y | [1] | FASTENER GP-WIRING HARNESS | |
| 6. | 498-9060Y | [1] | HARNESS AS-REAR | |
| 7. | 502-9563Y | [1] | WIRING GP-HITCH | |
| 8. | 524-1749Y | [1] | WARNING GP-BACKUP | |
| 9. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 559-2602 | [1] | HARNESS AS-SENSOR | |
| | 9X-3402 | [3] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768F | [3] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767F | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 237-0227 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 237-0228 | [1] | RECEPTACLE AS-CONNECTOR | |
| 11. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
