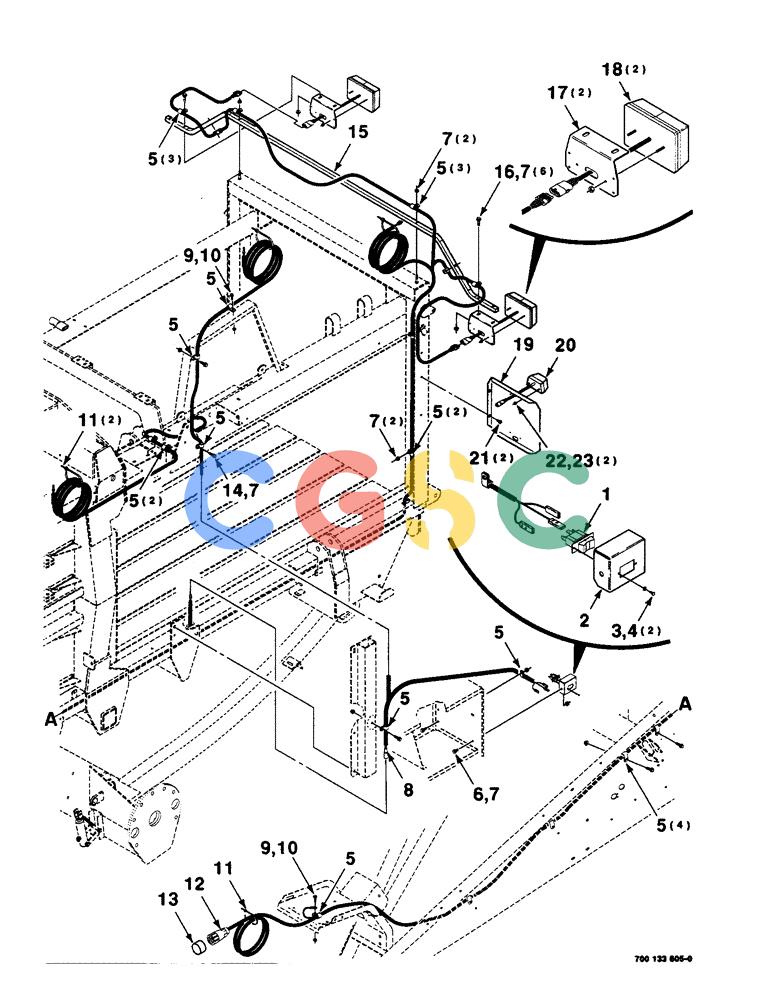

凯斯零件查询(8590) - CASE IH LARGE RECTANGULAR BALER (EUROPE) (1/97-12/98) (4-04) - TAIL LIGHT AND FLASHER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700715143
|
[1] |
SWITCH
|
CAS
- rocker
|
| 2. |
700133171
|
[1] |
SUPPORT
|
HFI
- switch
|
| 3. |
440-1068
|
[2] |
SCREW,Cross Pan Hd, #6-32 x 1/2"
|
CAS
#6-32 X 1/2 CRPHMS GR60M Superseded by part number: 281007
|
| 4. |
492-11006
|
[2] |
LOCK WASHER,#6
|
CAS
Washer, Lock, #6 Superseded by part number: 87276
|
| 5. |
515-2395
|
[20] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
| 6. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 7. |
232-5316
|
[12] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 8. |
700715694
|
[1] |
ELECTRIC CABLE
|
ZED
HARNESS - lights
|
| 9. |
121-108
|
[2] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 X 1 HWHMS
|
| 10. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 11. |
529070
|
[3] |
CABLE TIE,368.3mm L
|
NH
TIE - cable
|
| 12. |
700715514
|
[1] |
WIRE HARNESS
|
CAS
HARNESS - lights
|
| 13. |
745216
|
[1] |
LINE
|
CAS
PLUG Superseded by part number: CAS745216
|
| 14. |
121-226
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 15. |
700133723
|
[1] |
SUPPORT
|
HFI
- light
|
| 16. |
413-628
|
[6] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 72187210, 9706689
|
| 17. |
700133748
|
[2] |
COVER PLATE
|
CAS
PLATE - light
|
| 18. |
700716461
|
[2] |
TAIL LAMP
|
CAS
LIGHT - tail
|
| 19. |
700133747
|
[1] |
SUPPORT
|
HFI
- registration plate
|
| 20. |
700716772
|
[1] |
NUMBER PLATE LAMP
|
CAS
LIGHT - registration plate
|
| 21. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 22. |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 23. |
825-1405
|
[2] |
NUT,M5, Cl 8
|
CAS
Superseded by part number: 10788811
|
