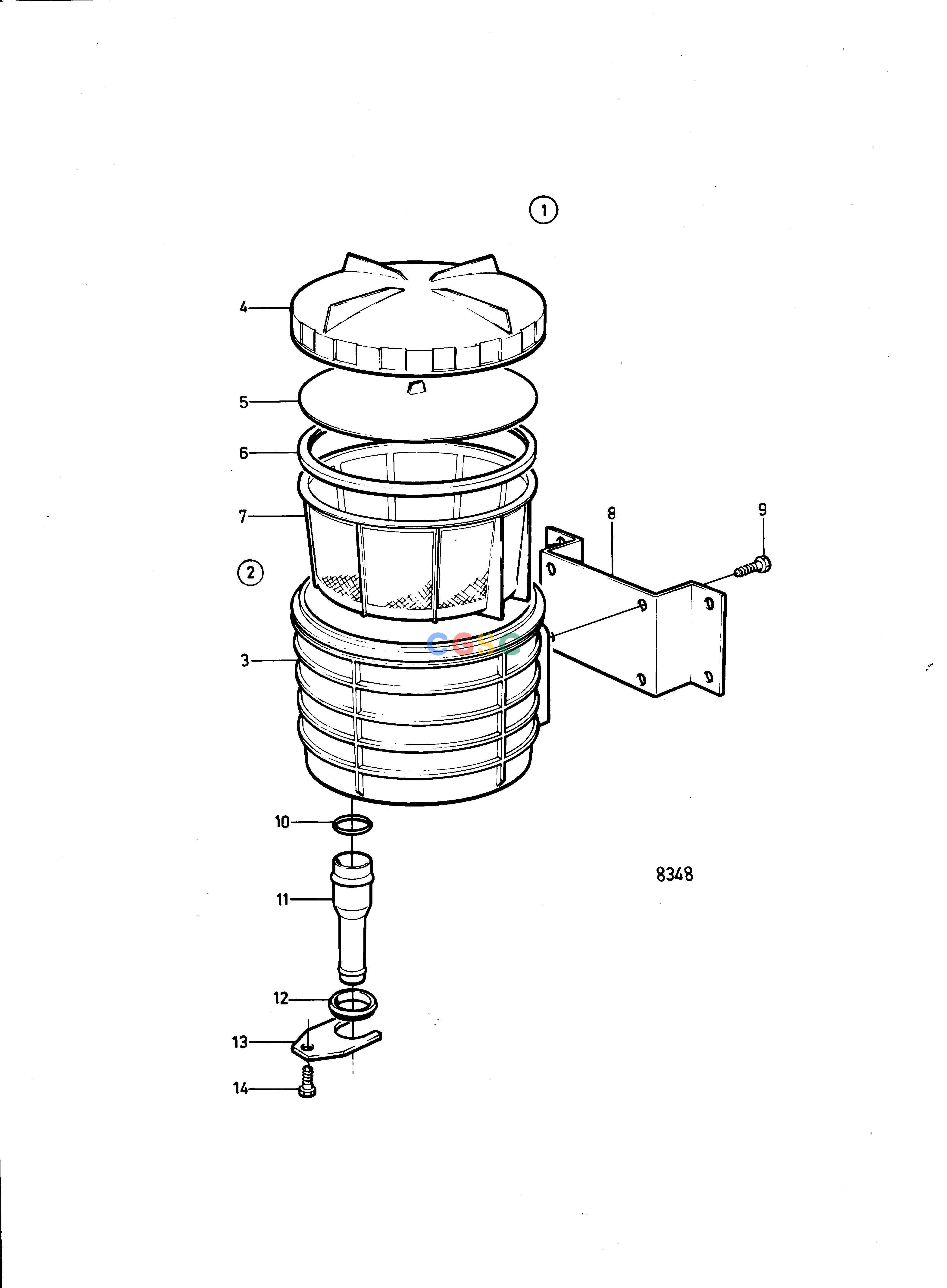

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentSeawater Strainer: 846162EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846162
|
[1] |
Mounting kit
|
Repl by 838315
|
| 2. |
|
|
|
|
| 3. |
845338
|
[1] |
Strainer housing
|
|
| 4. |
845317
|
[1] |
Cover
|
|
| 5. |
22396396
|
[1] |
Pressure plate
|
|
| 6. |
838977
|
[1] |
Seal
|
(845329)
|
| 7. |
845327
|
[1] |
Strainer
|
|
| 8. |
845960
|
[1] |
Bracket
|
|
| 9. |
940199
|
[4] |
Hexagon screw
|
|
| 10. |
845354
|
[2] |
Sealing ring
|
|
| 11. |
847002
|
[2] |
Hose connection
|
MD40, TMD40
|
| 11. |
845357
|
[2] |
Coolant pipe
|
TAMD40
|
| 12. |
847017
|
[2] |
Pipe retainer
|
|
| 13. |
21212198
|
[2] |
Retainer
|
|
| 14. |
940199
|
[2] |
Hexagon screw
|
|
