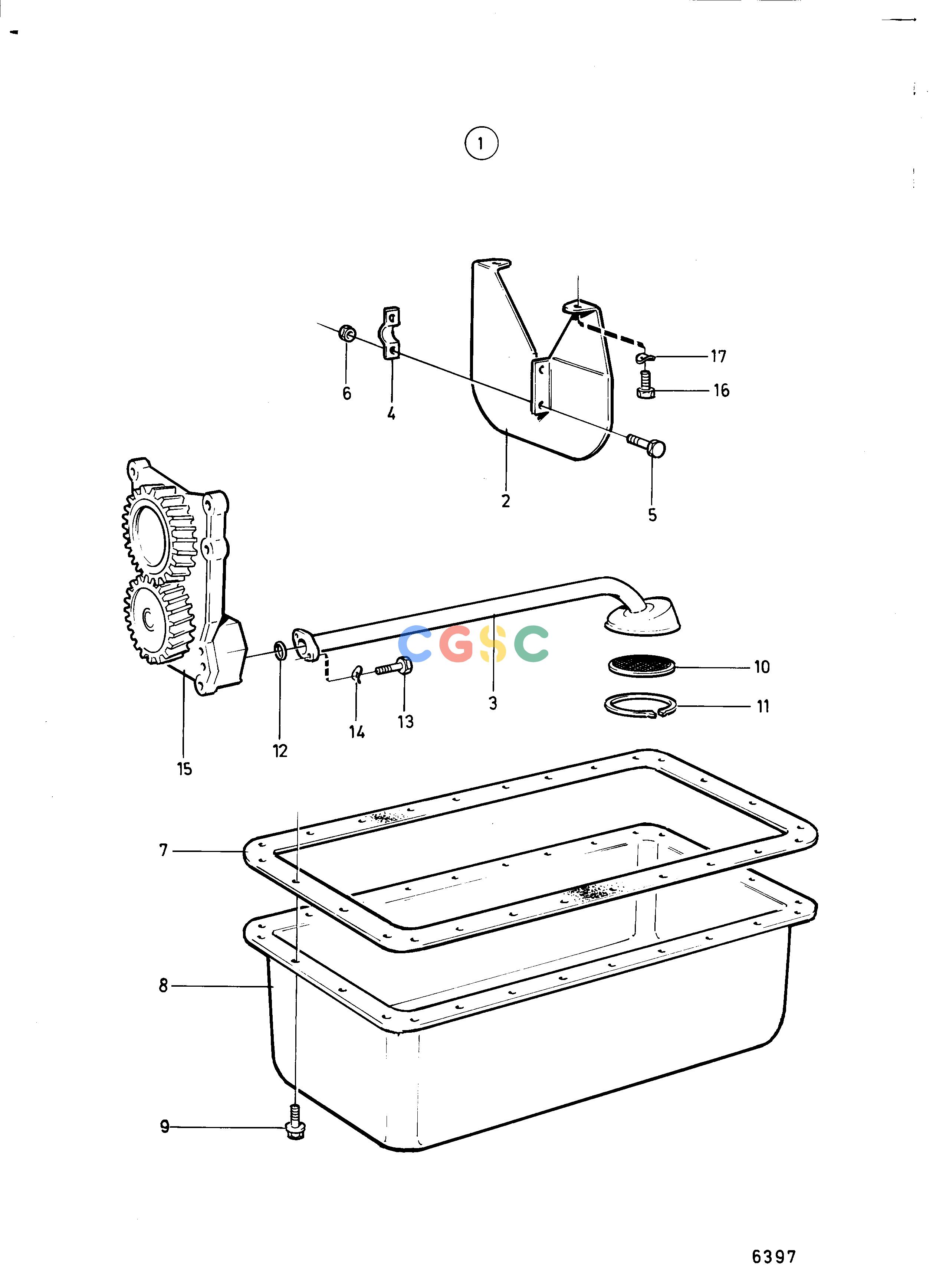

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentSuction Pipe KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
936 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
845557
|
[1] |
Suction pipe
|
|
| 4. |
|
|
|
|
| 5. |
963556
|
[2] |
Hexagon screw
|
|
| 6. |
946035
|
[2] |
Lock nut
|
|
| 7. |
859032
|
[1] |
Gasket
|
(1542247)
|
| 8. |
|
|
|
See group 2A
|
| 9. |
946440
|
[32] |
Flange screw
|
|
| 10. |
403483
|
[1] |
Wire gauze
|
|
| 11. |
118123
|
[1] |
Snap ring
|
|
| 12. |
925060
|
[1] |
O-ring
|
|
| 13. |
955303
|
[2] |
Hexagon screw
|
|
| 14. |
941907
|
[2] |
Spring washer
|
|
| 15. |
|
|
|
See group 2A
|
| 16. |
955293
|
[2] |
Hexagon screw
|
|
| 17. |
942385
|
[2] |
Disc spring
|
|
