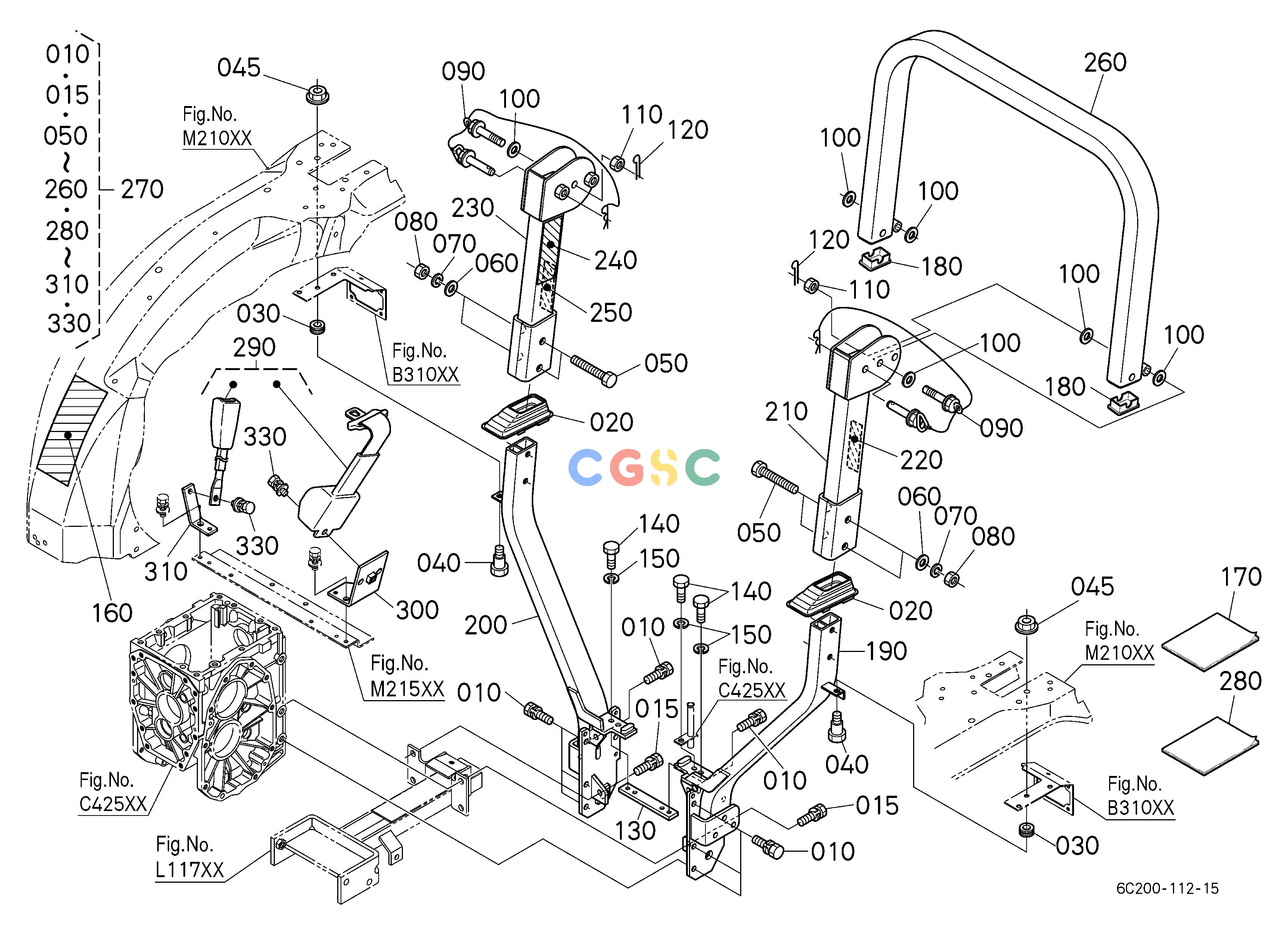

久保田零件查询M30103 ROPS (FOLDABLE TYPE) HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
913 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0112351235
|
[8] |
BOLT,SEMS
|
0.0902(lbs); 0.041
|
| 015. |
0112351240
|
[2] |
BOLT,SEMS
|
0.1056(lbs); 0.048
|
| 020. |
6C20072210
|
[2] |
COVER,ROPS
|
0.1980(lbs); 0.090
|
| 030. |
6A10051380
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 030. |
6A10051383
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 040. |
6C04051342
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 045. |
0212150080
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 050. |
0Y10950952
|
[4] |
BOLT
|
0.2420(lbs); 0.110
|
| 060. |
0401350140
|
[4] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 070. |
0Y45050090
|
[4] |
WASHER,SPRING
|
0.0154(lbs); 0.007
|
| 080. |
0Y20550090
|
[4] |
NUT
|
0.0528(lbs); 0.024
|
| 090. |
TA24048752
|
[2] |
BOLT,KIT
|
0.9570(lbs); 0.435
|
| 100. |
0401350160
|
[6] |
WASHER,PLAIN
|
0.0242(lbs); 0.011
|
| 110. |
0225450160
|
[2] |
NUT,SLOTTED
|
0.0880(lbs); 0.040
|
| 120. |
0551150430
|
[2] |
PIN,SPLIT
|
0.0088(lbs); 0.004
|
| 130. |
99999-99999
|
[1] |
PLATE(CONNECTOR)
|
0.7480(lbs); 0.340
|
| 140. |
0Y10950616
|
[4] |
BOLT
|
0.4400(lbs); 0.200
|
| 150. |
0Y45050060
|
[4] |
WASHER,SPRING
|
0.0066(lbs); 0.003
|
| 160. |
TA24098480
|
[1] |
LABEL(ROPS WARNING)
|
0.0110(lbs); 0.005
|
| 160. |
TA24098482
|
[1] |
LABEL, ROPS WARNING LABEL
|
0.0110(lbs); 0.005
|
| 160. |
3A11298480
|
[1] |
LABEL,ROPS WARNING
|
0.0088(lbs); 0.004
|
| 170. |
99999-99999
|
[1] |
MANUAL,ASSEMBLY
|
0.0000(lbs); 0.000
|
| 180. |
TC05048773
|
[2] |
COVER,ROPS
|
0.0660(lbs); 0.030
|
| 190. |
99999-99999
|
[1] |
FRAME,LOWER LH
|
21.5160(lbs); 9.780
|
| 200. |
99999-99999
|
[1] |
ASSY FRAME,LOWER RH
|
0.0000(lbs); 0.000
|
| 210. |
99999-99999
|
[1] |
FRAME,MIDDLE LH
|
16.5000(lbs); 7.500
|
| 220. |
6C14054990
|
[1] |
REFLECTOR(LABEL)
|
0.0066(lbs); 0.003
|
| 230. |
99999-99999
|
[1] |
FRAME,MIDDLE RH
|
16.3680(lbs); 7.440
|
| 240. |
3A11195540
|
[1] |
LABEL,FLDNG ROPS CAUTION
|
0.0066(lbs); 0.003
|
| 240. |
3A11295540
|
[1] |
LABEL,ROPS CAUTION
|
0.0066(lbs); 0.003
|
| 250. |
6C14054990
|
[1] |
REFLECTOR(LABEL)
|
0.0066(lbs); 0.003
|
| 260. |
99999-99999
|
[1] |
FRAME,UPPER
|
0.0000(lbs); 0.000
|
| 270. |
99999-99999
|
[1] |
ASSY ROPS
|
0.0000(lbs); 0.000
|
| 280. |
99999-99999
|
[1] |
OPERATOR'S MANUAL
|
0.0550(lbs); 0.025
|
| 290. |
K256156850
|
[1] |
SEAT BELT, ASSY
|
1.7820(lbs); 0.810
|
| 300. |
6C07052760
|
[1] |
STAY,SEAT BELT LH
|
0.2530(lbs); 0.115
|
| 300. |
6C07052763
|
[1] |
STAY,SEAT BELT LH
|
0.6600(lbs); 0.300
|
| 310. |
6C04052770
|
[1] |
STAY,SEAT BELT RH
|
0.2200(lbs); 0.100
|
| 330. |
0113551025
|
[2] |
BOLT,W SEMS
|
0.0506(lbs); 0.023
|
