斗山零件查询MAIN PIPING(3) - FIXED TRACK SOLAR 015PLUS / S018-VT Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
314 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00592
|
[-] |

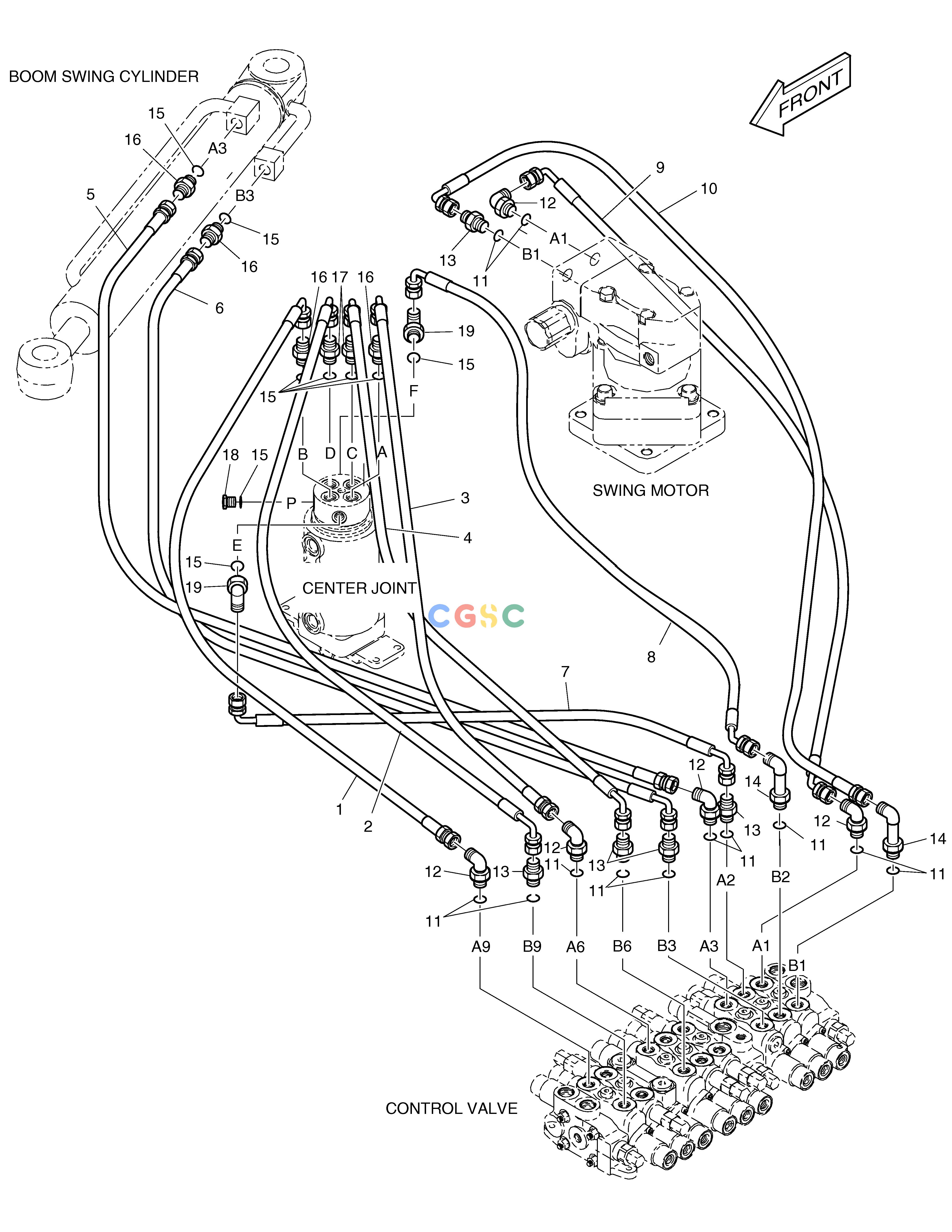

MAIN PIPING (3)
|
|
| 1. |
2184-1060D165
|
[1] |
HOSE PF1/4-350L
|
|
| 10. |
2184-1036D277
|
[1] |
HOSE PF1/4-750L
|
|
| 11. |
S8000141
|
[12] |
O-RING
|
|
| 12. |
2181-1702D10
|
[5] |
ELBOW
|
|
| 13. |
2181-1126D36
|
[5] |
ADAPTER
|
|
| 14. |
2181-1702D58
|
[2] |
ELBOW PFO3/8-PF1/4
|
|
| 15. |
S8000111
|
[9] |
O-RING
|
|
| 16. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 17. |
2181-1126D34
|
[2] |
ADAPTER
|
|
| 18. |
2181-1890D2
|
[1] |
PLUG
|
|
| 19. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 2. |
DS2058207
|
[1] |
HOSE PF1/4-460L
|
|
| 3. |
2184-1060D239
|
[1] |
HOSE PF1/4-280L
|
|
| 4. |
DS2058206
|
[1] |
HOSE PF1/4-380L
|
|
| 5. |
2184-1026D127
|
[1] |
HOSE PF1/4-750L
|
|
| 6. |
2184-1036D425
|
[1] |
HOSE PF1/4-800L
|
|
| 7. |
2184-1036D365
|
[1] |
HOSE PF1/4-320L
|
|
| 8. |
2184-1060D93
|
[1] |
HOSE PF1/4-400L
|
|
| 9. |
2184-1128D37
|
[1] |
HOSE PF1/4-610L
|
|
