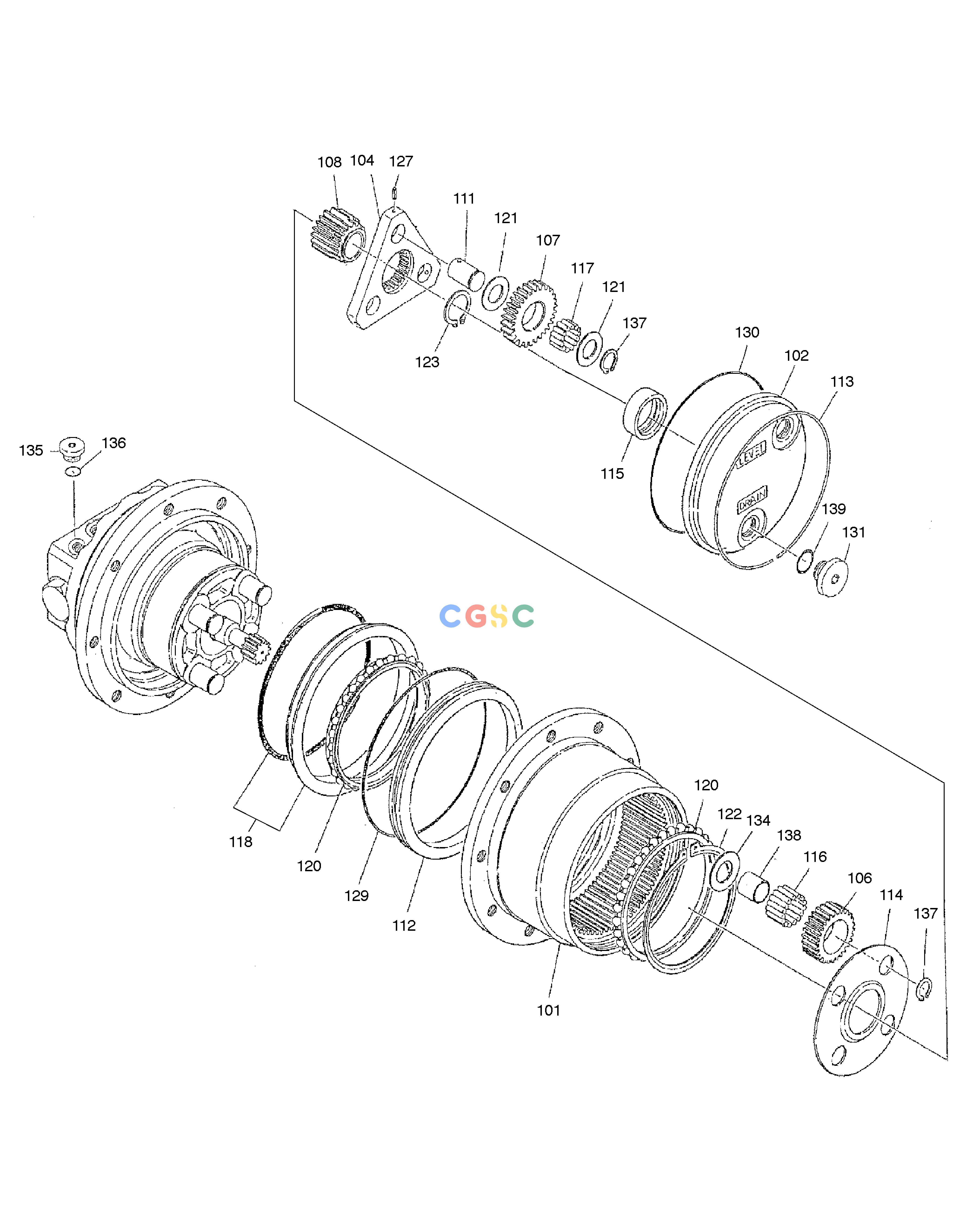

斗山零件查询TRAVEL REDUCTION GEAR SOLAR 015PLUS / S018-VT Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00422
|
[1] |
MOTOR;TRAVEL
|
|
| -. |
2.401-00059
|
[1] |
TRAVEL REDUCTION GEAR
|
|
| 101. |
2.402-00025
|
[1] |
BODY
|
|
| 102. |
2.430-00172
|
[1] |
COVER
|
|
| 104. |
NA00323
|
[1] |
|
|
| 106. |
2.404-00005
|
[4] |
GEAR;B1
|
|
| 107. |
NA00484
|
[3] |
|
|
| 108. |
NA00496
|
[1] |
|
|
| 111. |
NA00762
|
[3] |
|
|
| 112. |
2.180-01042
|
[1] |
RING;SEAL
|
|
| 113. |
2.115-00375
|
[1] |
RING;SNAP
|
|
| 114. |
2.412-00286
|
[1] |
PLATE;THRUST
|
|
| 115. |
2.109-00164
|
[1] |
RING;SIDE
|
|
| 116. |
2.115-00329
|
[60] |
NEEDLE
|
|
| 117. |
NA00604
|
[39] |
NEEDLE
|
|
| 118. |
2.427-00016
|
[1] |
SEAT;FLOATING
|
|
| 120. |
2.109-00057
|
[2] |
BEARING
|
|
| 121. |
NA01338
|
[6] |
|
|
| 122. |
2.115-00544
|
[1] |
RING;SNAP
|
|
| 123. |
NA00982
|
[1] |
. HEAD
|
|
| 127. |
NA00779
|
[3] |
BALL
|
|
| 129. |
S8011300
|
[1] |
O-RING
|
|
| 130. |
NA00643
|
[1] |
. O-RING
|
|
| 131. |
2.181-00196
|
[2] |
PLUG
|
|
| 134. |
2.114-01147
|
[4] |
WASHER;THRUST
|
|
| 135. |
2181-1890D2
|
[2] |
PLUG
|
|
| 136. |
S8000111
|
[2] |
O-RING
|
|
| 137. |
NA00982
|
[3] |
. HEAD
|
|
| 137. |
2.115-00374
|
[4] |
RING;SNAP
|
|
| 138. |
2.115-00105
|
[4] |
RING
|
|
| 139. |
S8000141
|
[2] |
O-RING
|
|
| C2. |
2.230-00001
|
[1] |
CARRIER 2 SUB ASS'Y
|
|
| C9-1. |
2.180-01234
|
[1] |
SEAL KIT;T/REDUCTION GEAR
|
|
