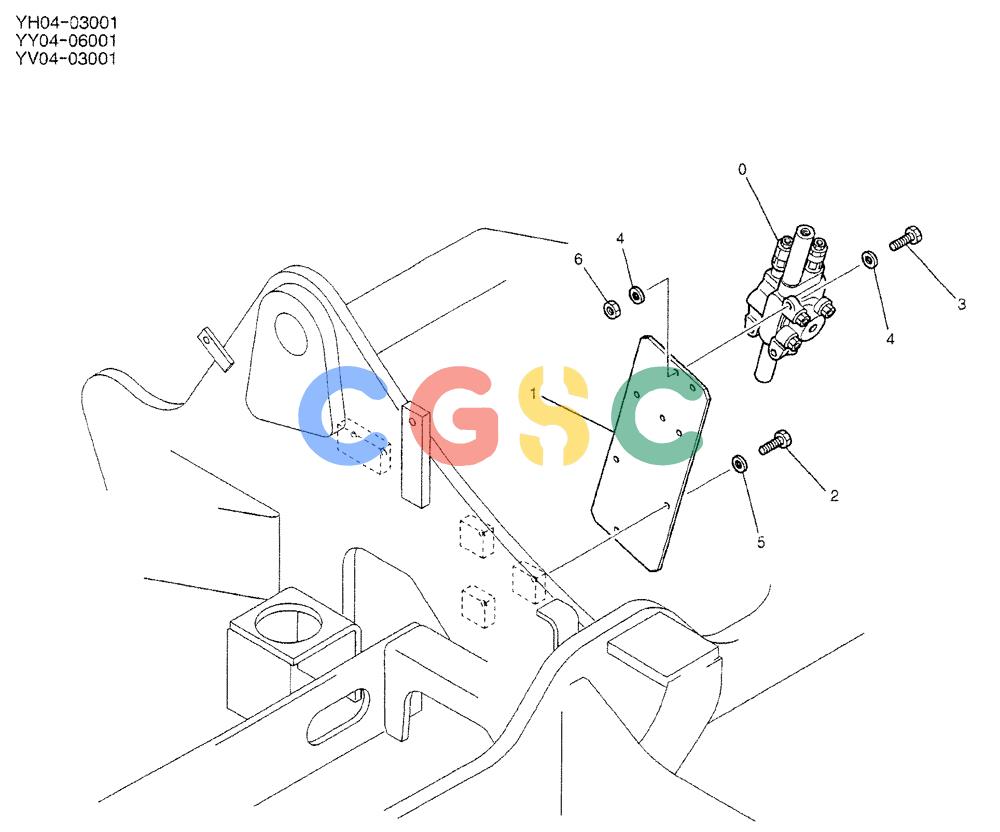

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (01-004) - VALVE INSTAL (YY30V00008F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
378 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YY30V00008F1 | [1] | VALVE | KOBASSY, CONTROL |
| . . | YV64H00007F1 | [1] | VALVE INSTAL | VALVE INSTAL |
| 1. | YV64H01034P1 | [1] | BRACKET | KOB |
| 2. | ZS18C12030 | [3] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 3. | ZS28C08035 | [3] | SCREW,Hex Socket Head, M8 x 35mm | KOBM08x1.25x35mm |
| 4. | ZW16H08000 | [6] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 5. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 6. | ZN18C08007 | [3] | NUT | KOBM08x1.25mm |
