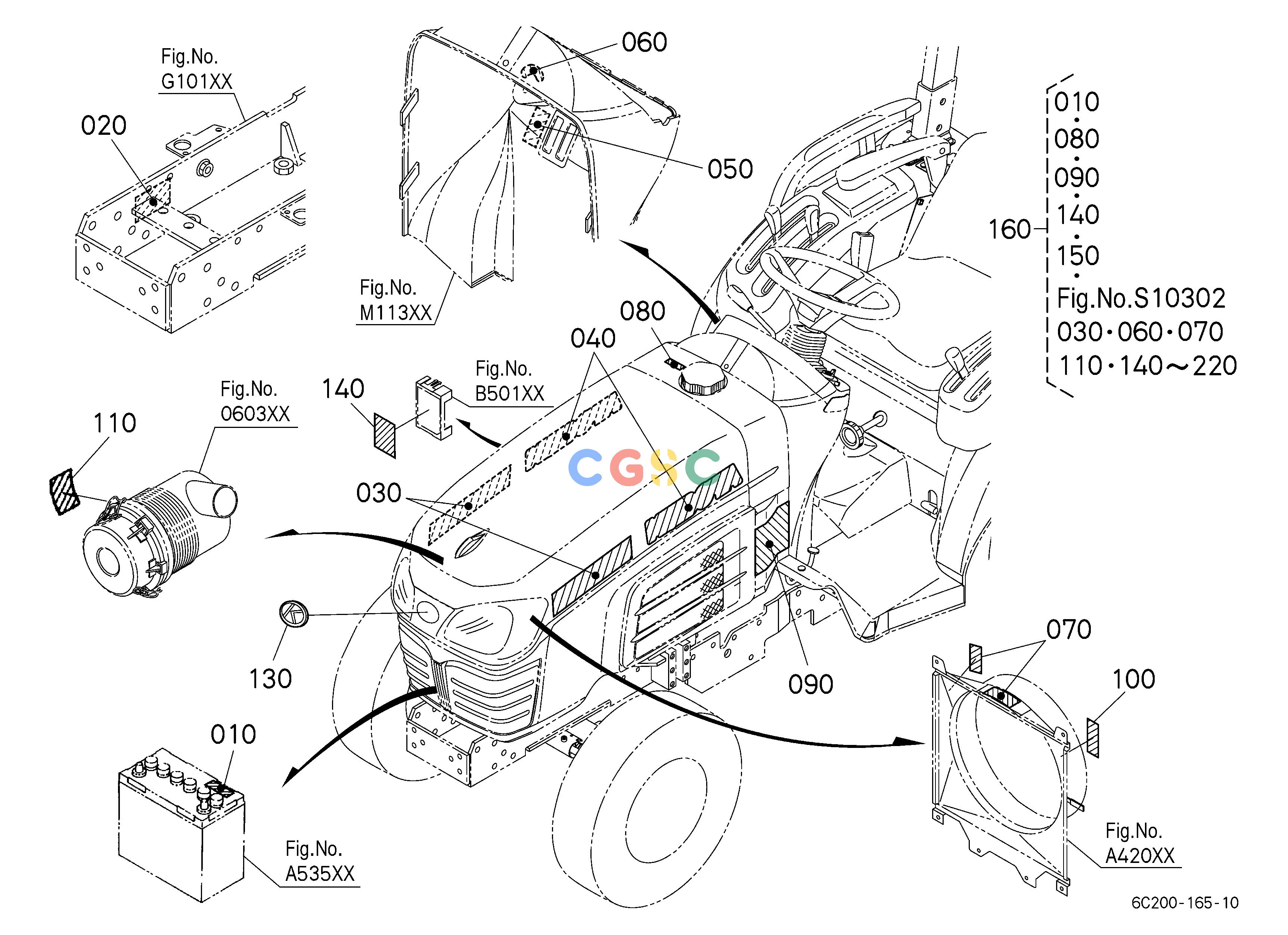

Pos.	Part No	Qty	Parts name	Comments
010.	6C02192120	[1]	LABEL,BATTERY	0.0022(lbs); 0.001
020.	99999-99999	[1]	NAME PLATE	0.0110(lbs); 0.005
030.	6C20047250	[2]	MARK	0.0220(lbs); 0.010
040.	TD06080930	[2]	LABEL(KUBOTA)	0.0154(lbs); 0.007
050.	6C04047512	[1]	LABEL,PARKING	0.0022(lbs); 0.001
060.	6C07047212	[1]	MARK,MAIN SWITCH	; <=52771 0.0022(lbs); 0.001
060.	6C07047213	[1]	MARK,MAIN SWITCH	; >=52772 0.0022(lbs); 0.001
070.	3275149580	[2]	LABEL,FAN BELT	0.0022(lbs); 0.001
080.	6C04047412	[1]	LABEL,FILLER CAUTION	; <=52710 0.0022(lbs); 0.001
080.	6C30147410	[1]	LABEL,FILLER CAUTION	; >=52711 0.0022(lbs); 0.001
090.	6C09149650	[1]	LABEL,START CAUTION	0.0044(lbs); 0.002
100.	TA04049580	[1]	LABEL,MUFFLER	0.0022(lbs); 0.001
110.	3272158282	[1]	LABEL,CAUTION	0.0022(lbs); 0.001
130.	T106049500	[1]	MARKING(K SYMBOL)	0.0220(lbs); 0.010
140.	6C20192110	[1]	LABEL,FUSE	0.0022(lbs); 0.001
150.	6C23192111	[1]	LABEL,FUSE	OUT OF USE; <=50890 0.0000(lbs); 0.000
150.	6C23192112	[1]	LABEL,FUSE	OUT OF USE; >=50891 0.0022(lbs); 0.001
160.	6C20192101	[1]	KIT LABEL	; <=50890 0.0000(lbs); 0.000
160.	6C20192102	[1]	KIT LABEL	; >=50891 0.6446(lbs); 0.293
160.	6C20192103	[1]	KIT LABEL	; >=51738 0.6446(lbs); 0.293
160.	6C20192104	[1]	KIT LABEL	; >=51827 0.6446(lbs); 0.293
160.	6C20192105	[1]	KIT LABEL	; >=51996 0.6446(lbs); 0.293
160.	6C20192106	[1]	KIT LABEL	; >=52711 0.6446(lbs); 0.293
160.	6C20192107	[1]	KIT LABEL	; >=52758 0.6446(lbs); 0.293
