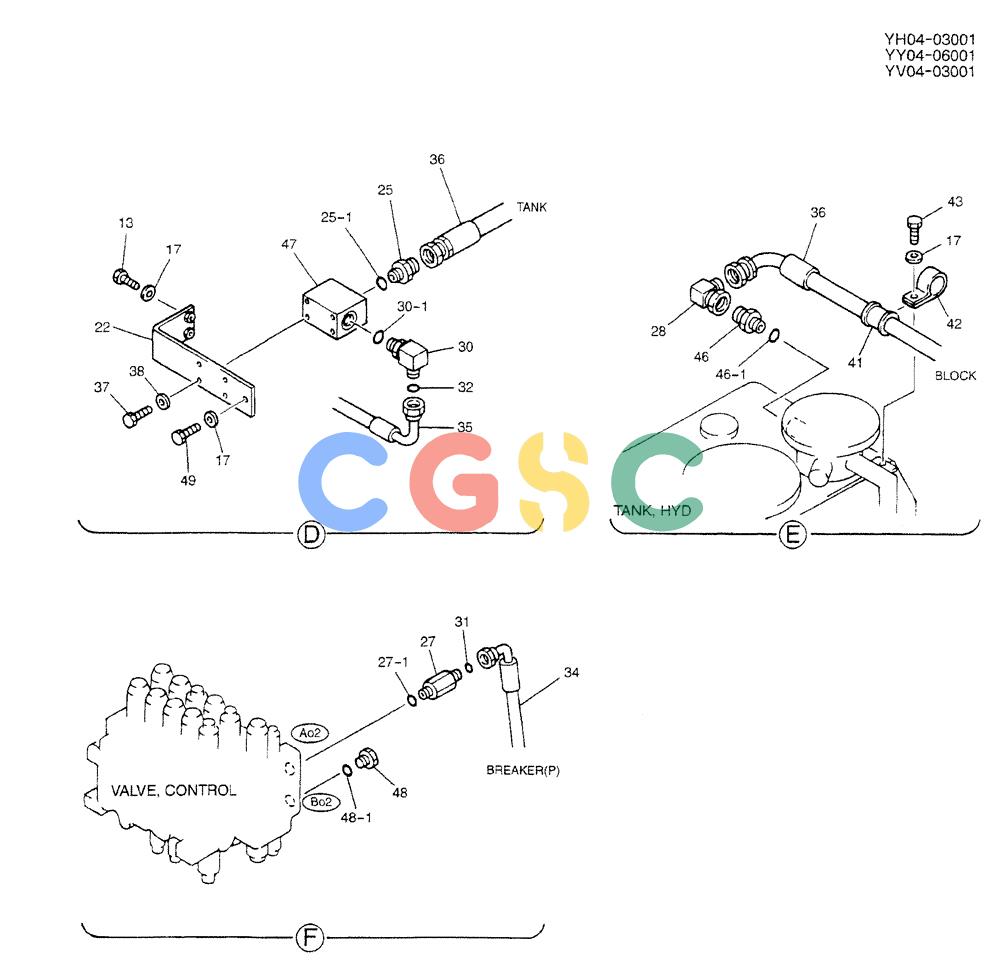

| . . | YY03H00052F2 | [1] | HYD LINES, UPP | |
| 1. | ZX25M08215 | [1] | HOSE | KOB |
| 2. | ZX25M08210 | [1] | HOSE ASSY. | KOB |
| 3. | ZX45M08060 | [1] | HOSE ASSY. | KOB |
| 5. | YN20M01046D8 | [1] | PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 1400.00mm | KOBProtective Plastic |
| 7. | YR03H01121P1 | [1] | CONNECTION | KOB(Incls. O-Ring ZD12P01800) |
| 7-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 8. | ZX45M08052 | [1] | HOSE | KOB |
| 9. | YX03H01046P1 | [2] | CLIP | KOBWire, Tie -- 564mm Long (22-13/64 in) |
| 10. | YX03H01051P1 | [1] | BUSHING | KOB |
| 11. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 11-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | 2444Z3713 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 12-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 13. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 14. | ZX25M08140 | [1] | HOSE | KOB |
| 15. | ZH32X08000 | [5] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
| 15-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 16. | YV03H01048P2 | [1] | U-BRACKET | KOB |
| 17. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 18. | ZH42X08000 | [3] | 45 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 45° -- (Incls. O-Ring ZD12P01800) |
| 18-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 19. | 2444Z3715 | [1] | 90 ELBOW | KOB90° -- 1/2" PF x 56mm Long (Incls. O-Ring ZD12P01800) |
| 19-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 20. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| 21. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 22. | YV03H01058P1 | [1] | BRACKET | KOB |
| 24. | YX03H01075P1 | [1] | BUSHING | KOB |
| 25. | YV03H01039P1 | [1] | CONNECTION | KOB1" PF x 3/4" PF x 55.5mm Long (Incls. O-Ring ZD12P02400) |
| 25-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 27. | HG24F10012G3 | [1] | HYD CONNECTOR | KOB1"-14UNS - 3/4"PT x 90mm Long (Incls. O-Ring ZD12P02400) |
| 27-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 28. | 2444R596D6 | [1] | ELBOW | KOB90° -- 1" PF |
| 30. | ZG33F12012 | [1] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB90° -- 1-3/16" -12UN x 3/4" PF (Incls. O-Ring ZD12P02400) |
| 30-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 31. | ZD12A01600 | [1] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 32. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 34. | YX03H01099P1 | [1] | HOSE | KOB |
| 35. | YY03H01063P1 | [1] | HOSE | KOB |
| 36. | YX06H01003D2 | [1] | HOSE | KOB850mm Long (33-29/64 in) |
| 37. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 38. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 40. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1 |
| 41. | YX32H01011P1 | [1] | BUSHING,33mm ID x 49mm OD x 50mm L | KOBID 33 x OD 43 x 50mm Long |
| 42. | ZC46X46014 | [1] | CLIP | KOBClamp -- Ø46mm Single Cable |
| 43. | ZS18C12020 | [1] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 46. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 46-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 47. | YV03H01023P1 | [1] | BLOCK | KOB |
| 48. | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 48-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 49. | ZS18C12035 | [1] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 50. | HH55Q08008G3 | [2] | TEE,PF 1/2" x PF 1/2", O-Ring | KOB(PF 1/2) (Incls. O-Ring ZD12P01800) |
| 51. | HH55Q08008G1 | [1] | TEE | KOB |
| 52. | PY30H01008P1 | [1] | TEE,PF 1/2" x PF 1/2" | KOB |
| 53. | HH25R08008G1 | [1] | HYD CONNECTOR | KOB1/2" PF (Incls. O-Ring ZD12P01800) 106mm Long |
| 53-1. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 54. | HH25R08004G1 | [1] | HYD CONNECTOR | KOB1/4"PFx1/2"PFx36mm Long (Incls. O-Ring ZD12P01800) |
| 55. | LC52S00012P1 | [1] | SENSOR | KOBPressure (High Pressure) (replaced by LS52S00015P1) Superseded by part number: YY52S00033F1 |
| 55. | LS52S00015P1 | [2] | SENSOR | KOB(New part #) (Added by SB S030-41-K003) |
| 55-0. | YY52S00033F1 | [1] | PRESSURE SWITCH | KOBKit Includes Ref 55 - 55-3 (Refer to SB S030-41-K003) |
| 55-1. | LS30H01024P1 | [1] | HYD CONNECTOR | SM(Added with new part # press switch) |
| 55-2. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 55-3. | YT42H01128P1 | [1] | 90 ELBOW | KOB(Added with new part # press switch) |
| 56. | YY20V00003F1 | [1] | VALVE | KOBASSY, HYD |
| 57. | YY03H01123P1 | [1] | TUBE | KOB |
| 58. | YT19H01016P1 | [2] | CONNECTION | KOB Superseded by part number: ZA28F18008 |
| 59. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
