斗山零件查询MAIN PIPING(1)-PUMP SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
488 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

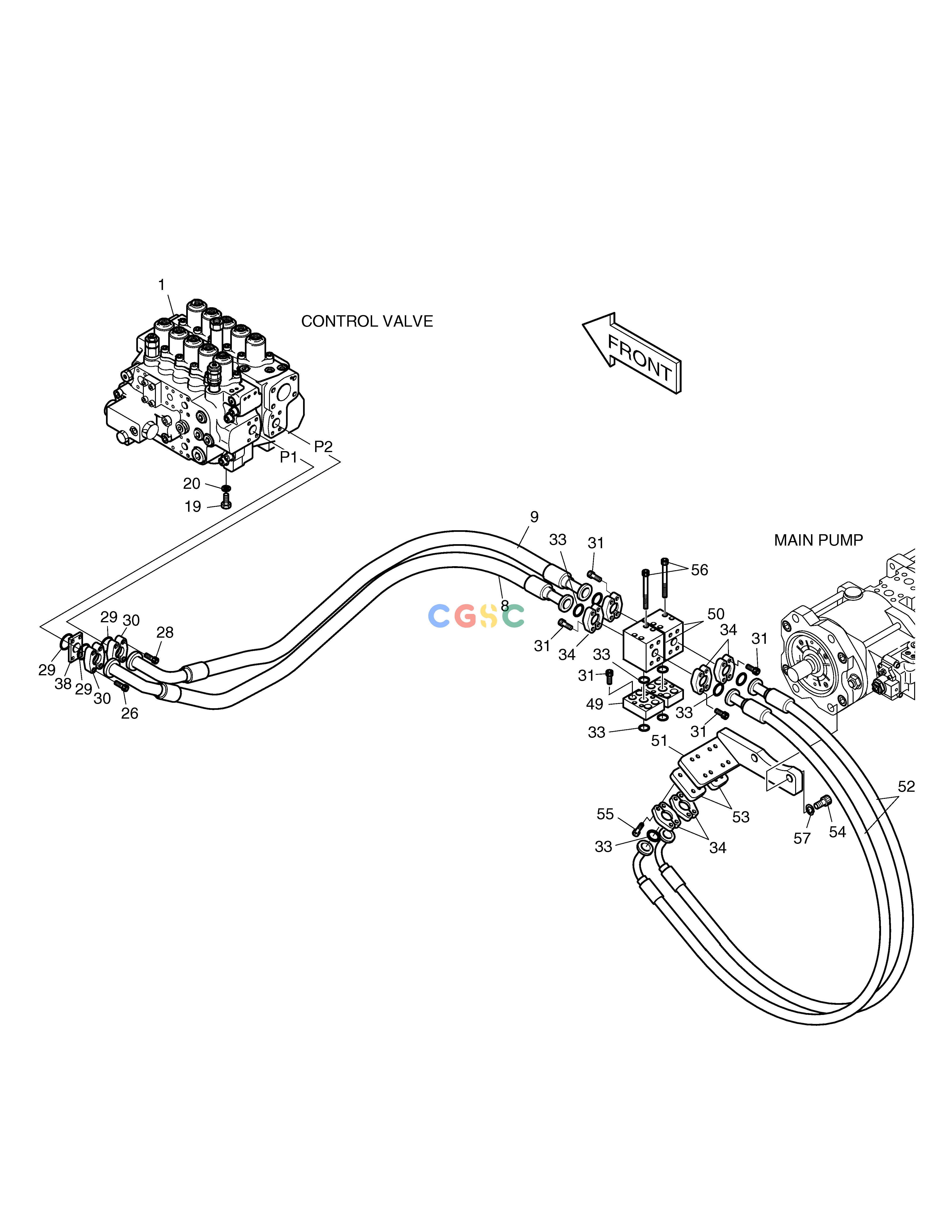

2400-1759B
|
[-] |
MAIN PIPING
|
|
| 1. |
426-00064B
|
[1] |
VALVE;CONTROL
|
|
| 19. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 20. |
S5102703
|
[4] |
WASHER
|
|
| 26. |
S2212466
|
[4] |
BOLT
|
|
| 28. |
S2212266
|
[4] |
BOLT
|
|
| 29. |
2180-1026D19
|
[3] |
O-RING
|
|
| 30. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 31. |
S2212066
|
[24] |
BOLT
|
|
| 33. |
2180-1026D2
|
[10] |
O-RING
|
|
| 34. |
2181-9079
|
[1] |
FLANGE
|
|
| 38. |
2181-2620
|
[1] |
BLOCK;SPACER
|
|
| 49. |
2423-1554A
|
[2] |
BLOCK
|
|
| 50. |
2423-1556
|
[2] |
BLOCK
|
|
| 51. |
2197-2496B
|
[1] |
BRACKET
|
|
| 52. |
2184-1100D167
|
[2] |
HOSE PF3/4-1300L
|
|
| 53. |
2181-2532D4
|
[2] |
FLANGE;COVER
|
|
| 54. |
S2227966
|
[2] |
BOLT;SOCKET M20X2.5X65
|
|
| 55. |
S2212566
|
[8] |
BOLT
|
|
| 56. |
S2213466
|
[8] |
SOCKET-HEAD BOLT
|
|
| 57. |
S5111103
|
[2] |
WASHER;SPRING
|
|
| 8. |
2184-1100D165
|
[1] |
HOSE PF3/4-1130L
|
|
| 9. |
2184-1100D166
|
[1] |
HOSE PF3/4-1150L
|
|
