斗山零件查询MAIN PIPING(3)-ARM,BUCKET SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
448 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

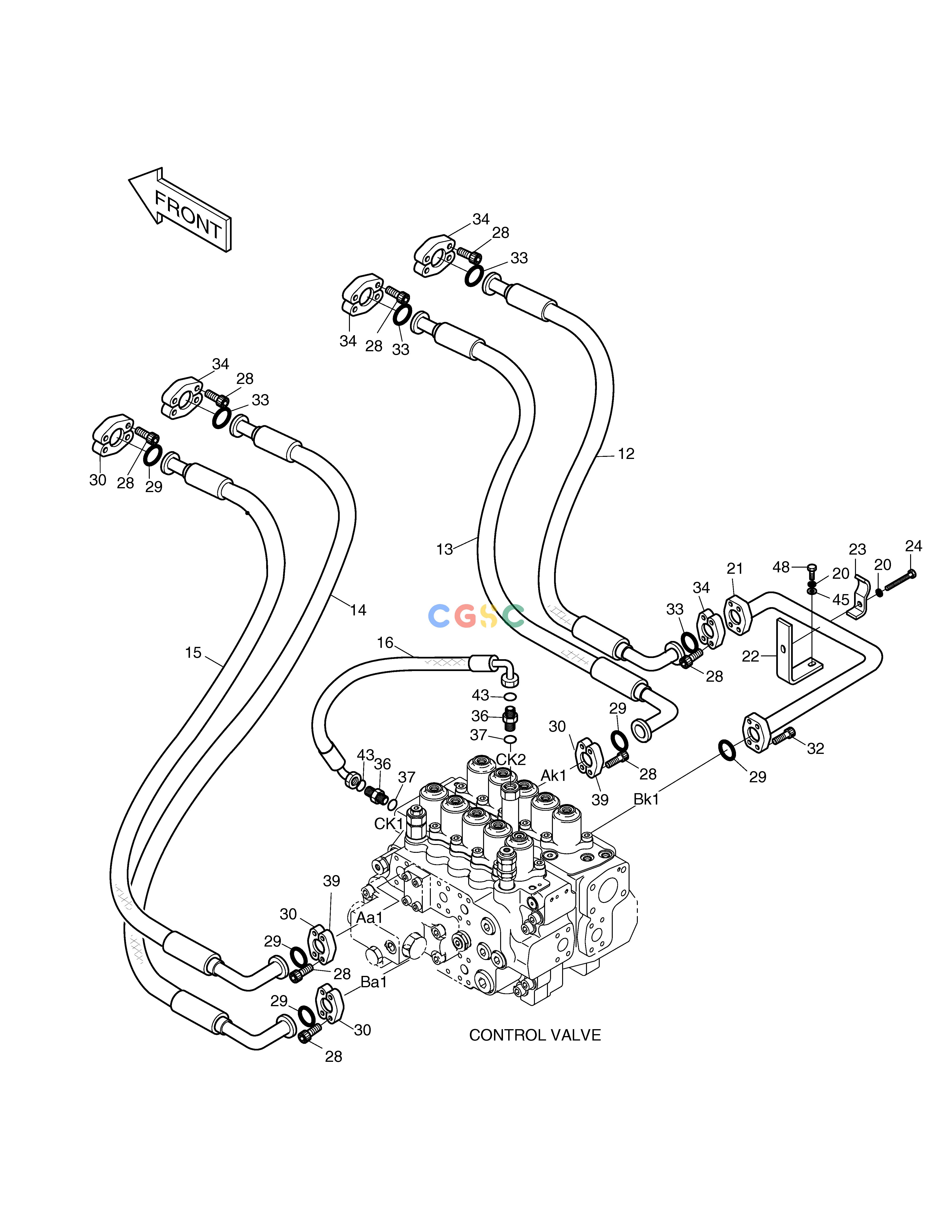

2400-1759B
|
[-] |
MAIN PIPING
|
|
| 12. |
2184-1250D36
|
[1] |
HOSE PF3/4-1500L
|
|
| 13. |
2184-1250D21
|
[1] |
HOSE PF1 3/4-1700L
|
|
| 14. |
2184-1250D22
|
[1] |
HOSE PF1 3/4-1550L
|
|
| 15. |
2184-1250D23
|
[1] |
HOSE PF1-1550L
|
|
| 16. |
2184-1198D30
|
[1] |
HOSE PF1/2-520L
|
|
| 20. |
S5102703
|
[2] |
WASHER
|
|
| 21. |
2140Y1205-A
|
[1] |
PIPE
|
|
| 22. |
2197-1411B
|
[1] |
BRACKET
|
|
| 23. |
2124-1026D3
|
[1] |
CLAMP;PIPE
|
|
| 24. |
S0560953
|
[1] |
BOLT M12X1.75X60
|
|
| 28. |
S2212266
|
[36] |
BOLT
|
|
| 29. |
2180-1026D19
|
[5] |
O-RING
|
|
| 30. |
2181-9078
|
[6] |
FLANGE;SPLIT
|
|
| 32. |
S2212366
|
[4] |
BOLT
|
|
| 33. |
2180-1026D2
|
[4] |
O-RING
|
|
| 34. |
181-00095
|
[8] |
FLANGE
|
|
| 36. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 37. |
S8000181
|
[2] |
O-RING
|
|
| 39. |
2181-9083
|
[2] |
FLANGE;SPLIT
|
|
| 43. |
S8030081
|
[2] |
O-RING
|
|
| 45. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 48. |
S0515453
|
[1] |
BOLT
|
|
