沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsAquamatic Drive Unit: DRIVE 280EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |

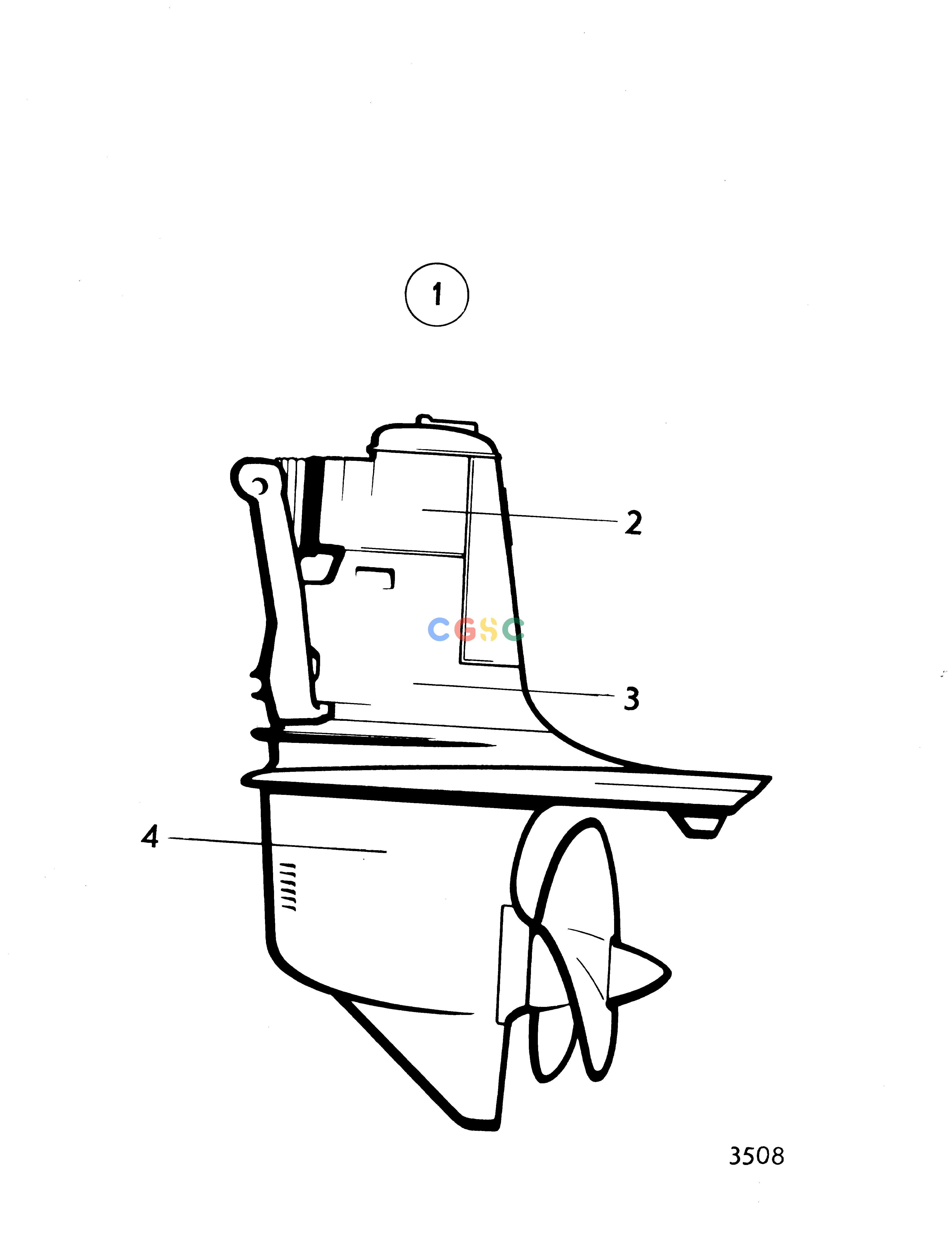

| 1. |
|
|
|
PZ-2890112., Replaced by 1pc 851317, 1pc 851267., Ratio 1,61:1
|
| 1. |
850354
|
[1] |
Drive
|
PZ-2898014., Replaced by 1pc 851317, 1pc 851267., Ratio 1,61:1
|
| 1. |
851317
|
[1] |
Drive
|
PZ 2898015-., Replaced by 852161., Ratio 1,61:1
|
| 1. |
852161
|
[1] |
Drive
|
Ratio 1,61:1
|
| 2. |
|
|
|
Replaced by 1pc 851340, 1pc 851267., Included in AQ drive unit 839400.
|
| 2. |
850460
|
[1] |
Upper gear, upper gear unit
|
Replaced by 1pc 851340, 1pc 851267., Included in AQ drive unit 850354.
|
| 2. |
851340
|
[1] |
Upper gear, upper gear unit
|
Included in AQ drive unit 851317 and 852161.
|
| 3. |
7744060_105
|
|
interm housing
|
|
| 4. |
839390
|
[1] |
Lower gear, lower gear unit
|
Ratio 1,61:1
|
| 4. |
875192
|
[1] |
Gasket kit
|
See group 10A
|
