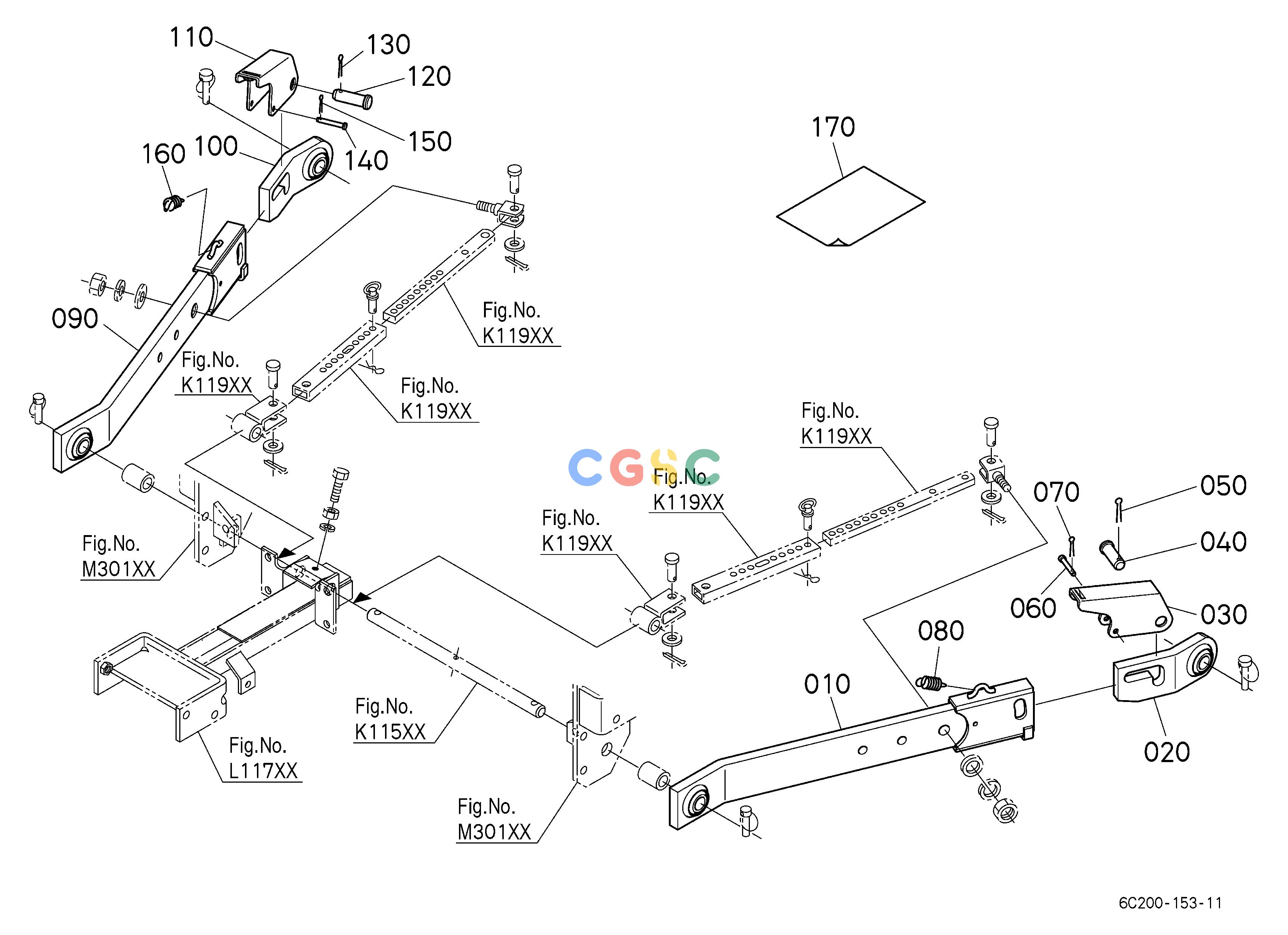

久保田零件查询U87300 LOWER LINK KIT (W/G.No.B2677) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C17065410
|
[1] |
COMP.LINK,LOWER LH
|
10.3400(lbs); 4.700
|
| 020. |
6C17065424
|
[1] |
COMP.LINK,LOWER LH
|
2.8600(lbs); 1.300
|
| 030. |
6C17065430
|
[1] |
LEVER
|
0.5060(lbs); 0.230
|
| 040. |
6C17065450
|
[1] |
PIN
|
0.1760(lbs); 0.080
|
| 050. |
0551150530
|
[1] |
PIN,SPLIT
|
0.0132(lbs); 0.006
|
| 060. |
0512250645
|
[1] |
PIN,JOINT
|
0.0220(lbs); 0.010
|
| 070. |
0551151615
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 080. |
6C17065440
|
[1] |
SPRING
|
0.0286(lbs); 0.013
|
| 090. |
6C17065510
|
[1] |
COMP.LINK,LOWER RH
|
10.3400(lbs); 4.700
|
| 100. |
6C17065524
|
[1] |
COMP.LINK,LOWER RH
|
2.7940(lbs); 1.270
|
| 110. |
6C17065430
|
[1] |
LEVER
|
0.5060(lbs); 0.230
|
| 120. |
6C17065450
|
[1] |
PIN
|
0.1760(lbs); 0.080
|
| 130. |
0551150530
|
[1] |
PIN,SPLIT
|
0.0132(lbs); 0.006
|
| 140. |
0512250645
|
[1] |
PIN,JOINT
|
0.0220(lbs); 0.010
|
| 150. |
0551151615
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 160. |
6C17065440
|
[1] |
SPRING
|
0.0286(lbs); 0.013
|
| 170. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
