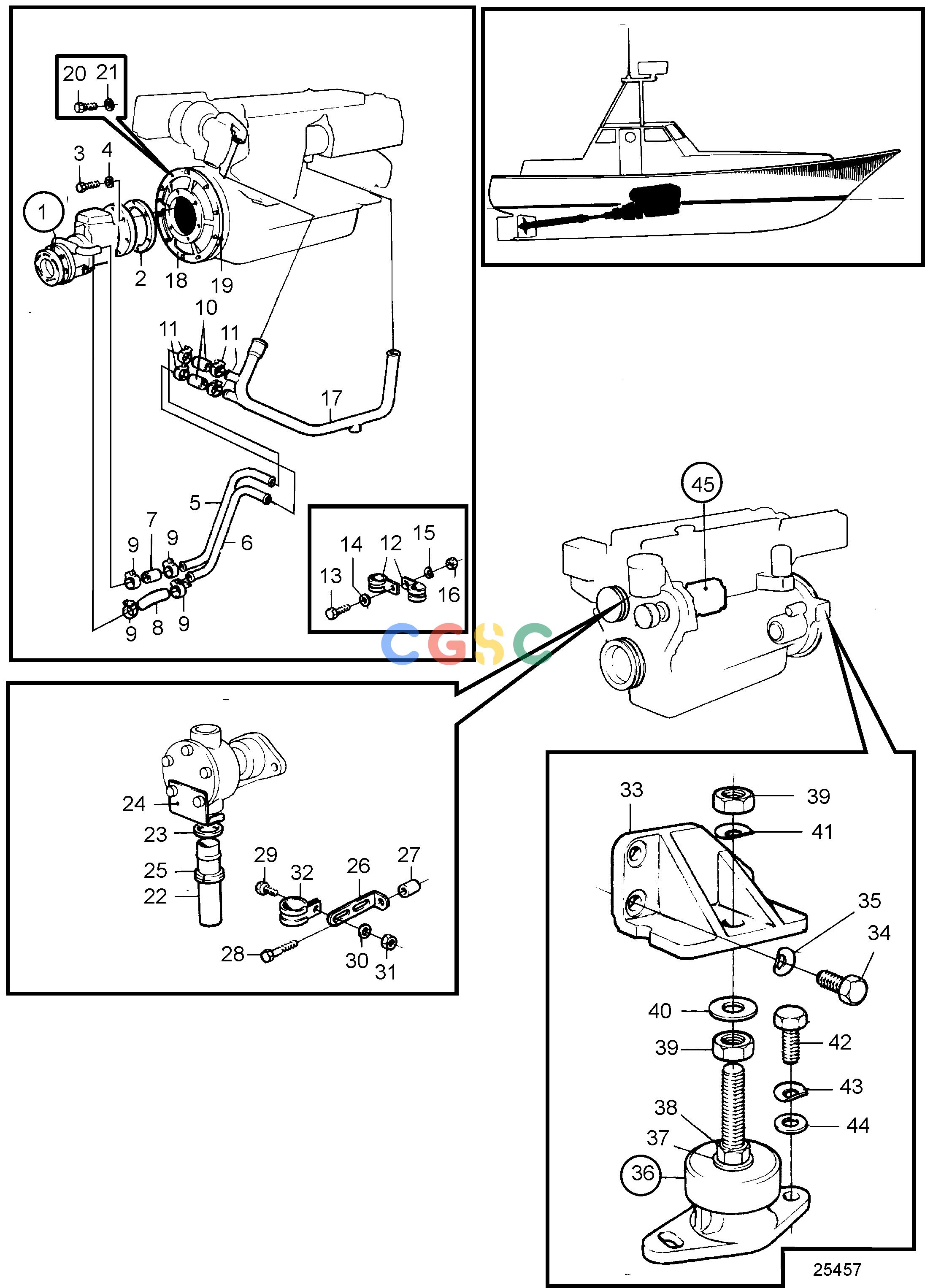

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsCommercial Use Connecting Components, Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852502
|
[1] |
Reversing gear
|
Replaced by reverse gear-853398 and connection kit-853772
|
| 1. |
|
|
|
See group 4B
|
| 1. |
852503
|
[1] |
Reversing gear
|
Replaced by reverse gear-853399 and connection kit-853772, Ratio 2,73:1
|
| 2. |
803921
|
[1] |
Gasket
|
|
| 3. |
955319
|
[6] |
Hexagon screw
|
|
| 4. |
941908
|
[6] |
Spring washer
|
|
| 5. |
845841
|
[1] |
Coolant pipe
|
|
| 6. |
845842
|
[1] |
Coolant pipe
|
|
| 7. |
949315
|
[1] |
Rubber hose
|
L=70mm
|
| 8. |
845792
|
[1] |
Connecting hook
|
|
| 9. |
994561
|
[4] |
Hose clamp
|
|
| 10. |
941799
|
[2] |
Hose
|
L=65mm
|
| 11. |
994560
|
[4] |
Hose clamp
|
|
| 12. |
468684
|
[2] |
Attaching plate
|
|
| 13. |
940132
|
[1] |
Hexagon screw
|
|
| 14. |
955894
|
[1] |
Washer
|
|
| 15. |
941907
|
[1] |
Spring washer
|
|
| 16. |
963106
|
[1] |
Lock nut
|
|
| 17. |
858039
|
[1] |
Coolant pipe
|
|
| 18. |
829489
|
[1] |
Cap
|
|
| 19. |
829488
|
[1] |
Gasket
|
|
| 20. |
955319
|
[11] |
Hexagon screw
|
|
| 21. |
941908
|
[11] |
Spring washer
|
|
| 22. |
845357
|
[1] |
Coolant pipe
|
|
| 23. |
845354
|
[1] |
Sealing ring
|
|
| 24. |
845961
|
[1] |
Lock brace
|
|
| 25. |
838554
|
[1] |
Pipe retainer
|
|
| 26. |
965561
|
[1] |
Bracket
|
|
| 27. |
842350
|
[1] |
Spacer sleeve
|
|
| 28. |
955300
|
[1] |
Hexagon screw
|
|
| 29. |
955271
|
[1] |
Hexagon screw
|
|
| 30. |
955892
|
[1] |
Washer
|
|
| 31. |
955781
|
[1] |
Hexagon nut
|
|
| 32. |
952641
|
[1] |
Clamp
|
|
| 33. |
829515
|
[1] |
Engine bracket
|
P
|
| 33. |
829516
|
[1] |
Engine bracket
|
S.B
|
| 34. |
955341
|
[6] |
Hexagon screw
|
|
| 35. |
940143
|
[6] |
Toothed washer
|
|
| 36. |
829976
|
[4] |
Rubber element
|
|
| 37. |
955900
|
[4] |
Washer
|
|
| 38. |
829567
|
[4] |
Adjusting bolt
|
|
| 39. |
955805
|
[8] |
Hexagon nut
|
|
| 40. |
191940
|
[8] |
Washer
|
|
| 41. |
829892
|
[16] |
Lock washer
|
|
| 42. |
955321
|
[8] |
Hexagon screw
|
|
| 43. |
941908
|
[8] |
Spring washer
|
|
| 44. |
960148
|
[8] |
Washer
|
|
| 45. |
838497
|
[1] |
Injection pump
|
|
