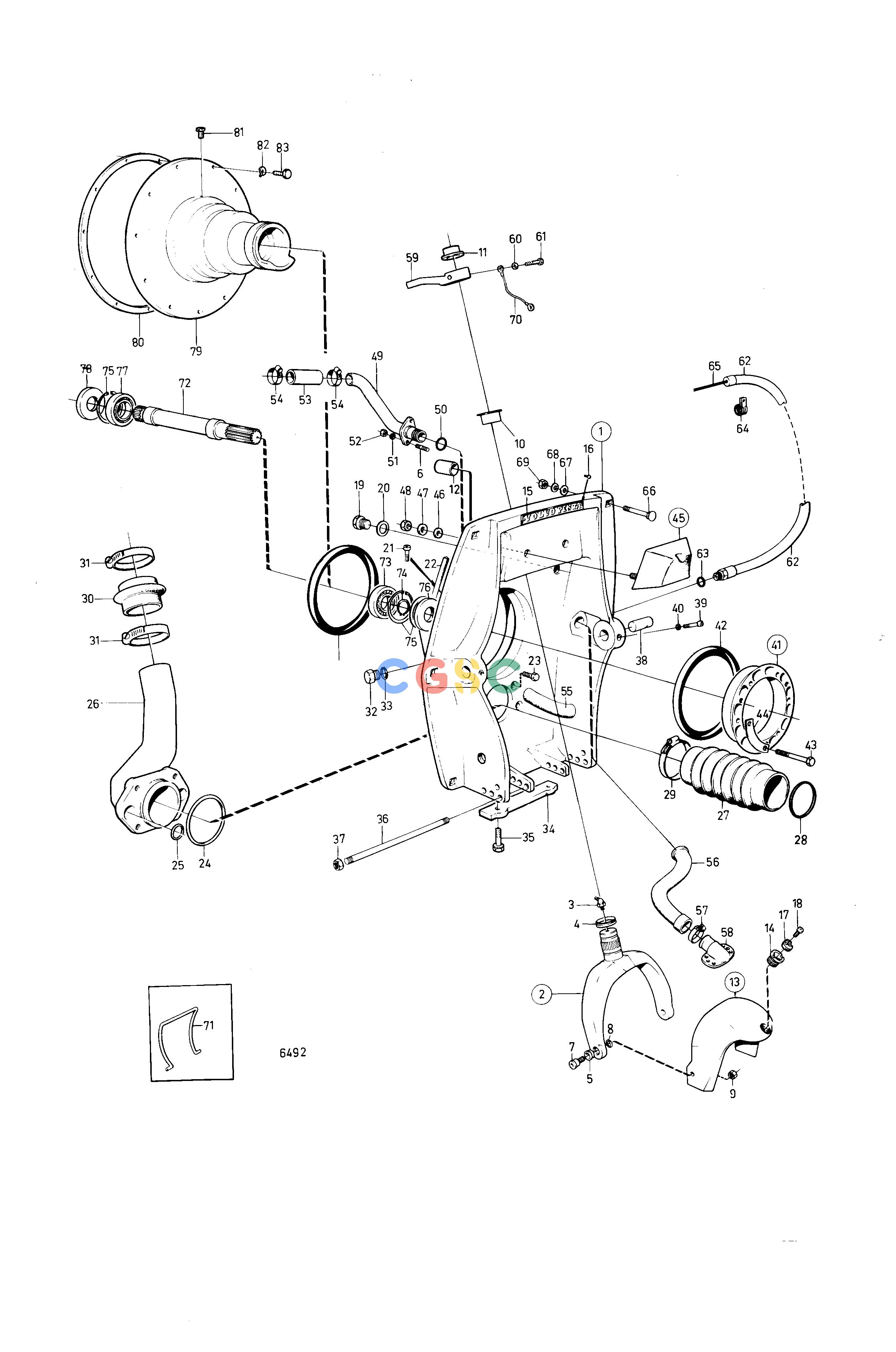

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsConnecting Components 280DPEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
875672
|
[1] |
Shield
|
|
| 2. |
839441
|
[1] |
Steering yoke
|
|
| 3. |
914169
|
[1] |
Lubricating nipple
|
|
| 4. |
839195
|
[1] |
Ring
|
|
| 5. |
814640
|
[2] |
Bushing
|
|
| 6. |
941872
|
[2] |
Stud
|
|
| 7. |
897798
|
[2] |
Shoulder screw
|
|
| 8. |
897244
|
[2] |
Washer
|
|
| 9. |
943152
|
[2] |
Nut
|
|
| 10. |
853863
|
[1] |
Bushing
|
(853496)
|
| 11. |
853864
|
[1] |
Bushing
|
(853497)
|
| 12. |
850653
|
[1] |
Bushing
|
See group 6
|
| 13. |
851267
|
[1] |
Protective helmet
|
|
| 14. |
851262
|
[1] |
Bushing
|
For bearing pin with 2 bolts., Repl by 853048
|
| 14. |
853048
|
[1] |
Bushing
|
For bearing pin with 2 bolts.
|
| 15. |
832608
|
[1] |
Plate
|
|
| 16. |
804269
|
[2] |
Drive screw
|
|
| 17. |
852705
|
[1] |
Pivot pin
|
|
| 18. |
941807
|
[2] |
Hex. socket screw
|
|
| 19. |
897744
|
[1] |
Plug
|
|
| 20. |
897745
|
[1] |
Gasket
|
|
| 21. |
956568
|
[2] |
Hex. socket screw
|
See group 9
|
| 22. |
897726
|
[1] |
Sealing strip
|
|
| 23. |
959967
|
[4] |
Hexagon screw
|
|
| 24. |
925256
|
[1] |
O-ring
|
|
| 25. |
925055
|
[4] |
O-ring
|
|
| 26. |
842962
|
[1] |
Exhaust grommet
|
|
| 27. |
875848
|
[1] |
Bellows kit
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
961675
|
[2] |
Hose clamp
|
|
| 30. |
843228
|
[1] |
Exhaust hose
|
See group 2B
|
| 31. |
943483
|
[2] |
Hose clamp
|
See group 2B
|
| 32. |
897744
|
[1] |
Plug
|
|
| 33. |
897745
|
[1] |
Gasket
|
|
| 34. |
832598
|
[1] |
Zinc anode
|
|
| 35. |
959438
|
[2] |
Hex. socket screw
|
|
| 36. |
814301
|
[1] |
Adjusting pin
|
|
| 37. |
814357
|
[2] |
Flange nut
|
|
| 38. |
853175
|
[2] |
Pivot pin
|
(897831)
|
| 39. |
941873
|
[2] |
Hex. socket screw
|
|
| 40. |
941670
|
[2] |
Washer
|
|
| 41. |
843626
|
[1] |
Mounting kit
|
|
| 42. |
813967
|
[2] |
Rubber ring
|
|
| 43. |
191844
|
[6] |
Hexagon screw
|
|
| 44. |
806624
|
[3] |
Striker plate
|
|
| 45. |
875531
|
[1] |
Rubber cushion
|
|
| 46. |
832565
|
[2] |
Gasket
|
|
| 47. |
940097
|
[2] |
Washer
|
(960142)
|
| 48. |
950364
|
[2] |
Lock nut
|
|
| 49. |
850729
|
[1] |
Water inlet
|
|
| 50. |
925063
|
[1] |
O-ring
|
|
| 51. |
955893
|
[2] |
Washer
|
|
| 52. |
950352
|
[2] |
Lock nut
|
|
| 53. |
941799
|
[1] |
Hose
|
L=400mm
|
| 54. |
22274885
|
[2] |
Hose clamp
|
See group 2B
|
| 55. |
843235
|
[2] |
Exhaust pipe
|
|
| 56. |
875822
|
[1] |
Hose kit
|
(897599)
|
| 56. |
|
|
|
|
| 57. |
853548
|
[2] |
Hose clamp
|
(961668)
|
| 58. |
851766
|
[1] |
Hose connection
|
See group 4C
|
| 59. |
850488
|
[1] |
Steering arm
|
See group 6
|
| 60. |
940097
|
[1] |
Washer
|
|
| 61. |
955537
|
[1] |
Hexagon screw
|
|
| 62. |
839091
|
[1] |
Protecting hose
|
|
| 63. |
897745
|
[1] |
Gasket
|
|
| 64. |
952635
|
[1] |
Clamp
|
|
| 65. |
|
|
|
See group 9
|
| 66. |
943426
|
[6] |
Screw
|
|
| 67. |
850418
|
[6] |
O-ring
|
|
| 68. |
190878
|
[6] |
Washer
|
|
| 69. |
940176
|
[6] |
Hexagon nut
|
|
| 70. |
|
|
|
|
| 71. |
897824
|
[1] |
Transport lock
|
For transport.
|
| 72. |
839425
|
[1] |
Spindle
|
|
| 73. |
181105
|
[1] |
Ball bearing
|
|
| 74. |
914462
|
[1] |
Snap ring
|
|
| 75. |
914533
|
[3] |
Snap ring
|
|
| 76. |
958860
|
[1] |
Sealing ring
|
|
| 77. |
|
|
|
|
| 78. |
958860
|
[1] |
Sealing ring
|
|
| 79. |
844519
|
[1] |
Flywheel housing
|
See group 2A
|
| 80. |
829488
|
[1] |
Gasket
|
|
| 81. |
804262
|
[1] |
Plug
|
|
| 82. |
941908
|
[11] |
Spring washer
|
|
| 83. |
955319
|
[11] |
Hexagon screw
|
|
