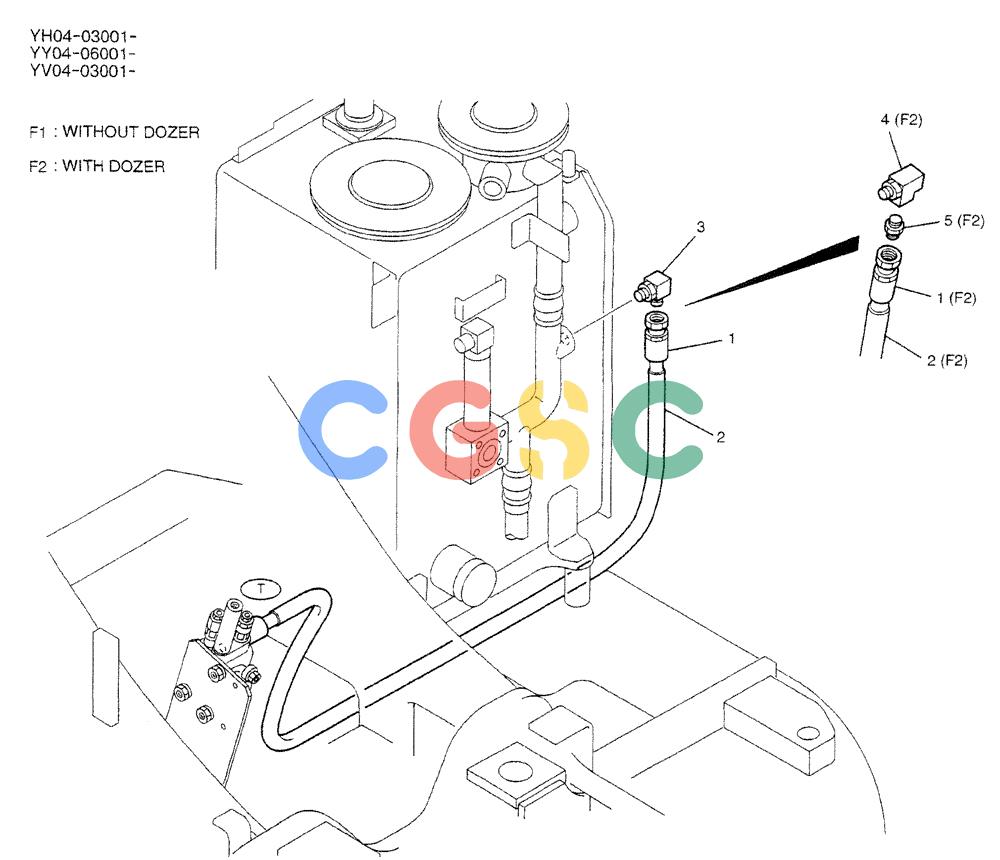

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (01-016) - HYD LINES, RETURN (EXTRA, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY32H00006F1 | [1] | HYD LINES, RETURN (WITHOUT DOZER) | |
| . . | YY32H00006F2 | [1] | HYD LINES, RETURN (WITH DOZER) | |
| 1. | ZX23M08185 | [1] | HOSE | KOB |
| 2. | YN20M01046D9 | [1] | PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 1700.00mm | KOBProtective Plastic |
| 3. | ZH32X08012 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 3/4", O-Ring | KOB90° -- 1/2"PFx3/4"PFx66mm Long (Incls. O-Ring ZD12P02400), (F1 Only) |
| 4. | HH55Q12012G2 | [1] | TEE | KOB3/4"PFx86mm Long (Incls. O-Ring ZD12P02400), (F2 ONLY) |
| 5. | ZH22X08012 | [1] | HYD CONNECTOR | KOB1/2"PFx3/4"PFx52mm Long, (F2 Only) |
