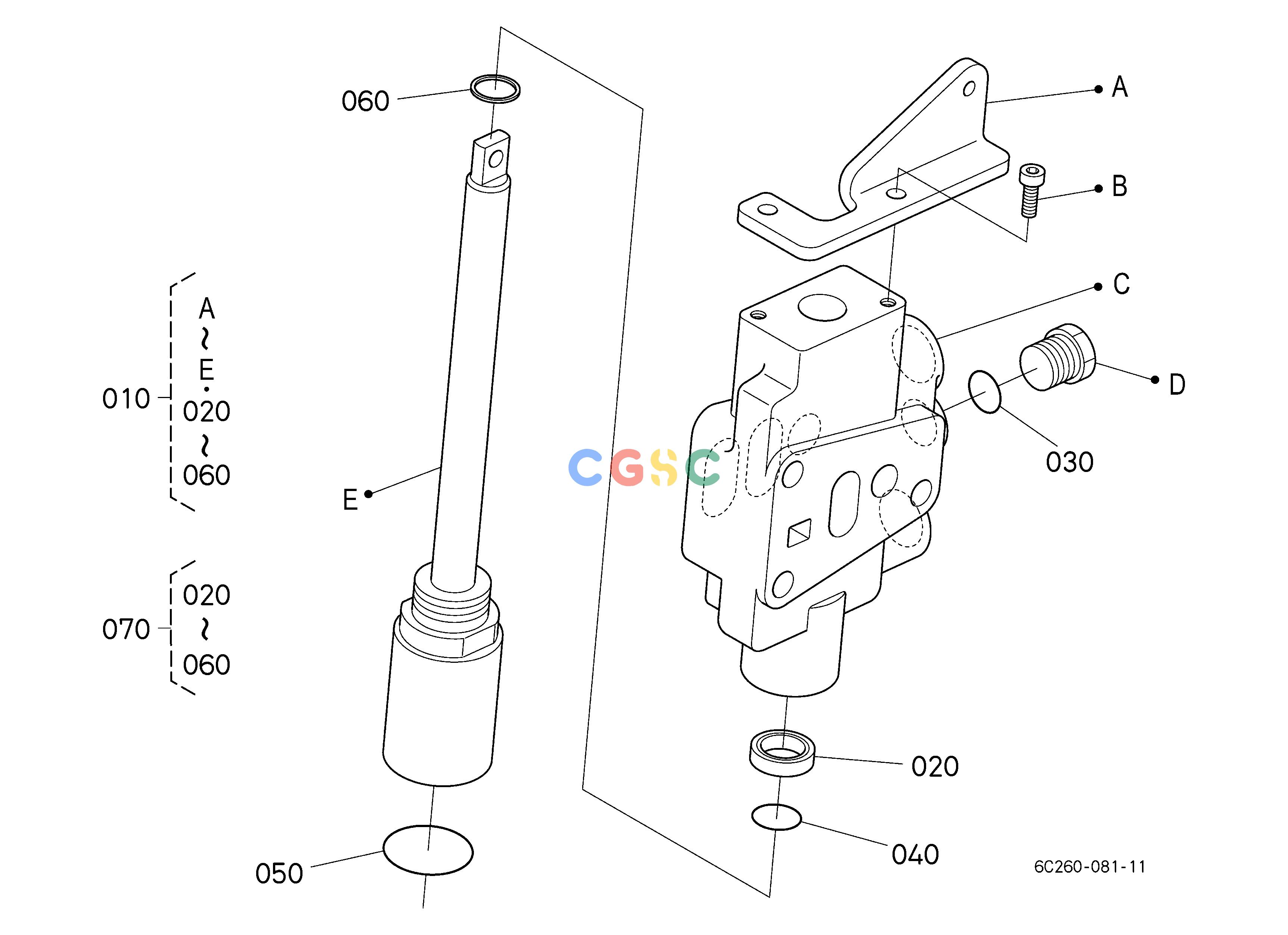

久保田零件查询U94102 AUXILIARY CONTROL VALVE (FLOATING) [COMPONENT PARTS] [OPTION] ## S.No.>=50572 S.No.;>=50572 OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW31200100
|
[1] |
ASSY VALVE,AUX.CON.
|
4.2900(lbs); 1.950
|
| 010. |
YW31200102
|
[1] |
ASSY VALVE,AUX.CON.
|
4.2240(lbs); 1.920
|
| 010. |
YW31200103
|
[1] |
ASSY VALVE,AUX.CON.
|
4.2240(lbs); 1.920
|
| 010. |
YW31200104
|
[1] |
ASSY VALVE,AUX.CON.
|
4.2240(lbs); 1.920
|
| 020. |
YW07700610
|
[1] |
SEAL,DUST
|
0.0022(lbs); 0.001
|
| 030. |
0481700100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481706250
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
3407666250
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 070. |
YW31291110
|
[1] |
KIT,SEAL
|
0.0066(lbs); 0.003
|
