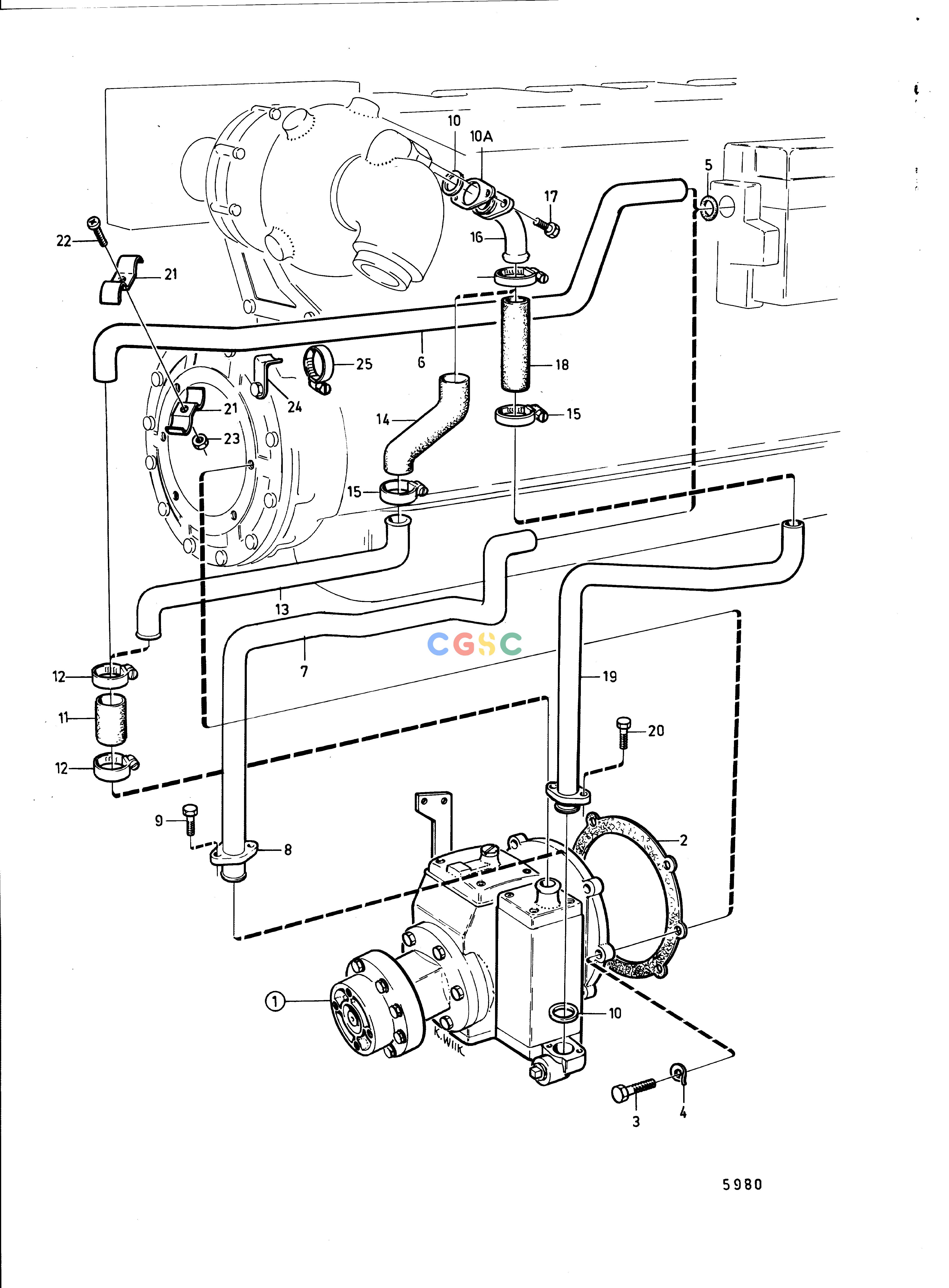

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850413
|
[1] |
Reversing gear
|
MS3
|
| 1. |
|
|
|
See group 4B
|
| 2. |
803921
|
[1] |
Gasket
|
|
| 3. |
955319
|
[6] |
Hexagon screw
|
|
| 4. |
941908
|
[6] |
Spring washer
|
|
| 5. |
925061
|
[1] |
O-ring
|
Repl by 949658
|
| 5. |
949658
|
[1] |
O-ring
|
|
| 7. |
844425
|
[1] |
Coolant pipe
|
|
| 8. |
842912
|
[1] |
Flange
|
|
| 9. |
956093
|
[2] |
Cross recessed screw
|
|
| 10. |
842913
|
[2] |
Sealing ring
|
|
| 11. |
944386
|
[1] |
Rubber hose
|
L=50mm
|
| 12. |
994560
|
[2] |
Hose clamp
|
|
| 13. |
844426
|
[1] |
Coolant pipe
|
|
| 14. |
844427
|
[1] |
Hose
|
|
| 15. |
994560
|
[2] |
Hose clamp
|
|
| 16. |
844258
|
[1] |
Coolant pipe
|
|
| 17. |
955271
|
[2] |
Hexagon screw
|
|
| 21. |
942927
|
[2] |
Clamp
|
|
| 22. |
956093
|
[1] |
Cross recessed screw
|
|
| 23. |
963105
|
[1] |
Lock nut
|
|
| 25. |
943473
|
[1] |
Hose clamp
|
|
| 26. |
819105
|
[1] |
Clutch flange
|
Center drilled., See group 9
|
| 26. |
|
|
|
See group 9
|
