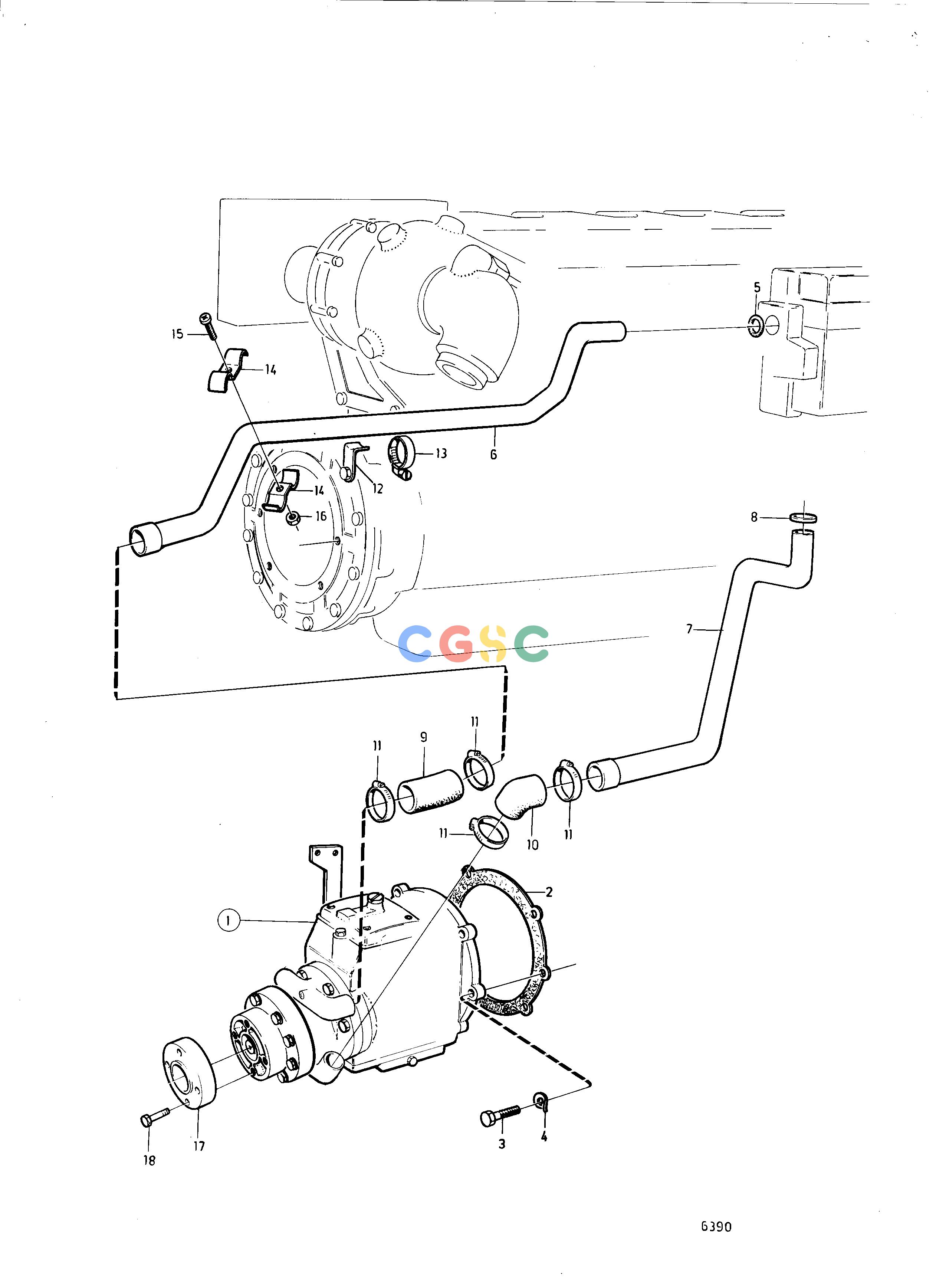

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsConnecting Components Reverse Gear MS3B, MS3C: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
347 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852102
|
[1] |
Reversing gear
|
MS3B, MO-29164
|
| 1. |
|
|
|
See group 4B
|
| 1. |
852502
|
[1] |
Reversing gear
|
Replaced by reverse gear-853398 and connection kit-853774, MS3C, MO29165-
|
| 1. |
852503
|
[1] |
Reversing gear
|
Replaced by reverse gear-853399 and connection kit-853774, MS3C, MO29165-
|
| 2. |
803921
|
[1] |
Gasket
|
|
| 3. |
955319
|
[6] |
Hexagon screw
|
|
| 4. |
941908
|
[6] |
Spring washer
|
|
| 5. |
949658
|
[1] |
O-ring
|
(925061)
|
| 6. |
845715
|
[1] |
Coolant pipe
|
|
| 7. |
845714
|
[1] |
Coolant pipe
|
|
| 8. |
842913
|
[1] |
Sealing ring
|
|
| 9. |
949315
|
[1] |
Rubber hose
|
L=70mm
|
| 10. |
845792
|
[1] |
Connecting hook
|
|
| 11. |
994561
|
[4] |
Hose clamp
|
|
| 12. |
843747
|
[1] |
Anchorage
|
|
| 13. |
943473
|
[1] |
Hose clamp
|
|
| 14. |
942927
|
[2] |
Clamp
|
|
| 15. |
955270
|
[1] |
Hexagon screw
|
|
| 16. |
963105
|
[1] |
Lock nut
|
|
| 17. |
852611
|
[1] |
Adapter
|
When exchanging reverse gear MS3B to MS3C
|
| 18. |
955699
|
[4] |
Hexagon screw
|
When exchanging reverse gear MS3B to MS3C.
|
