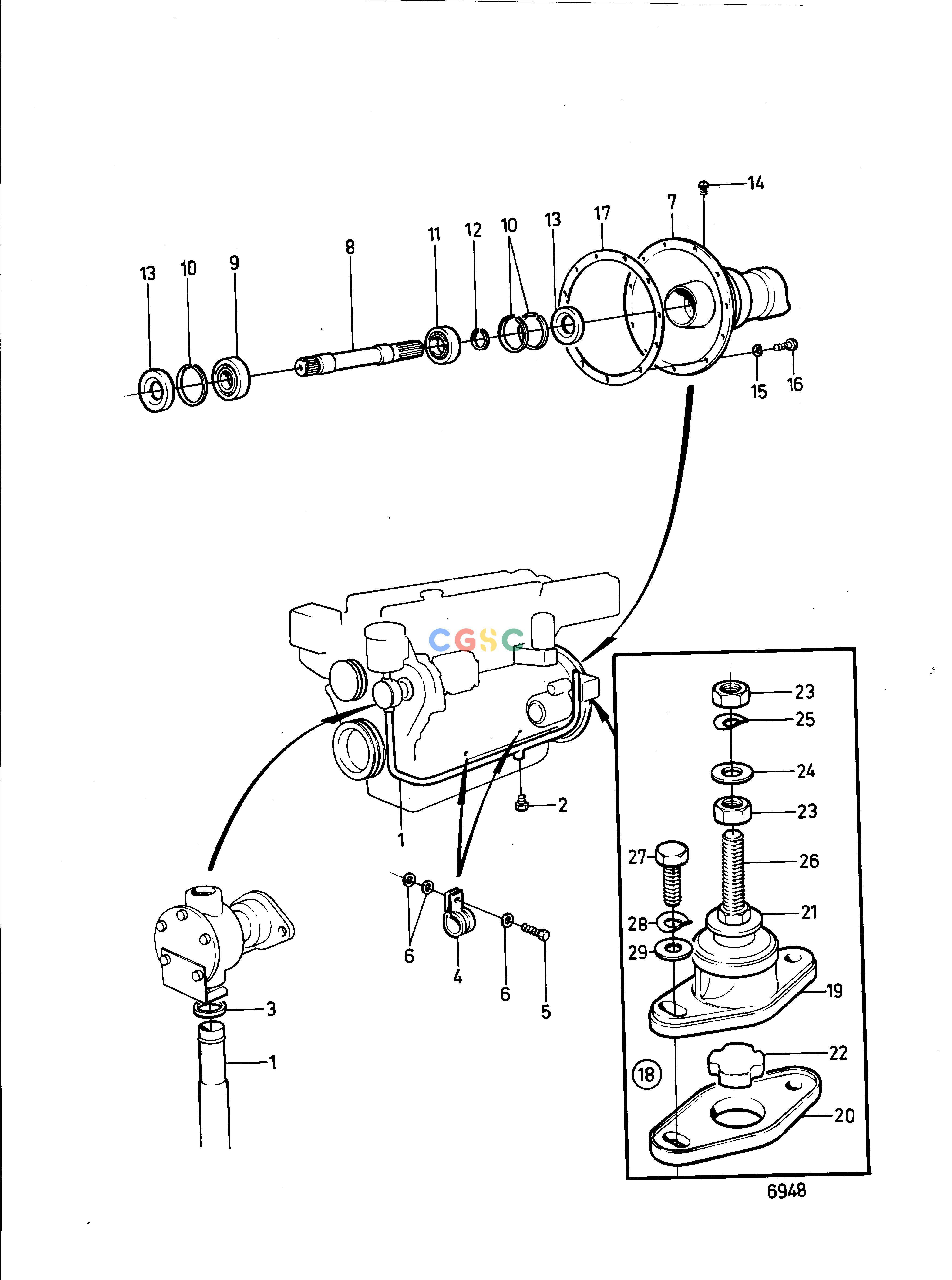

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsConnecting Components-Engine Commercial Use, StdEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845443
|
[1] |
Coolant pipe
|
|
| 2. |
192134
|
[1] |
Plug
|
|
| 3. |
845354
|
[1] |
Sealing ring
|
|
| 4. |
949850
|
[2] |
Clamp
|
|
| 5. |
955295
|
[2] |
Hexagon screw
|
|
| 6. |
955894
|
[6] |
Washer
|
|
| 7. |
844519
|
[1] |
Flywheel housing
|
|
| 8. |
839425
|
[1] |
Spindle
|
|
| 9. |
181105
|
[1] |
Ball bearing
|
|
| 10. |
914533
|
[3] |
Snap ring
|
|
| 11. |
11013
|
[1] |
Ball bearing
|
|
| 12. |
914462
|
[1] |
Snap ring
|
|
| 13. |
958860
|
[2] |
Sealing ring
|
|
| 14. |
804262
|
[1] |
Plug
|
|
| 15. |
941908
|
[11] |
Spring washer
|
|
| 16. |
955319
|
[11] |
Hexagon screw
|
|
| 17. |
829488
|
[1] |
Gasket
|
|
| 18. |
843297
|
[2] |
Rubber element
|
|
| 19. |
843323
|
[2] |
Rubber element
|
|
| 20. |
843286
|
[2] |
Pad
|
|
| 21. |
843298
|
[2] |
Washer
|
|
| 22. |
843299
|
[2] |
Rubber disc
|
|
| 23. |
955805
|
[4] |
Hexagon nut
|
|
| 24. |
191940
|
[4] |
Washer
|
|
| 25. |
941912
|
[2] |
Spring washer
|
|
| 26. |
829567
|
[2] |
Adjusting bolt
|
|
| 27. |
955321
|
[4] |
Hexagon screw
|
|
| 28. |
941908
|
[4] |
Spring washer
|
|
| 29. |
960148
|
[4] |
Washer
|
|
