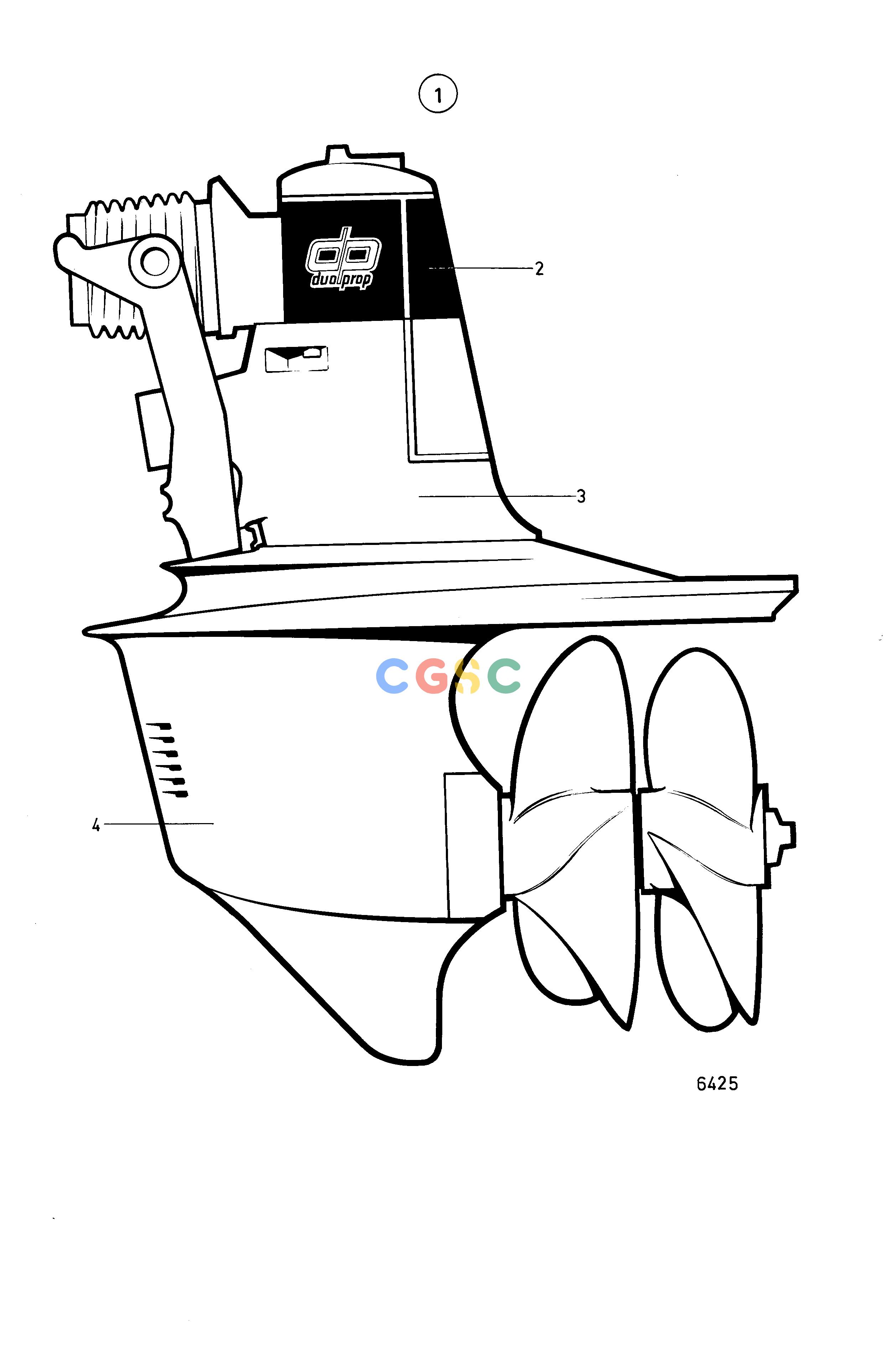

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsDuoprop Drive Unit: DP290EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
973 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852921
|
[1] |
Drive
|
Repl by 853452
|
| 1. |
852922
|
[1] |
Drive
|
Repl by 853453
|
| 1. |
853452
|
[1] |
Drive
|
E.u, ratio 1,95:1
|
| 1. |
853453
|
[1] |
Drive
|
E.u, ratio 2,30:1
|
| 2. |
851340
|
[1] |
Upper gear
|
|
| 3. |
7744060_106
|
|
interm housing
|
|
| 4. |
852193
|
[1] |
Lower gear
|
E.u, ratio 1,95:1
|
| 4. |
852408
|
[1] |
Lower gear
|
E.u, ratio 2,30:1
|
| 4. |
875741
|
[1] |
Gasket kit
|
See group 10A
|
