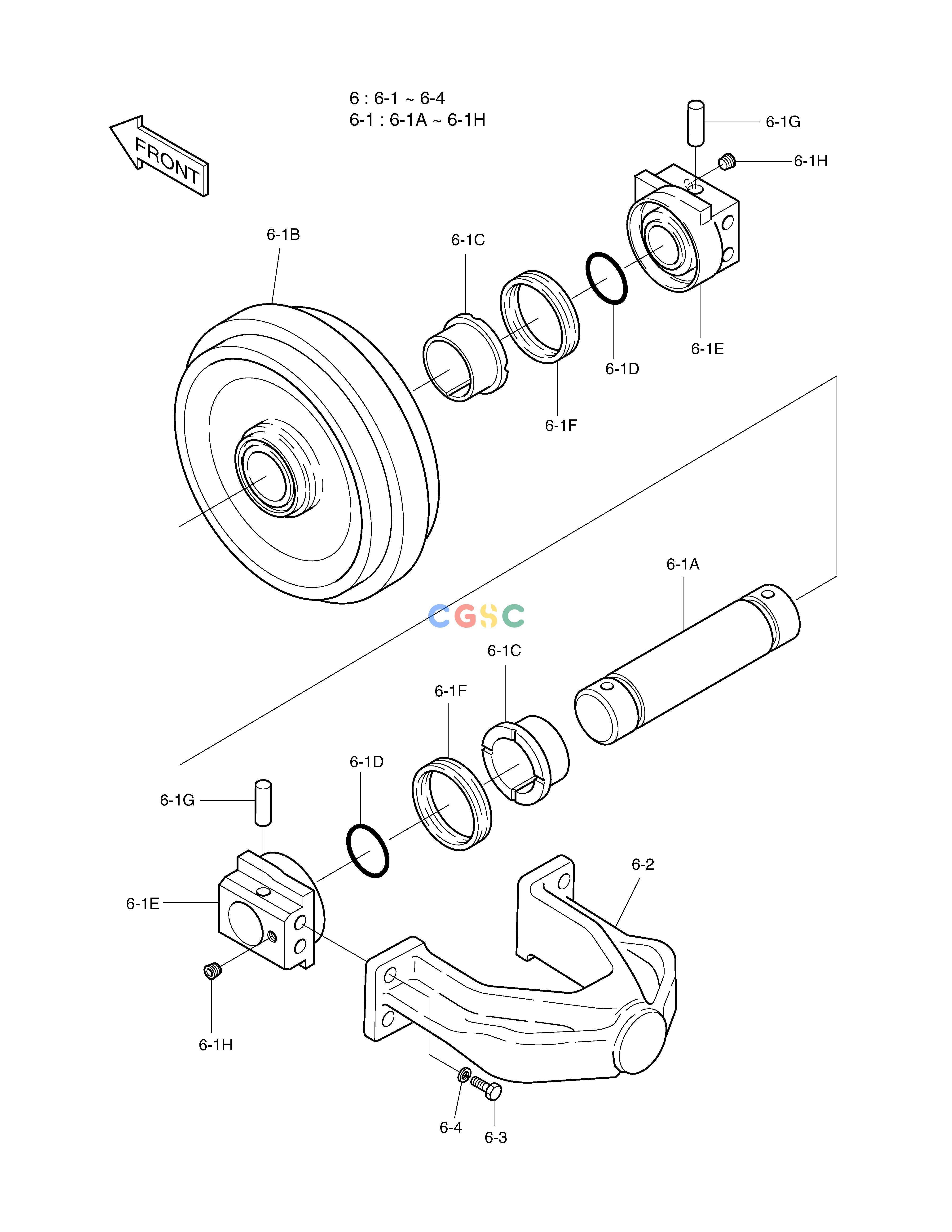

斗山零件查询IDLER SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
574 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
604-00042A
|
[-] |
TRACK ASS'Y
|
|
| 6. |
2270-1108B
|
[2] |
IDLER ASS'Y
|
2270-1108C
|
| 6. |
2270-1108C
|
[2] |
IDLER ASS'Y
|
|
| 6-1. |
2270-6098A
|
[2] |
IDLER ASS'Y
|
2270-6098B
|
| 6-1. |
2270-6098B
|
[2] |
IDLER ASS'Y
|
|
| 6-1A. |
2220-1013
|
[1] |
.. AXLE
|
|
| 6-1B. |
2270-1063
|
[1] |
.. IDLER;BODY
|
|
| 6-1C. |
K1014428
|
[2] |
BUSHING
|
|
| 6-1C. |
K1036466
|
[2] |
.. BUSHING
|
|
| 6-1D. |
S8010700
|
[2] |
O-RING
|
|
| 6-1E. |
2271-1004
|
[2] |
.. BEARING
|
|
| 6-1F. |
2180-9020
|
[2] |
SEAL;GROUP
|
K1036468
|
| 6-1F. |
K1036468
|
[2] |
.. SEAL;GROUP
|
|
| 6-1G. |
2123-1011
|
[2] |
.. PIN
|
|
| 6-1H. |
2181-1116D2
|
[2] |
PLUG
|
|
| 6-2. |
2157-1023
|
[1] |
. YOKE
|
|
| 6-3. |
S0721456
|
[4] |
. BOLT M16X1.5X40
|
|
| 6-4. |
S5102901
|
[4] |
. WASHER;SPRING
|
|
