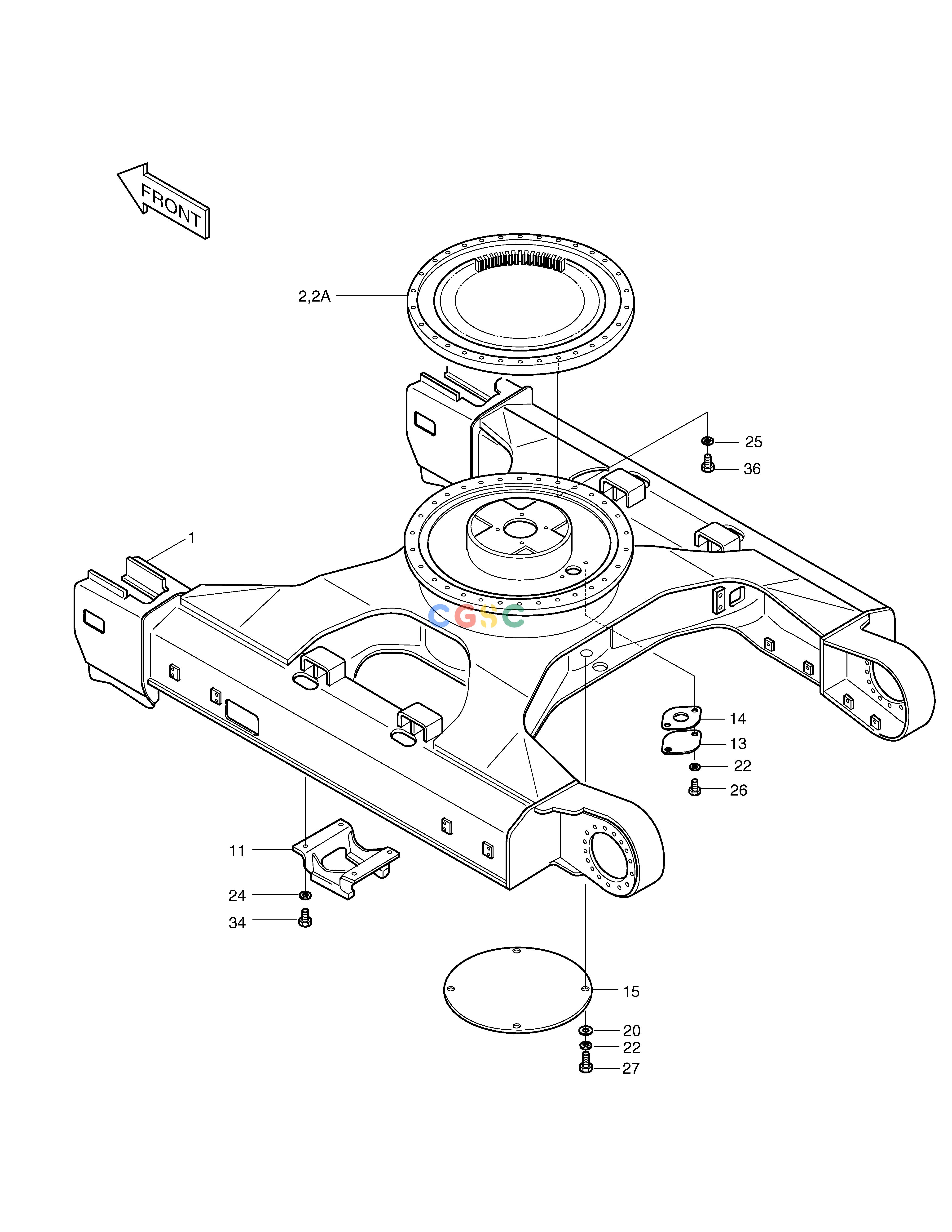

斗山零件查询TRACK FRAME SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
115 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
604-00042A
|
[-] |
TRACK ASS'Y
|
|
| 1. |
604-00036K
|
[1] |
FRAME;TRACK
|
|
| 11. |
2623Y1176B-A
|
[2] |
GUARD;LINK
|
|
| 13. |
2403-1002
|
[1] |
COVER
|
|
| 14. |
2180-1017A
|
[1] |
PACKING
|
|
| 15. |
2621-1428B
|
[1] |
COVER
|
|
| 2. |
109-00052B
|
[1] |
BEARING;SWING
|
|
| 20. |
2114-1058D10
|
[4] |
WASHER
|
|
| 22. |
S5102603
|
[2] |
. WASHER
|
|
| 24. |
S5102903
|
[8] |
WASHER
|
|
| 25. |
2114-9012A
|
[36] |
WASHER
|
|
| 26. |
S0511853
|
[2] |
BOLT
|
|
| 27. |
2120-2196D2
|
[4] |
BOLT;SET M10X1.5X25
|
|
| 2A. |
180-00297D3
|
[1] |
SEAL
|
|
| 34. |
S0721466
|
[8] |
BOLT M16X1.5X40
|
|
| 36. |
S0770266
|
[36] |
BOLT M20X1.5X70
|
|
