斗山零件查询TRACK SPRING SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
151 次

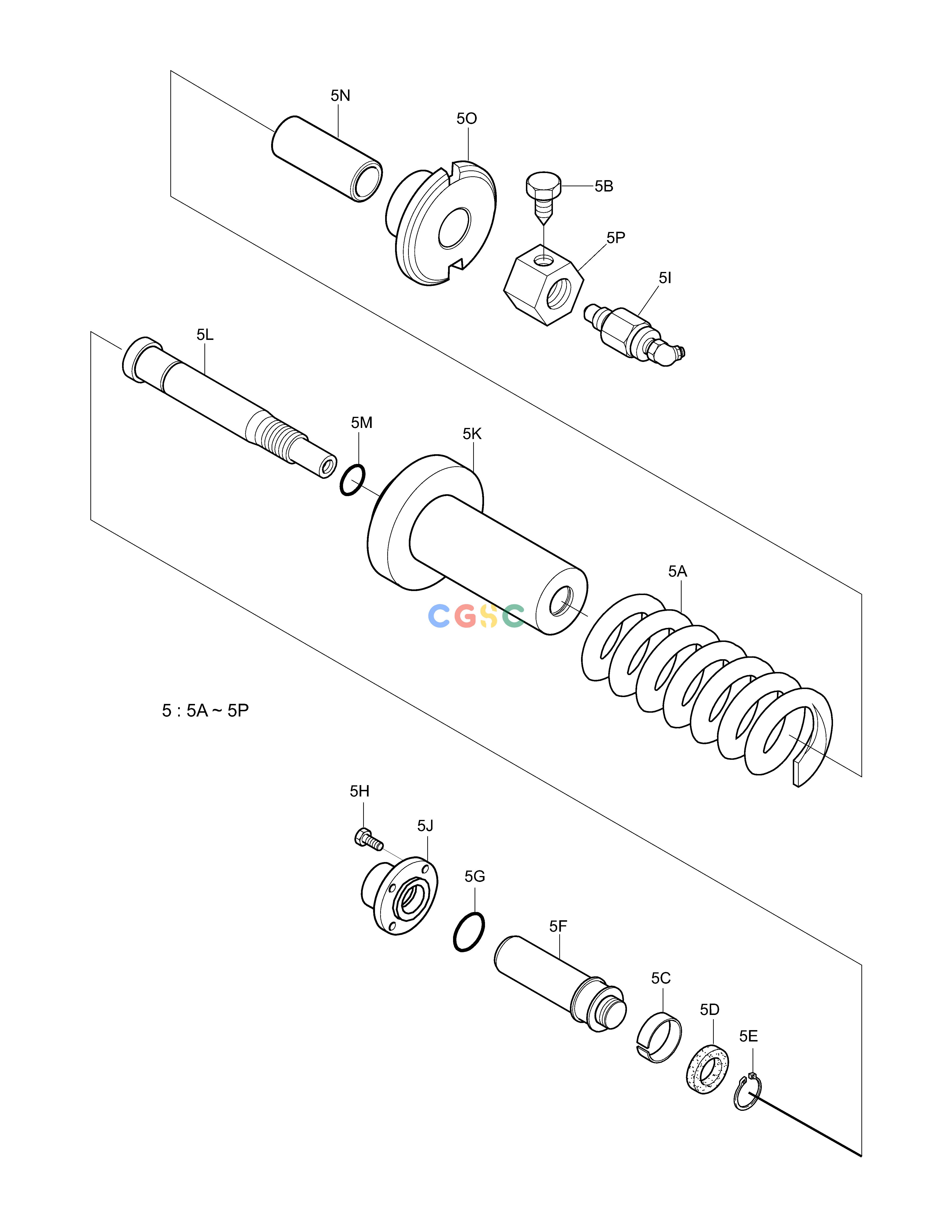

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9000480
|
[1] |
SEAL KIT;TRACK SPRING
|
|
| -. |
604-00042A
|
[-] |
TRACK ASS'Y
|
|
| 5. |
274-00011
|
[2] |
TRACK SPRING ASS'Y
|
|
| 5A. |
2129-1236
|
[1] |
. SPRING
|
|
| 5B. |
2120-1105
|
[1] |
. BOLT
|
|
| 5C. |
2411-1001
|
[1] |
. RING;PISTON
|
|
| 5D. |
2180-9001
|
[1] |
PACKING;U-RING
|
|
| 5E. |
S6500400
|
[1] |
RING,RETAINING
|
|
| 5F. |
2409-1010
|
[1] |
ROD;PISTON
|
|
| 5G. |
S8010551
|
[1] |
O-RING
|
|
| 5H. |
S2212266
|
[4] |
BOLT
|
|
| 5I. |
2420-1242A
|
[1] |
VALVE;GREASE
|
|
| 5J. |
2181-1618
|
[1] |
. FLANGE
|
|
| 5K. |
2440-1055B
|
[1] |
. CYLINDER
|
|
| 5L. |
2444-1015A
|
[1] |
. ROD
|
|
| 5M. |
2180-1026D21
|
[1] |
. O-RING
|
|
| 5N. |
2114-1369
|
[1] |
. SPACER
|
|
| 5O. |
2131-1109
|
[1] |
. WASHER
|
|
| 5P. |
2121-1208
|
[1] |
. NUT M45X2.0
|
|
