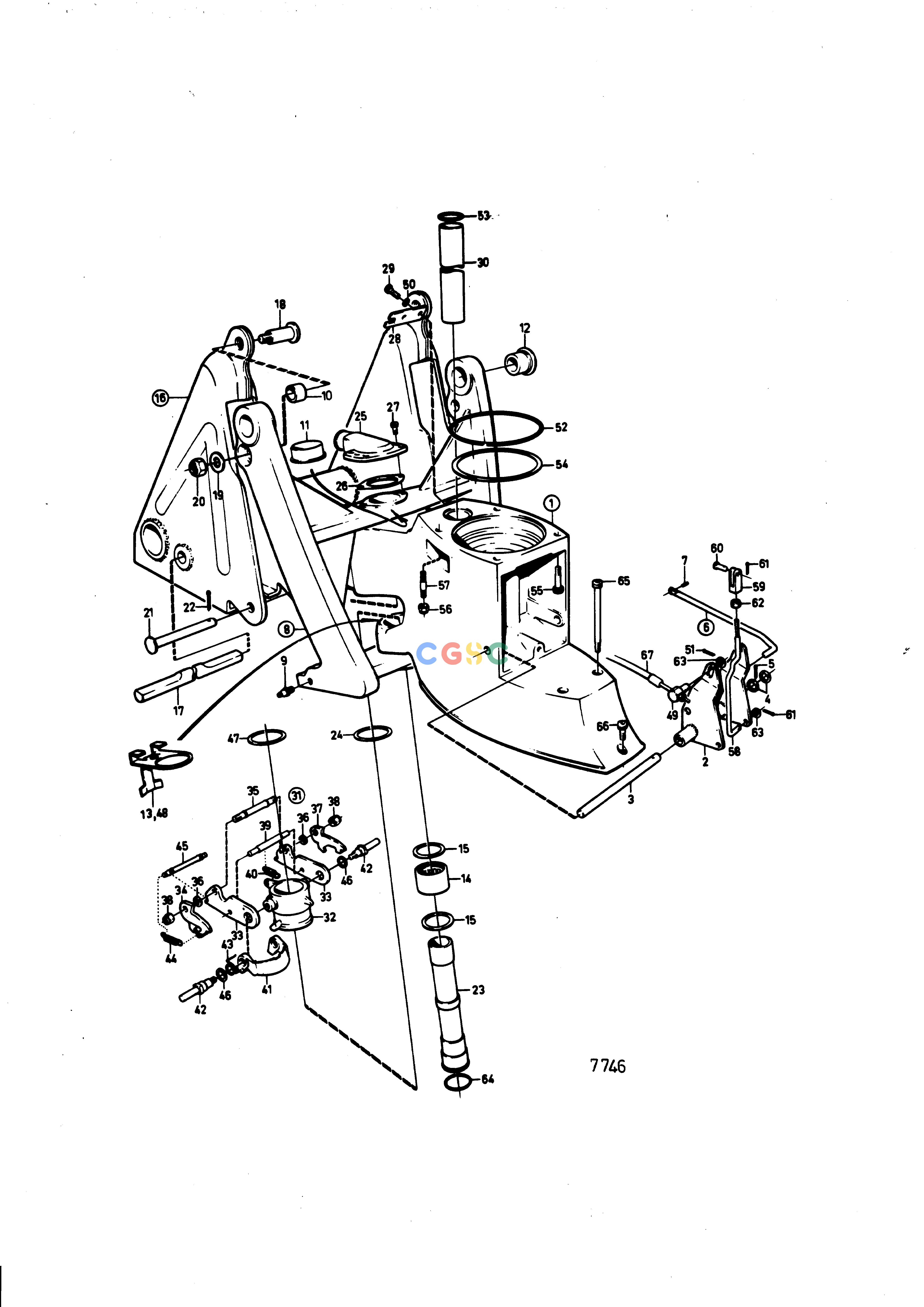

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsIntermediate Housing AQ Drive Unit 290EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852851
|
[1] |
Intermediate housing
|
|
| 2. |
897829
|
[1] |
Gear yoke
|
|
| 3. |
897447
|
[1] |
Shaft
|
|
| 4. |
897511
|
[2] |
Washer
|
|
| 5. |
17253
|
[1] |
Split pin
|
|
| 6. |
851412
|
[1] |
Reverse locking rod
|
|
| 7. |
967556
|
[1] |
Spring pin
|
|
| 8. |
852869
|
[1] |
Fork
|
|
| 9. |
940194
|
[1] |
Lubricating nipple
|
|
| 10. |
852912
|
[2] |
Bushing
|
|
| 11. |
853062
|
[1] |
Bearing bushing
|
|
| 12. |
853223
|
[2] |
Bushing
|
|
| 13. |
851426
|
[1] |
Guide washer
|
|
| 14. |
183391
|
[1] |
Needle roller bearin
|
|
| 15. |
181620
|
[2] |
Sealing ring
|
|
| 16. |
852769
|
[1] |
Cylinder anchorage
|
Replaced by 1pc 853310 attachment + 2pcs 853308 screw + 2pcs 853309 clevis pin.
|
| 16. |
853310
|
[1] |
Cylinder anchorage
|
PZ 29003011-
|
| 17. |
|
|
|
|
| 18. |
852751
|
[2] |
Shoulder screw
|
|
| 18. |
853308
|
[2] |
Shoulder screw
|
PZ 29003011-
|
| 19. |
853071
|
[2] |
Washer
|
|
| 20. |
946672
|
[2] |
Lock nut
|
|
| 21. |
852749
|
[2] |
Clevis pin
|
|
| 21. |
853309
|
[2] |
Clevis pin
|
PZ 29003011-
|
| 22. |
967707
|
[2] |
Split pin
|
|
| 23. |
814386
|
[1] |
Steering knuckle
|
|
| 24. |
897696
|
[2] |
Washer
|
|
| 25. |
851766
|
[1] |
Hose connection
|
|
| 26. |
814356
|
[1] |
Seal
|
|
| 27. |
941813
|
[2] |
Hex. socket screw
|
|
| 28. |
853078
|
[1] |
Cable attachment
|
|
| 29. |
940168
|
[2] |
Hexagon screw
|
|
| 30. |
897644
|
[1] |
Tube
|
|
| 31. |
851422
|
[1] |
Reverse tilt inhibit
|
|
| 32. |
851402
|
[1] |
Bearing sleeve
|
|
| 33. |
814391
|
[2] |
Catch
|
|
| 34. |
814392
|
[1] |
Spring hook
|
|
| 35. |
814419
|
[1] |
Shaft
|
|
| 36. |
814422
|
[2] |
Spacer washer
|
|
| 37. |
814393
|
[1] |
Spring hook
|
|
| 38. |
943197
|
[2] |
Lock nut
|
|
| 39. |
851424
|
[1] |
Stop arm
|
|
| 40. |
832534
|
[1] |
Spring
|
|
| 41. |
851403
|
[1] |
Lock brace
|
|
| 42. |
851423
|
[2] |
Spindle
|
|
| 43. |
814396
|
[1] |
Spring
|
|
| 44. |
814332
|
[2] |
Spring
|
|
| 45. |
814399
|
[1] |
Shaft
|
|
| 46. |
943194
|
[2] |
Washer
|
|
| 47. |
814390
|
[1] |
Plastic washer
|
|
| 48. |
851426
|
[1] |
Guide washer
|
|
| 49. |
804312
|
[1] |
Cube
|
|
| 50. |
940191
|
[2] |
Washer
|
|
| 51. |
17276
|
[1] |
Split pin
|
|
| 52. |
925259
|
[1] |
O-ring
|
|
| 53. |
125017
|
[2] |
O-ring
|
|
| 54. |
967352
|
[1] |
Shim
|
TH=0,05mm
|
| 54. |
943866
|
[1] |
Shim
|
TH=0,10mm
|
| 54. |
943867
|
[1] |
Shim
|
TH=0.20mm
|
| 54. |
943868
|
[1] |
Shim
|
TH=0.40mm
|
| 55. |
941807
|
[2] |
Hex. socket screw
|
|
| 56. |
941885
|
[2] |
Lock nut
|
|
| 57. |
941814
|
[2] |
Stud
|
|
| 58. |
897448
|
[1] |
Control rod
|
|
| 59. |
813954
|
[1] |
Fork
|
|
| 60. |
192662
|
[1] |
Split pin
|
|
| 61. |
17253
|
[2] |
Split pin
|
|
| 62. |
940190
|
[1] |
Hexagon nut
|
|
| 63. |
940191
|
[2] |
Washer
|
|
| 64. |
941820
|
[1] |
O-ring
|
|
| 65. |
941808
|
[2] |
Hex. socket screw
|
|
| 66. |
941809
|
[1] |
Hex. socket screw
|
|
| 67. |
|
|
|
See group 9
|
