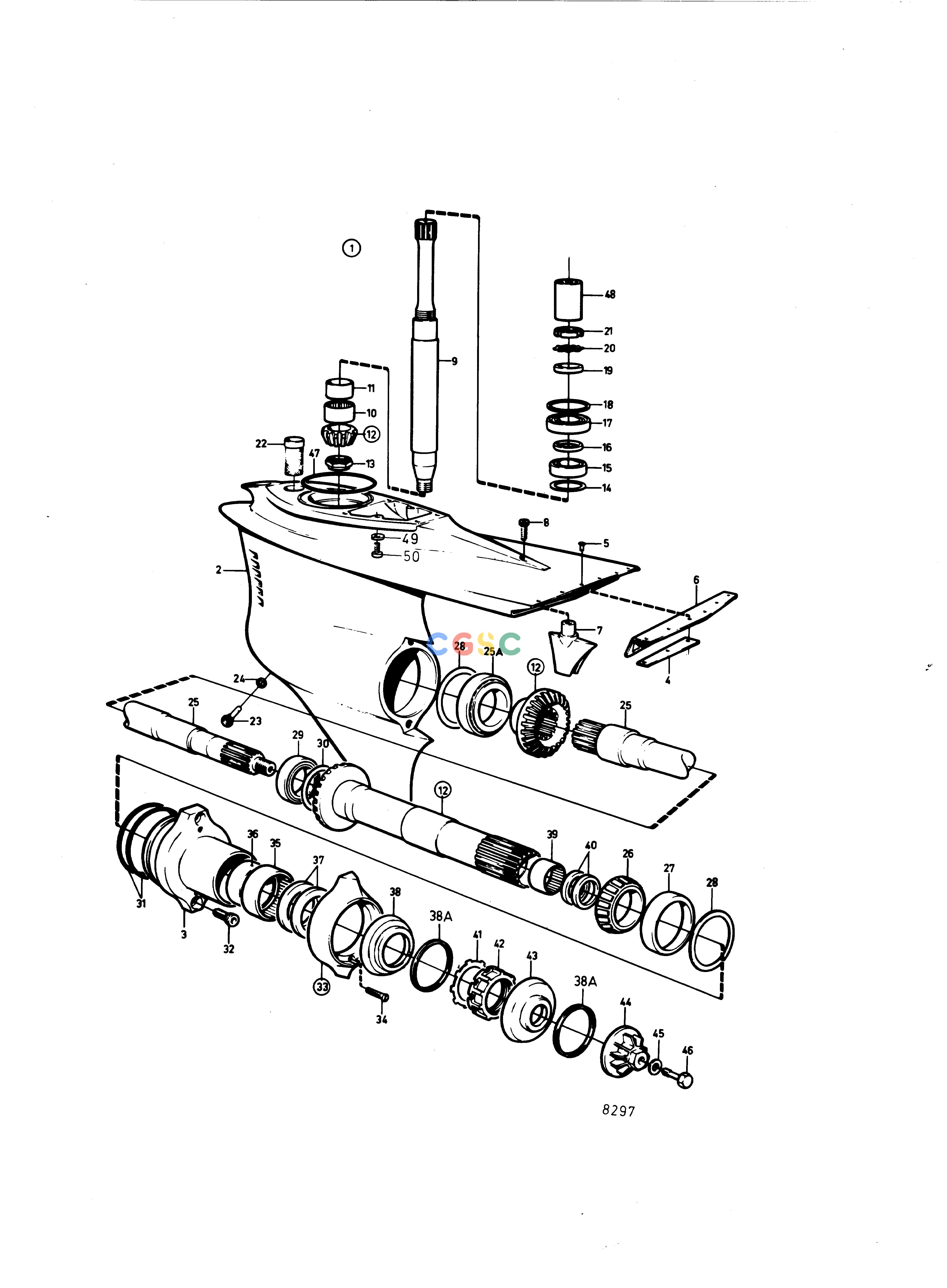

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsLower Gear Unit: 852193EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852193
|
[1] |
Lower gear
|
E.u, ratio 1,95:1
|
| 2. |
852194
|
[1] |
Housing
|
|
| 3. |
852456
|
[1] |
Bearing housing
|
|
| 4. |
852643
|
[2] |
Attaching plate
|
|
| 5. |
948338
|
[6] |
Blind rivet
|
|
| 6. |
852644
|
[1] |
Non-return valve
|
|
| 7. |
852646
|
[1] |
Fin
|
|
| 8. |
941817
|
[1] |
Hex. socket screw
|
|
| 9. |
852183
|
[1] |
Countershaft
|
|
| 10. |
184654
|
[1] |
Needle roller bushin
|
|
| 11. |
184682
|
[1] |
Inner ring
|
|
| 12. |
852174
|
[1] |
Drive gear set
|
Ratio 1,95:1
|
| 13. |
852212
|
[1] |
Nut
|
|
| 14. |
941832
|
[1] |
Shim
|
TH=0,05mm
|
| 14. |
941833
|
[1] |
Shim
|
TH=0.20mm
|
| 15. |
183374
|
[1] |
Ball bearing
|
|
| 16. |
944970
|
[1] |
Shim
|
TH=1,60mm
|
| 17. |
11072
|
[1] |
Roller bearing
|
|
| 18. |
944522
|
[1] |
Shim
|
TH=1.0mm
|
| 18. |
42981
|
[1] |
Shim
|
TH=0,10mm
|
| 18. |
968057
|
[1] |
Shim
|
TH=0.2mm
|
| 18. |
42980
|
[1] |
Shim
|
TH=0.35mm
|
| 19. |
897387
|
[1] |
Clamping ring
|
|
| 20. |
907023
|
[1] |
Lock washer
|
|
| 21. |
906633
|
[1] |
Round nut
|
|
| 22. |
814482
|
[1] |
Oil strainer
|
|
| 23. |
852904
|
[1] |
Magnetic plug
|
|
| 24. |
955974
|
[1] |
O-ring
|
|
| 25. |
852181
|
[1] |
Propeller shaft
|
|
| 25A. |
11044
|
[1] |
Roller bearing
|
|
| 26. |
184690
|
[1] |
Inner ring
|
|
| 27. |
184689
|
[1] |
Cup
|
|
| 28. |
967352
|
[1] |
Shim
|
TH=0,05mm
|
| 28. |
941823
|
[1] |
Shim
|
TH=0,10mm
|
| 28. |
967351
|
[1] |
Shim
|
TH=0.15mm
|
| 28. |
941824
|
[1] |
Shim
|
TH=0.20mm
|
| 28. |
941825
|
[1] |
Shim
|
TH=0.4mm
|
| 29. |
184691
|
[1] |
Roller bearing
|
|
| 30. |
81374
|
[1] |
Shim
|
TH=0,10mm
|
| 30. |
81375
|
[1] |
Shim
|
TH=0.15mm
|
| 30. |
81376
|
[1] |
Shim
|
TH=0.35mm
|
| 31. |
925258
|
[2] |
O-ring
|
|
| 32. |
941812
|
[2] |
Hex. socket screw
|
|
| 33. |
875821
|
[1] |
Zinc ring kit
|
|
| 33. |
|
|
|
|
| 34. |
966808
|
[2] |
Screw
|
|
| 35. |
183859
|
[1] |
Needle roller bushin
|
|
| 36. |
184683
|
[1] |
Inner ring
|
|
| 37. |
851407
|
[2] |
Sealing ring
|
|
| 38. |
853440
|
[1] |
Line cutter
|
Forward, (852198)
|
| 38A. |
853584
|
[2] |
Plastic washer
|
(853447)
|
| 39. |
183272
|
[1] |
Needle roller bearin
|
|
| 40. |
851406
|
[2] |
Sealing ring
|
|
| 41. |
852197
|
[1] |
Striker plate
|
|
| 42. |
852196
|
[1] |
Propeller nut
|
|
| 43. |
853441
|
[1] |
Line cutter
|
Rear, (852206)
|
| 44. |
852201
|
[1] |
Propeller nut
|
|
| 45. |
941670
|
[1] |
Washer
|
|
| 46. |
852216
|
[1] |
Hexagon screw
|
|
| 47. |
925256
|
[1] |
O-ring
|
Included in complete Duoprop drive unit.
|
| 48. |
850304
|
[1] |
Splined sleeve
|
Included in complete Duoprop drive unit.
|
| 49. |
853095
|
[4] |
Washer
|
|
| 50. |
941810
|
[4] |
Hex. socket screw
|
|
