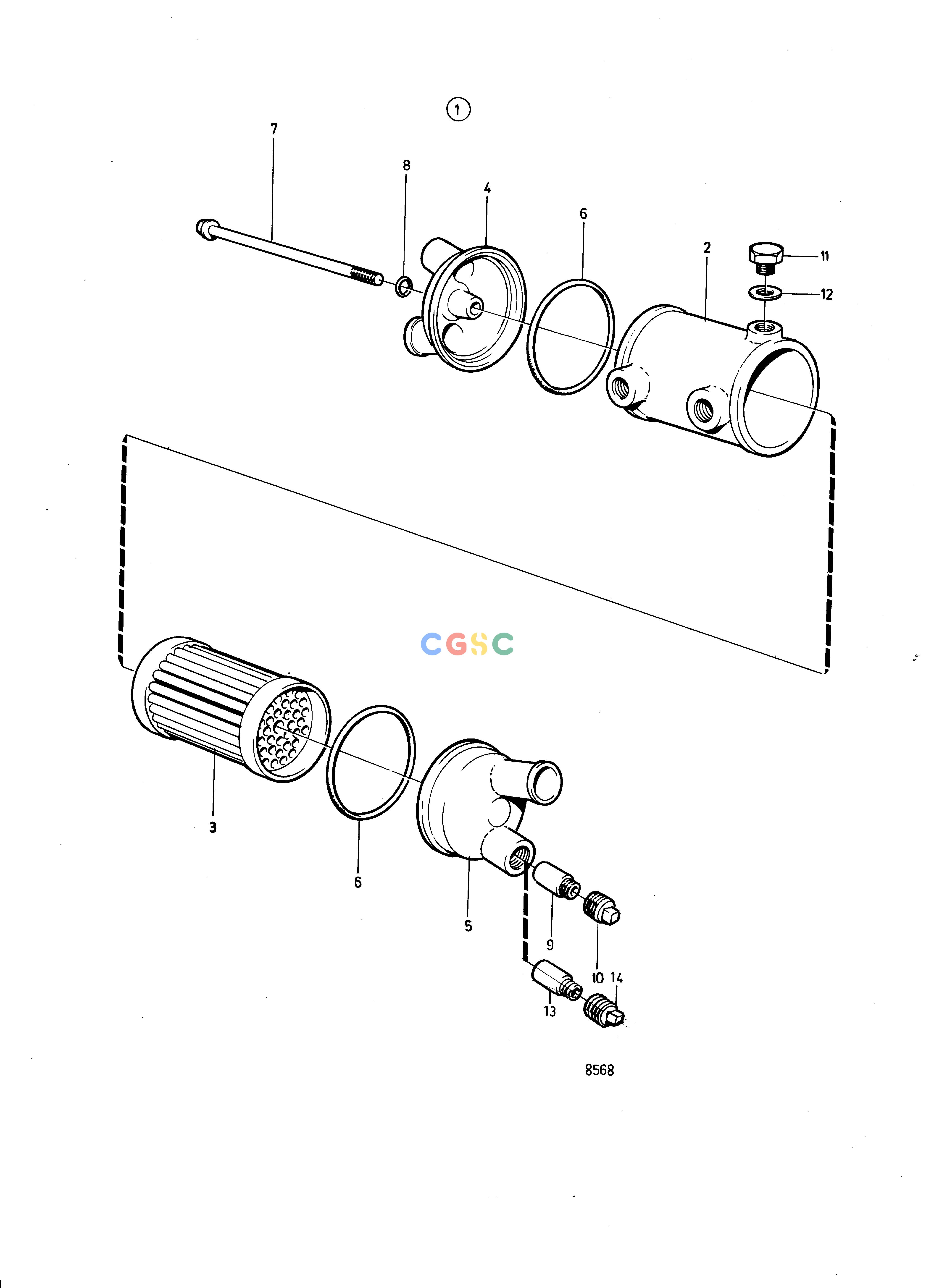

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsOil CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
842240
|
[1] |
Oil cooler
|
|
| 2. |
842241
|
[1] |
Housing
|
|
| 3. |
826937
|
[1] |
Heat exchanger eleme
|
|
| 4. |
842242
|
[1] |
End cover
|
|
| 5. |
842243
|
[1] |
End cover
|
|
| 6. |
925094
|
[2] |
O-ring
|
|
| 7. |
824522
|
[1] |
Centre bolt
|
|
| 8. |
955983
|
[1] |
O-ring
|
|
| 9. |
804107
|
[1] |
Zinc electrode
|
Replaced by plug-838928 and electrode-838929.
|
| 10. |
800475
|
[1] |
Plug
|
Replaced by plug-838928 and electrode-838929.
|
| 11. |
960632
|
[1] |
Plug
|
|
| 12. |
957181
|
[1] |
Gasket
|
|
| 13. |
838929
|
[1] |
Anode
|
|
| 14. |
838928
|
[1] |
Plug
|
|
