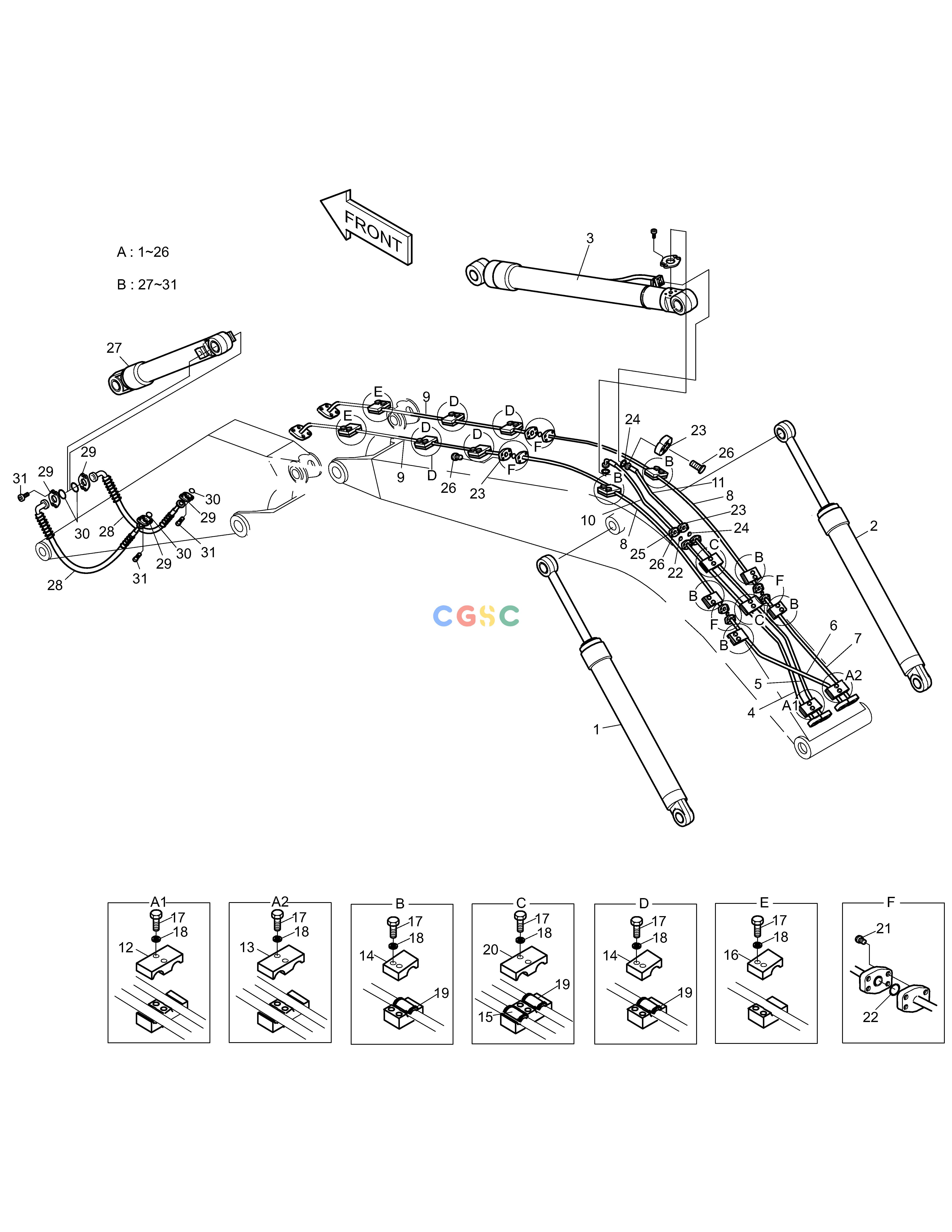

斗山零件查询FRONT PIPING SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
K1026506
|
[1] |
CYLINDER;BOOM (L.H)
|
|
| 10. |
2184-1082D100
|
[1] |
HOSE
|
|
| 11. |
2184-1081D114
|
[1] |
HOSE
|
|
| 12. |
124-00367
|
[2] |
CLAMP;PIPE
|
|
| 13. |
124-00300
|
[2] |
CLAMP;PIPE
|
|
| 14. |
124-00302
|
[20] |
CLAMP;PIPE
|
|
| 15. |
124-00368
|
[4] |
CLAMP;PIPE
|
|
| 16. |
124-00303
|
[4] |
CLAMP
|
|
| 17. |
S0562766
|
[32] |
BOLT
|
|
| 18. |
S5102803
|
[32] |
WASHER
|
|
| 19. |
161-00574
|
[12] |
RUBBER
|
|
| 2. |
K1026507
|
[1] |
CYLINDER;BOOM (R.H)
|
|
| 20. |
161-00281
|
[2] |
RUBBER
|
|
| 21. |
S2212566
|
[16] |
BOLT
|
|
| 22. |
2180-1026D2
|
[5] |
O-RING
|
|
| 23. |
2181-9078
|
[6] |
FLANGE;SPLIT
|
|
| 24. |
2180-1026D19
|
[3] |
O-RING
|
|
| 25. |
2181-9079
|
[2] |
FLANGE
|
|
| 26. |
S2212366
|
[16] |
BOLT
|
|
| 27. |
YK1026509
|
[1] |
CYLINDER;BUCKET
|
|
| 28. |
2184-1100D38
|
[2] |
HOSE PF3/4-1650L
|
|
| 29. |
2181-9079
|
[8] |
FLANGE
|
|
| 3. |
YK1026508
|
[1] |
CYLINDER;ARM
|
|
| 30. |
2180-1026D2
|
[4] |
O-RING
|
|
| 31. |
S2212366
|
[16] |
BOLT
|
|
| 4. |
140Y01999
|
[1] |
PIPE
|
|
| 5. |
140Y02000
|
[1] |
PIPE
|
|
| 6. |
140Y02001
|
[1] |
PIPE
|
|
| 7. |
140Y02002
|
[1] |
PIPE
|
|
| 8. |
140Y02003
|
[2] |
PIPE
|
|
| 9. |
140Y02004
|
[2] |
PIPE
|
|
| A. |
C400-00078
|
[-] |
PIPING;BOOM
|
|
| B. |
C400-00079
|
[-] |
ARM PIPING
|
|
