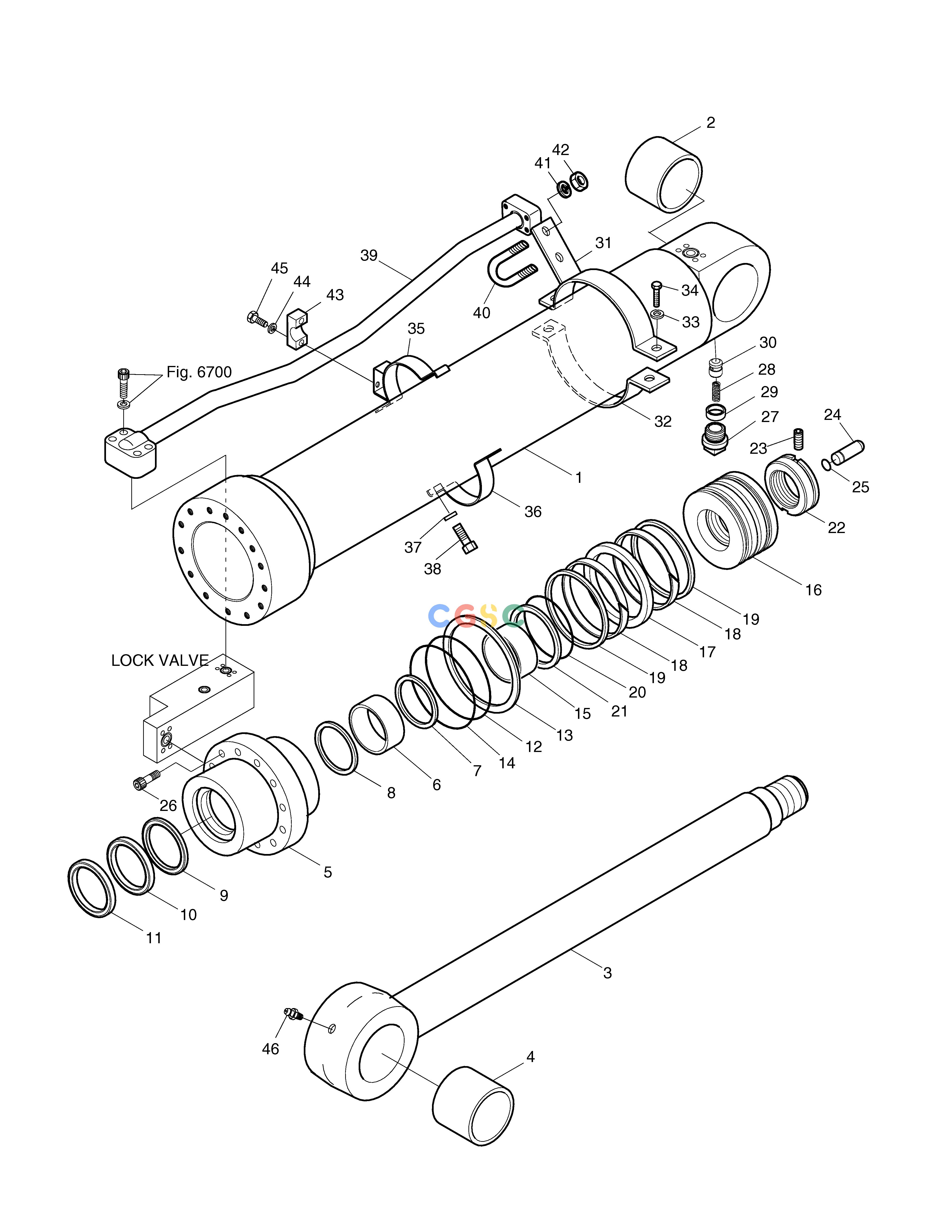

斗山零件查询ARM CYLINDER-LOCK VALVE SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9236KT
|
[1] |
SEAL KIT;ARM CYL.
|
|
| -. |
2440-6493C
|
[1] |
CYLINDER;ARM
|
|
| 1. |
1.441-00141
|
[1] |
TUBE ASS'Y
|
|
| 10. |
115-00099
|
[1] |
WIPER;DUST
|
|
| 11. |
115-00092
|
[1] |
RING;RETAINING
|
|
| 12. |
S8011301
|
[1] |
O-RING
|
|
| 13. |
1.180-00276
|
[1] |
RING;BACK UP
|
|
| 14. |
S8011351
|
[1] |
O-RING
|
|
| 15. |
1.115-00200
|
[1] |
RING;CUSHION
|
|
| 16. |
1.409-00110
|
[1] |
PISTON
|
|
| 17. |
1.180-00549
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
1.180-00426
|
[2] |
RING;WEAR
|
|
| 19. |
1.180-00368
|
[2] |
RING;SLYD
|
|
| 2. |
110-00085
|
[1] |
BUSH;STEEL
|
|
| 20. |
S8010751
|
[1] |
O-RING
|
|
| 21. |
180-00300
|
[2] |
RING;BACK UP
|
|
| 22. |
121-00055
|
[1] |
NUT;PISTON
|
|
| 23. |
S3523836
|
[1] |
SCREW;SET
|
|
| 24. |
424-00059
|
[1] |
PLUNGER;CUSHION
|
|
| 25. |
115-00081
|
[1] |
RING;STOP
|
|
| 26. |
S2222272
|
[16] |
BOLT;SOCKET
|
|
| 27. |
1.420-00050
|
[1] |
VALVE;CHECK
|
|
| 28. |
129-00071
|
[1] |
SPRING
|
|
| 29. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 3. |
1.428-00114
|
[1] |
ROD ASS'Y
|
|
| 30. |
2181-1116D3
|
[1] |
PLUG;HEX. SOCKET
|
|
| 31. |
1.124-00027
|
[1] |
PIPE BAND ASS'Y
|
|
| 32. |
1.124-00028
|
[1] |
BAND;PIPE
|
|
| 33. |
S5100603
|
[2] |
WASHER
|
|
| 34. |
S0558261
|
[2] |
BOLT;HEX
|
|
| 35. |
1.124-00030
|
[1] |
PIPE BAND ASS'Y
|
|
| 36. |
1.124-00028
|
[1] |
BAND;PIPE
|
|
| 37. |
S5100603
|
[2] |
WASHER
|
|
| 38. |
S0558261
|
[2] |
BOLT;HEX
|
|
| 39. |
140-00036
|
[1] |
PIPE ASS'Y-R
|
|
| 4. |
110-00085
|
[1] |
BUSH;STEEL
|
|
| 40. |
120-00159
|
[1] |
U-BOLT
|
|
| 41. |
S5100603
|
[2] |
WASHER
|
|
| 42. |
S4012633
|
[2] |
NUT
|
|
| 43. |
124-00060
|
[1] |
CLAMP;PIPE
|
|
| 44. |
S5100603
|
[2] |
WASHER
|
|
| 45. |
S0558761
|
[2] |
BOLT;HEX
|
|
| 46. |
S6710032
|
[1] |
NIPPLE;GREASE
|
|
| 5. |
1.430-00149
|
[1] |
COVER;ROD
|
|
| 6. |
110-00110
|
[1] |
DD-BUSH
|
|
| 7. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 8. |
180-00302
|
[1] |
SEAL;BUFFER
|
|
| 9. |
115-00097
|
[1] |
PACKING;U
|
|
