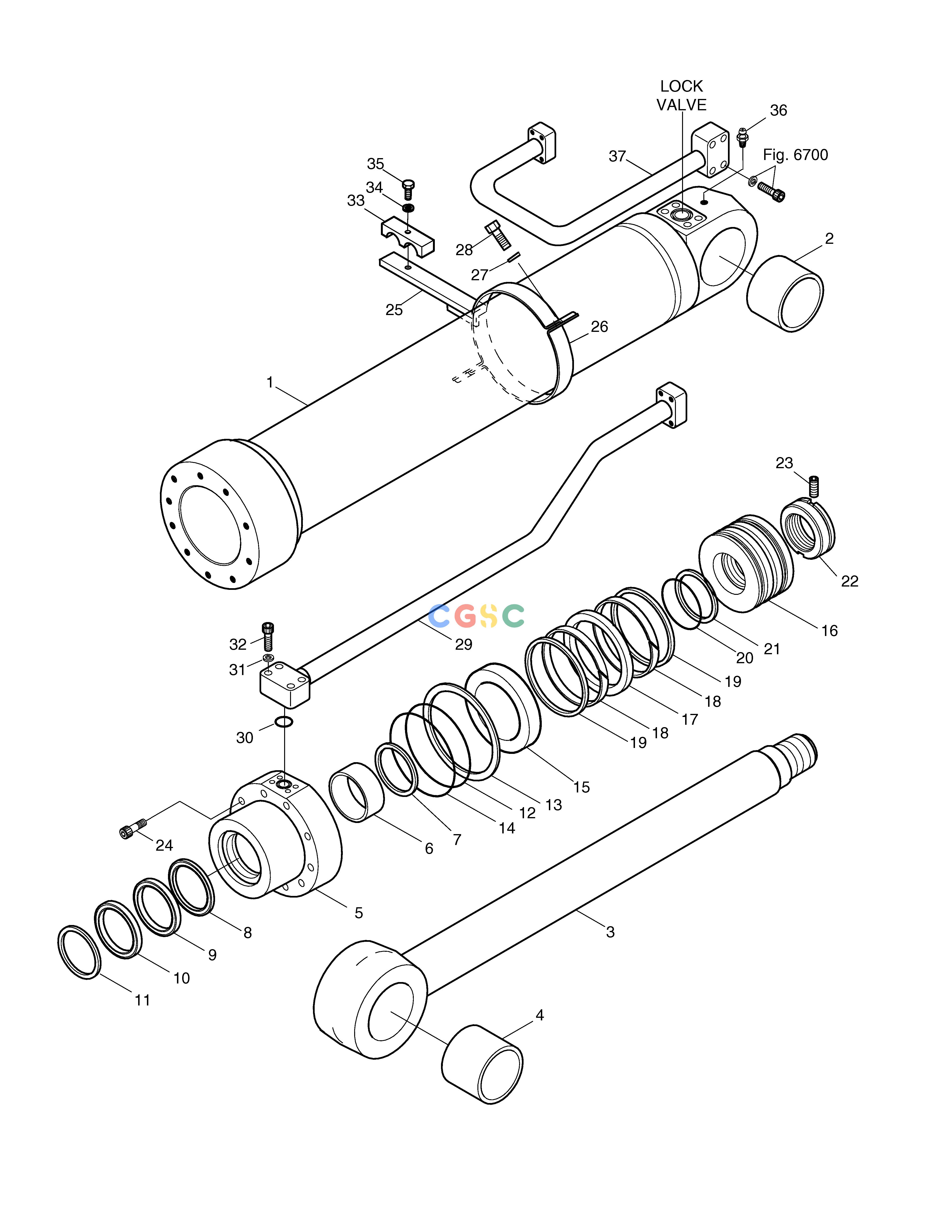

斗山零件查询BOOM CYLINDER(R.H)-LOCK VALVE SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
126 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9234KT
|
[1] |
SEAL KIT;BOOM CYL.
|
|
| -. |
2440-6495B
|
[1] |
CYLINDER;BOOM(R.H)
|
|
| 1. |
1.441-00151
|
[1] |
TUBE ASS'Y
|
|
| 10. |
115-00059
|
[1] |
WIPER;DUST
|
|
| 11. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 12. |
S8011151
|
[1] |
O-RING
|
|
| 13. |
180-00250
|
[1] |
RING;BACK UP
|
|
| 14. |
S8011201
|
[1] |
O-RING
|
|
| 15. |
415-00014
|
[1] |
RING;CUSHION
|
|
| 16. |
409-00015
|
[1] |
PISTON
|
|
| 17. |
180-00254
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
115-00055
|
[1] |
RING;WEAR
|
|
| 19. |
115-00053
|
[2] |
RING;SLYD
|
|
| 2. |
1.110-00137
|
[1] |
BUSH;STEEL
|
|
| 20. |
S8010651
|
[1] |
O-RING
|
|
| 21. |
180-00251
|
[2] |
RING;BACK UP
|
|
| 22. |
121-00046
|
[1] |
NUT;PISTION
|
|
| 23. |
S3523836
|
[1] |
SCREW;SET
|
|
| 24. |
S2222171
|
[10] |
BOLT
|
|
| 25. |
124-00061
|
[1] |
PIPE BAND ASS'Y
|
|
| 26. |
124-00054
|
[1] |
BAND;PIPE
|
|
| 27. |
S5100603
|
[2] |
WASHER
|
|
| 28. |
S0558153
|
[2] |
BOLT
|
|
| 29. |
1.140-00284
|
[1] |
PIPE ASS'Y-R
|
|
| 3. |
1.428-00112
|
[1] |
ROD ASS’Y
|
|
| 30. |
S8000281
|
[1] |
O-RING
|
|
| 31. |
S5100603
|
[4] |
WASHER
|
|
| 32. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 33. |
124-00058
|
[1] |
CLAMP;PIPE
|
|
| 34. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 35. |
S0561053
|
[1] |
BOLT
|
|
| 36. |
S6710032
|
[1] |
NIPPLE;GREASE
|
|
| 37. |
140-00034
|
[1] |
PIPE ASS'Y-H
|
|
| 4. |
1.110-00137
|
[1] |
BUSH;STEEL
|
|
| 5. |
1.430-00148
|
[1] |
COVER;ROD
|
|
| 6. |
110-00079
|
[1] |
DD-BUSH
|
|
| 7. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 8. |
180-00252
|
[1] |
SEAL;BUFFER
|
|
| 9. |
115-00057
|
[1] |
PACKING;U
|
|
