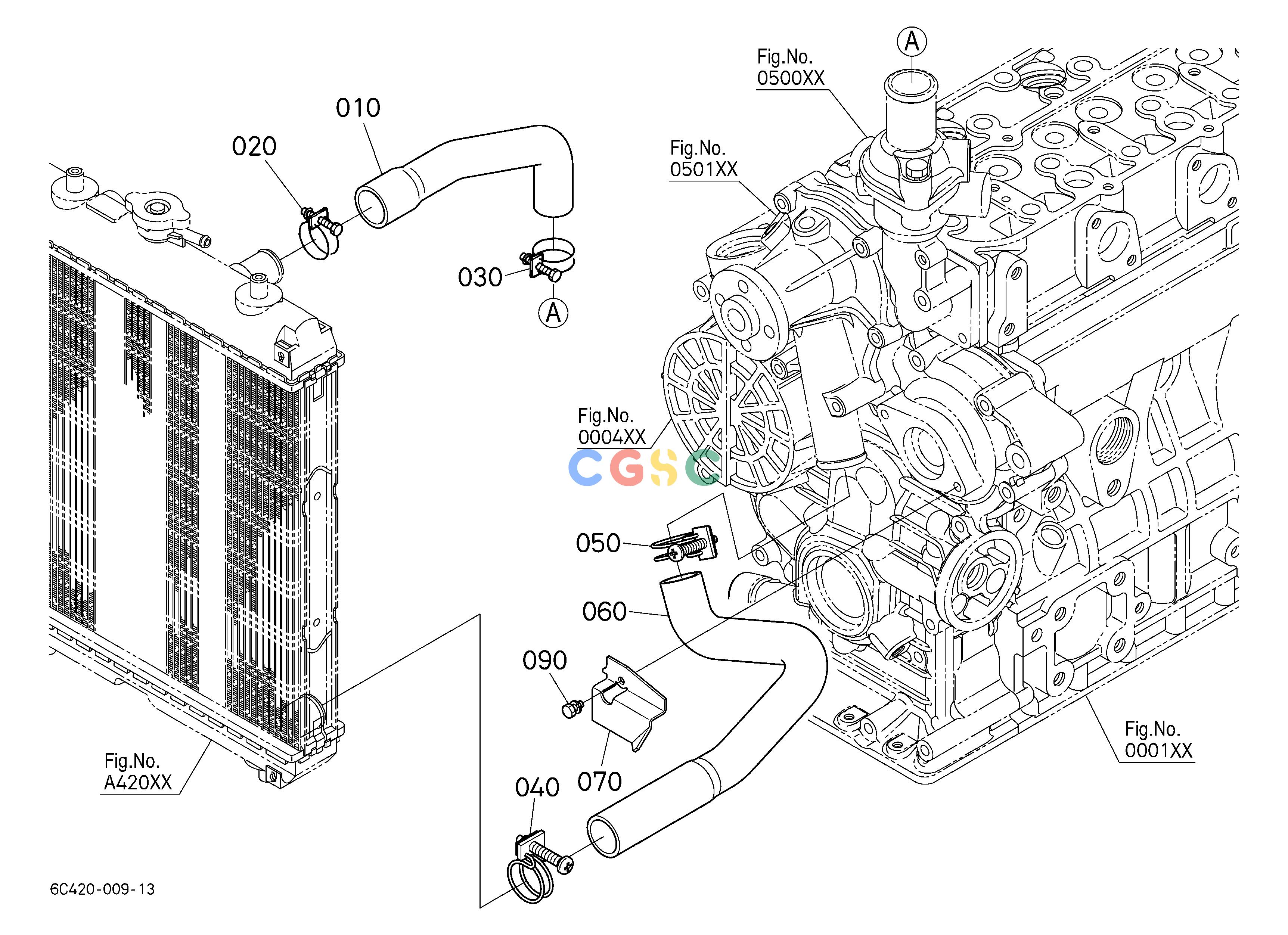

久保田零件查询A41001 WATER PIPE ## NOTE:ORDER BY REF.No.060 and REF.No.070 NEW PARTS. COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C42058630
|
[1] |
HOSE(WATER)
|
0.3806(lbs); 0.173
|
| 020. |
6795558630
|
[1] |
CLAMP,HOSE
|
0.0550(lbs); 0.025
|
| 030. |
6795558630
|
[1] |
CLAMP,HOSE
|
0.0550(lbs); 0.025
|
| 040. |
1510872870
|
[1] |
BAND
|
0.0594(lbs); 0.027
|
| 050. |
1510872870
|
[1] |
BAND
|
0.0594(lbs); 0.027
|
| 060. |
6C42058572
|
[1] |
HOSE(WATER)
|
0.4972(lbs); 0.226
|
| 060. |
6C42058573
|
[1] |
HOSE(WATER)
|
0.4972(lbs); 0.226
|
| 070. |
6C04058640
|
[1] |
CLAMP(WATER HOSE)
|
0.0682(lbs); 0.031
|
| 070. |
6C42058640
|
[1] |
CLAMP(WATER HOSE)
|
0.0660(lbs); 0.030
|
| 070. |
6C40058640
|
[1] |
CLAMP(WATER HOSE)
|
0.1760(lbs); 0.080
|
| 090. |
0102350616
|
[1] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 090. |
0102350612
|
[1] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
