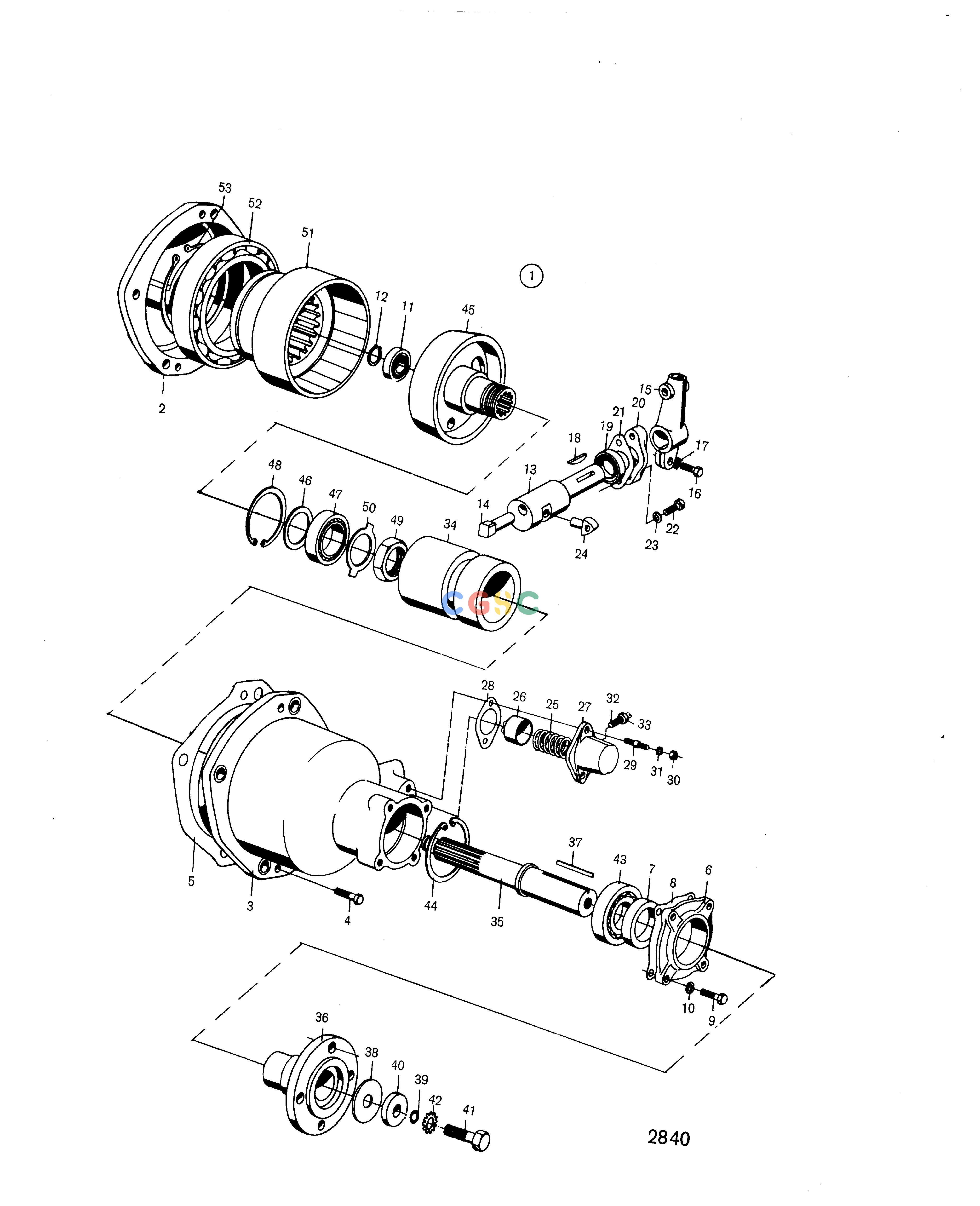

沃尔沃零件查询MD5A; MD5B; MD5CClutch, Elastic CouplingFriction ClutchEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
424 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
804743
|
[1] |
Friction clutch, friction clutch with reduction gear
|
Ratio 1,87:1
|
| 1. |
|
|
|
|
| 2. |
804726
|
[1] |
Spacer flange
|
|
| 3. |
|
|
|
|
| 4. |
940100
|
[2] |
Hexagon screw
|
|
| 5. |
803228
|
[1] |
Gasket
|
|
| 6. |
804730
|
[1] |
Sealing cover
|
|
| 7. |
803441
|
[1] |
Sealing ring
|
|
| 8. |
804731
|
[1] |
Gasket
|
|
| 9. |
955513
|
[4] |
Hexagon screw
|
|
| 10. |
941906
|
[4] |
Spring washer
|
|
| 11. |
11009
|
[1] |
Ball bearing
|
|
| 12. |
914449
|
[1] |
Snap ring
|
|
| 13. |
802725
|
[1] |
Shaft
|
|
| 14. |
802726
|
[1] |
Coupling pin
|
|
| 15. |
803647
|
[1] |
Lever
|
|
| 16. |
955296
|
[1] |
Hexagon screw
|
|
| 17. |
941907
|
[1] |
Spring washer
|
|
| 18. |
910119
|
[1] |
Woodruff key
|
|
| 19. |
803439
|
[1] |
Sealing ring
|
|
| 20. |
803020
|
[1] |
Flange
|
|
| 21. |
803101
|
[1] |
Gasket
|
|
| 22. |
955514
|
[2] |
Hexagon screw
|
|
| 23. |
941906
|
[2] |
Spring washer
|
|
| 24. |
802727
|
[1] |
Plunger
|
|
| 25. |
802730
|
[1] |
Coil spring
|
|
| 26. |
802728
|
[1] |
Block-up sleeve
|
|
| 27. |
802729
|
[1] |
Sleeve
|
|
| 28. |
803101
|
[1] |
Gasket
|
|
| 29. |
953451
|
[2] |
Stud
|
|
| 30. |
955825
|
[2] |
Hexagon nut
|
|
| 31. |
941906
|
[2] |
Spring washer
|
|
| 32. |
919119
|
[1] |
Set screw
|
|
| 33. |
955781
|
[1] |
Hexagon nut
|
|
| 34. |
804729
|
[1] |
Bearing sleeve
|
|
| 35. |
804728
|
[1] |
Shaft
|
|
| 36. |
802723
|
[1] |
Companion flange
|
|
| 37. |
909873
|
[1] |
Flat key
|
|
| 38. |
192031
|
[1] |
Gasket
|
|
| 39. |
190418
|
[1] |
O-ring
|
|
| 40. |
806199
|
[1] |
Washer
|
|
| 41. |
806181
|
[1] |
Screw
|
|
| 42. |
955953
|
[1] |
Toothed washer
|
(17905)
|
| 43. |
11024
|
[1] |
Ball bearing
|
|
| 44. |
914537
|
[1] |
Snap ring
|
|
| 45. |
804727
|
[1] |
Fitting
|
|
| 46. |
84217
|
[1] |
Shim
|
|
| 47. |
181105
|
[1] |
Ball bearing
|
|
| 48. |
914533
|
[1] |
Snap ring
|
|
| 49. |
906635
|
[1] |
Round nut
|
|
| 50. |
907025
|
[1] |
Lock washer
|
|
| 51. |
809117
|
[1] |
Gear
|
|
| 52. |
190802
|
[1] |
Ball bearing
|
|
| 53. |
914492
|
[1] |
Snap ring
|
|
