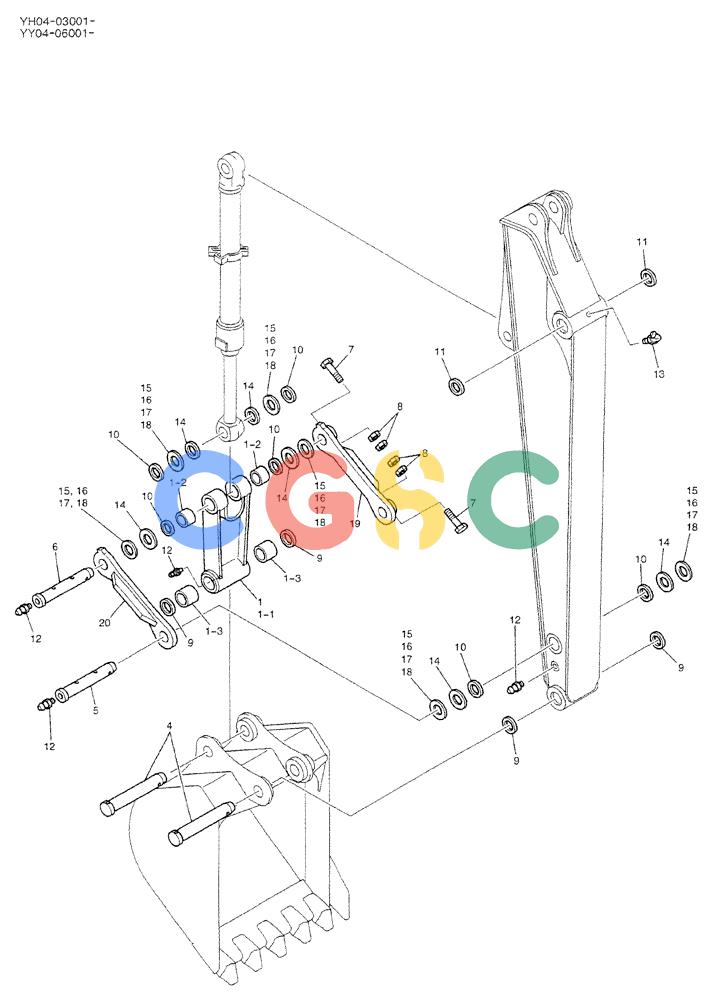

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-018) - ARM GROUP (YY12B00149F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
339 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY12B00149F2 | [1] | ARM | KOB |
| 1. | YY12B01249F1 | [1] | LINK | KOB |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONLINK, BUCKET |
| 1-2. | LP12B01031P1 | [2] | BUSHING | KOB |
| 1-3. | LP12B01036P1 | [2] | BUSHING | KOB |
| 4. | YY12B01242P1 | [2] | PIN | KOB |
| 5. | LP12B01028P1 | [1] | PIN | KOB Superseded by part number: YX12B01042P1 |
| 6. | LP12B01029P1 | [1] | PIN | KOB Superseded by part number: YX12B01042P1 |
| 7. | HS18C14115G2 | [2] | BOLT,Hex, M14 x 115mm, Cl 10.9 | KOBM14x2.0x150mm |
| 8. | ZN18C14011 | [4] | NUT | KOBM14x2.0mm |
| 9. | 2445R220D2 | [4] | SEAL,65mm ID x 80mm OD x 5mm Thk | KOBDust -- ID 65 x OD 80 x Th 5mm Superseded by part number: 84499663 |
| 10. | 2445R138D3 | [6] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 11. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 12. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 13. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 14. | YW12B01025P1 | [6] | SHIM,62mm ID x 100mm OD x 3mm Thk | KOBID 62 x OD 100 x Th 3.0mm |
| 15. | B16T0442D56 | [6] | SHIM,62mm ID x 100mm OD x 0.5mm Thk | KOBID 62 x OD 100 x Th 0.5mm |
| 16. | B16T0442D43 | [6] | SHIM,62mm ID x 100mm OD x 0.9mm Thk | KOBID 62 x OD 100 x Th 0.9mm |
| 17. | B16T0442D27 | [6] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOBID 62 x OD 100 x Th 1.2mm |
| 18. | B16T0442D19 | [6] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| 19. | YY12B01006P1 | [1] | LINK | KOB |
| 20. | YY12B01007P1 | [1] | LINK | KOB |
